UNITRONIC® FD CY
Shielded, highly flexible data cable with PVC outer sheath for power chain use

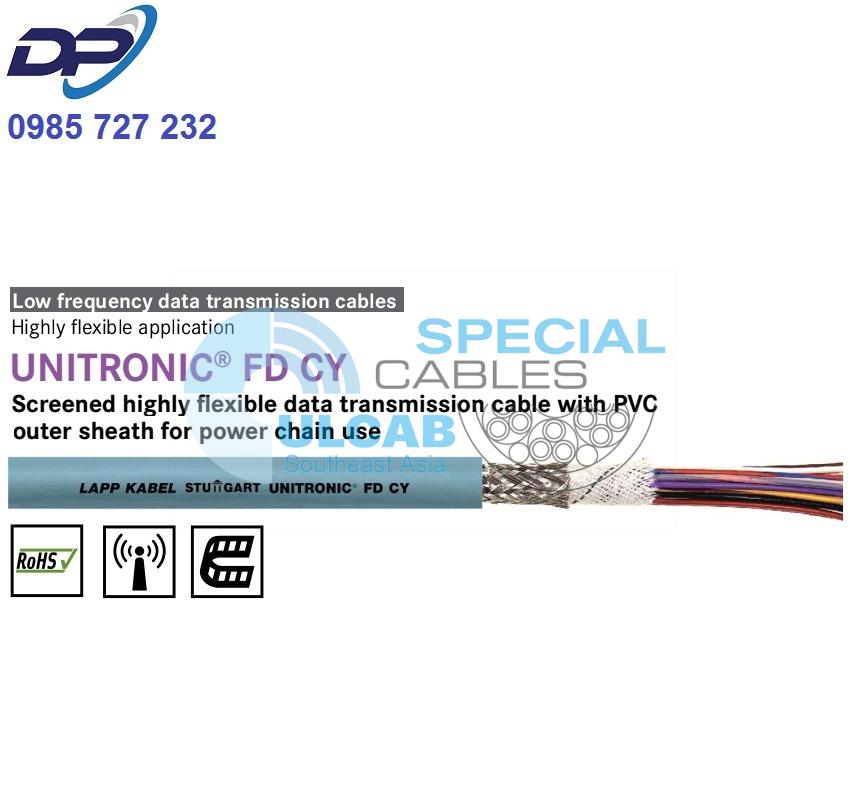

UNITRONIC® FD CY – shielded PVC data cable for versatile applications in power chains and permanently flexing applications
Benefits
- Tried-and-tested and reliable
- Optimised cable construction for power chain use
- Cost-effective version
- Overall shield minimises electrical
interference
Application range
- Automated production processes require data cables that offer increasingly higher flexibility, durability and excellent screening
- Suitable for use in measuring, control and regulating circuits
- Assembly and production lines, in all kinds of machines
Product features
- Low-adhesive surface
- Flame-retardant according to IEC 60332-1-2
- Designed for 2 to 8 million alternating bending cycles in the power chain
Norm references / approvals
- Based on VDE 0812
- For distances up to 10 m
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires
- Core insulation made of PVC
- Fleece wrapping
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- C/C approx. 110 nF/km
C/S: approx. 110 nF/km
Peak operating voltage
- (not for power applications)
350 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Strand, extra-fine wire
Minimum bending radius
- Flexing: 7.5 x outer diameter
- Fixed installation: 4 x outer diameter
Test voltage
- 1500 V
Temperature range
- Flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® FD CY | ||||
| 0027411 | 3 x 0.14 | 4.5 | 14.1 | 37 |
| 0027412 | 4 x 0.14 | 4.8 | 15.5 | 42 |
| 0027413 | 5 x 0.14 | 5.1 | 18.3 | 47 |
| 0027414 | 7 x 0.14 | 5.7 | 27.6 | 70 |
| 0027416 | 10 x 0.14 | 6.7 | 39.3 | 90 |
| 0027418 | 14 x 0.14 | 6.8 | 45.3 | 106 |
| 0027420 | 18 x 0.14 | 7.4 | 54.1 | 123 |
| 0027422 | 25 x 0.14 | 8.9 | 68.4 | 163 |
| 0027425 | 2 x 0.25 | 4.9 | 14.9 | 39 |
| 0027426 | 3 x 0.25 | 5.1 | 18.8 | 46 |
| 0027427 | 4 x 0.25 | 5.5 | 21.3 | 53 |
| 0027428 | 5 x 0.25 | 5.9 | 31 | 71 |
| 0027429 | 7 x 0.25 | 6.7 | 39.6 | 75 |
| 0027431 | 10 x 0.25 | 8.2 | 53.9 | 114 |
| 0027434 | 14 x 0.25 | 8.3 | 64.2 | 141 |
| 0027436 | 18 x 0.25 | 9.1 | 78.4 | 167 |
| 0027438 | 25 x 0.25 | 11 | 101 | 221 |
| 0027440 | 2 x 0.34 | 5.3 | 16.1 | 47 |
| 0027441 | 3 x 0.34 | 5.6 | 28.7 | 63 |
| 0027442 | 4 x 0.34 | 6 | 35.7 | 81 |
| 0027443 | 5 x 0.34 | 6.5 | 39.1 | 89 |
| 0027444 | 7 x 0.34 | 7.4 | 52.7 | 117 |
| 0027446 | 10 x 0.34 | 9.1 | 67.4 | 155 |
| 0027448 | 14 x 0.34 | 9.2 | 85.3 | 194 |
| 0027450 | 18 x 0.34 | 10.3 | 99.7 | 225 |
| 0027452 | 25 x 0.34 | 12.5 | 155 | 327 |
