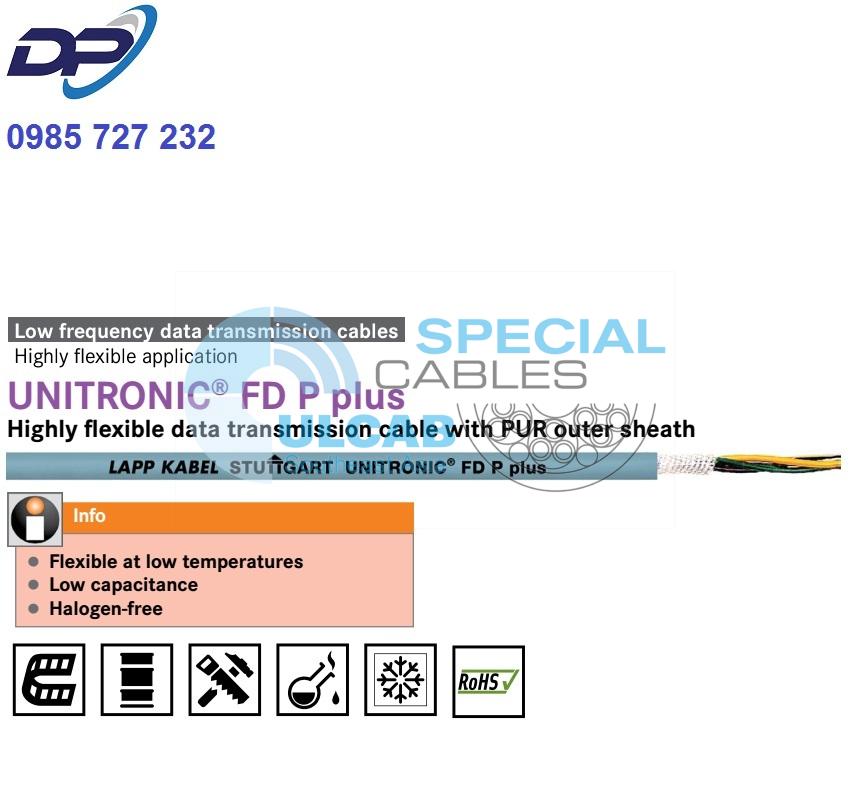

UNITRONIC® FD P plus
Highly flexible data cable with PUR sheath and AWM certification for use in the US and Canada
UNITRONIC® FD P plus – PUR data cable for versatile applications in power chains and permanently flexing applications and harsh environmental conditions
- Flexible at cold temperatures
- Low capacitance
- Halogen-free
Benefits
- Tried-and-tested and reliable
- Wide temperature range for applications in harsh climatic environments
- UL AWM nominal voltage 1000V for internal, protected wiring allows internal laying directly next to power cables with applied UL nominal voltage of 1kV
- In the USA inside of industrial machines, according to NFPA 79, 2015 ed., 12.9.2 (exception 3 under 12.9.2: Up to 1 mm² and <16 AWG)
Application range
- Highly flexible data cable with PUR outer sheath, meets the highest service life requirements, even under harsh climatic conditions.
- Suitable for use in measuring, control and regulating circuits
- Drag chain use – in case of horizontal installation travel distances up to 100 m
- For use in drag chains: Please observe the assembly guidelines in table T3
Product features
- PUR outer sheath, tear- and notch-resistant, resistant to mineral oils and abrasion when used in power chains
- Flame retardance: ratings: IEC 60332-1-2, FT2 (Horizontal Flame Test)
- Halogen-free, low capacitance and flexible at temperatures as low as -40°C
- Oil-resistant
- Low-adhesive surface, resistant to hydrolysis and microbes, oil-resistant
Norm references / approvals
- Based on VDE 0812
- cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II
Design
- Extra-fine wire strand made of bare copper wires
- Polyolefin-based core insulation
- Fleece wrapping
- Outer sheath made of special PUR compound
Outer sheath colour: grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- C/C approx. 60 nF/km
Peak operating voltage
- Peak: 250 V (not for power use or continuous operating voltage to ground above 49 VAC or 74 VDC)
Inductance
- approx. 0.65 mH/km
Conductor design
- Strand, extra-fine wire
Minimum bending radius
- Flexing: 5 x outer diameter
- Fixed installation: 3 x outer diameter
Test voltage
- 1500 V
Temperature range
- Flexing: -40°C to +80°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | AWG size | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® FD P plus | |||||
| 0028650 | 3 x 0.14 | 26 AWG | 3.9 | 4.1 | 25 |
| 0028651 | 4 x 0.14 | 26 AWG | 4.2 | 5.6 | 30 |
| 0028652 | 5 x 0.14 | 26 AWG | 4.5 | 7 | 34 |
| 0028653 | 7 x 0.14 | 26 AWG | 5.1 | 9.8 | 48 |
| 0028654 | 10 x 0.14 | 26 AWG | 6.1 | 14 | 60 |
| 0028655 | 14 x 0.14 | 26 AWG | 6.2 | 19.6 | 74 |
| 0028656 | 18 x 0.14 | 26 AWG | 6.8 | 25.2 | 87 |
| 0028657 | 25 x 0.14 | 26 AWG | 8.3 | 35 | 120 |
| 0028658 | 2 x 0.25 | 24 AWG | 4.3 | 5 | 27 |
| 0028659 | 3 x 0.25 | 24 AWG | 4.5 | 7.5 | 32 |
| 0028660 | 4 x 0.25 | 24 AWG | 4.9 | 10 | 39 |
| 0028661 | 5 x 0.25 | 24 AWG | 5.3 | 12.5 | 49 |
| 0028662 | 7 x 0.25 | 24 AWG | 6.3 | 17.5 | 61 |
| 0028663 | 10 x 0.25 | 24 AWG | 7.4 | 25 | 80 |
| 0028664 | 14 x 0.25 | 24 AWG | 7.5 | 35 | 103 |
| 0028665 | 18 x 0.25 | 24 AWG | 8.5 | 45 | 125 |
| 0028666 | 25 x 0.25 | 24 AWG | 10.4 | 62.5 | 171 |
| 0028667 | 2 x 0.34 | 22 AWG | 4.7 | 6.8 | 33 |
| 0028668 | 3 x 0.34 | 22 AWG | 5 | 10.2 | 41 |
| 0028669 | 4 x 0.34 | 22 AWG | 5.4 | 13.6 | 55 |
| 0028670 | 5 x 0.34 | 22 AWG | 5.9 | 17 | 62 |
| 0028671 | 7 x 0.34 | 22 AWG | 6.8 | 23.8 | 80 |
| 0028672 | 10 x 0.34 | 22 AWG | 8.5 | 34 | 110 |
| 0028673 | 14 x 0.34 | 22 AWG | 8.6 | 47.6 | 144 |
| 0028674 | 18 x 0.34 | 22 AWG | 9.7 | 61.2 | 175 |
| 0028675 | 25 x 0.34 | 22 AWG | 11.9 | 85 | 239 |
