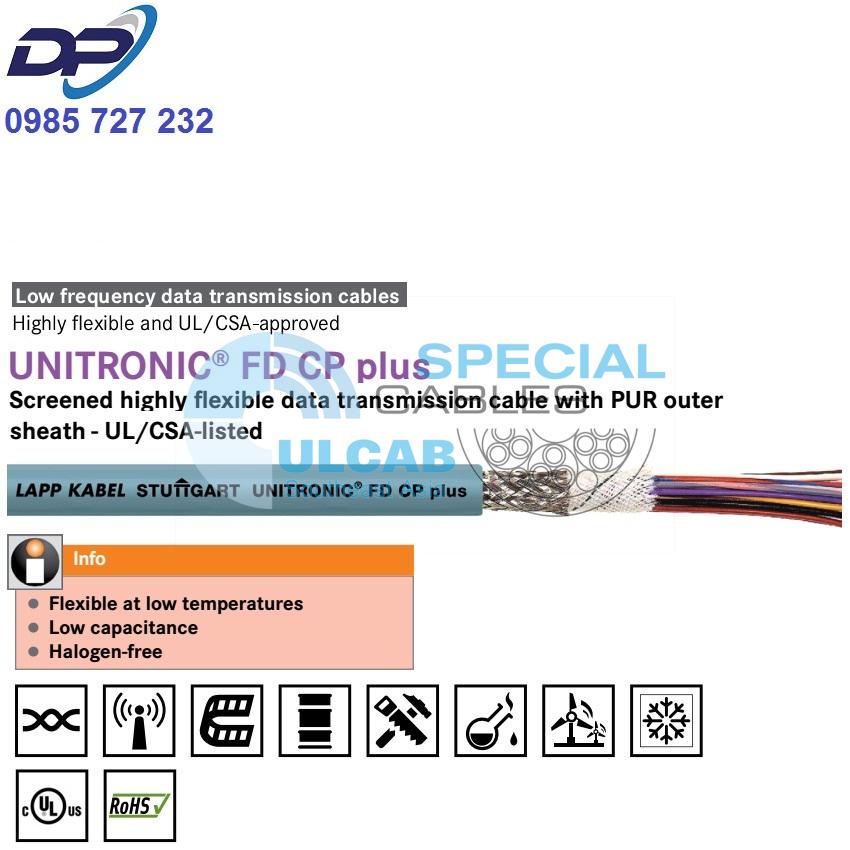

UNITRONIC® FD CP plus
Shielded highly flexible data cable with PUR outer sheath – UL/CSA-listed
UNITRONIC® FD CP plus – shielded PUR data cable, UL/CSA CMX listed, for permanently flexing applications and harsh environmental conditions
- Flexible at cold temperatures
- Low capacitance
- Halogen-free
Benefits
- Wide temperature range for applications in harsh climatic environments
- Overall shield minimises electrical
interference - UL AWM nominal voltage 1000V for internal, protected wiring allows internal laying directly next to power cables with applied UL nominal voltage of 1kV
- In the USA inside of industrial machines, according to NFPA 79, 2015 ed., 12.9.2 (exception 3 under 12.9.2: Up to 1 mm² and <16 AWG)
Application range
- Suitable for use in measuring, control and regulating circuits
- Drag chain use – in case of horizontal installation travel distances up to 100 m
- For use in drag chains: Please observe the assembly guidelines in table T3
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
- Halogen-free, low capacitance and flexible at temperatures as low as -40°C
- PUR outer sheath, tear- and notch-resistant, resistant to mineral oils and abrasion when used in power chains
- Low-adhesive surface, resistant to hydrolysis and microbes, oil-resistant
- Flame retardance: IEC 60332-1-2, VW-1, FT2
- Designed for 5 to 10 million alternating bending cycles in the drag chain
Norm references / approvals
- cULus CMX certified by UL (UL: E236660)
- cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II
Design
- Extra-fine wire strand made of bare copper wires
- Polyolefin-based core insulation
- Fleece wrapping
- Tin-plated copper braiding
- Outer sheath made of special PUR compound
Outer sheath colour: grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- C/C approx. 60 nF/km
Peak operating voltage
- Peak: 250 V (not for power use or continuous operating voltage to ground above 49 VAC or 74 VDC)
Inductance
- approx. 0.65 mH/km
Conductor design
- Strand, extra-fine wire
Torsion application in WTG
- TW-0 & TW-2, refer to appendix T0
Minimum bending radius
- Flexing: 7.5 x outer diameter
- Fixed installation: 4 x outer diameter
Test voltage
- Core/Core: 1500 V eff.
- Core/Shield: 500 V
Temperature range
- Flexing: -40°C to +80°C
- Fixed installation: -40°C to +80°C
cULus CMX: +75°C
cULus AWM: +80 °C
| Article number | Number of cores and mm² per conductor | AWG size | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® FD CP plus | |||||
| 0028880 | 2 x 0.14 | 26 AWG | 4.3 | 11.2 | 33 |
| 0028881 | 3 x 0.14 | 26 AWG | 4.5 | 14.1 | 36 |
| 0028882 | 4 x 0.14 | 26 AWG | 4.8 | 15.5 | 40 |
| 0028883 | 5 x 0.14 | 26 AWG | 5.1 | 18.3 | 45 |
| 0028884 | 7 x 0.14 | 26 AWG | 5.7 | 27.8 | 67 |
| 0028885 | 10 x 0.14 | 26 AWG | 6.7 | 39.3 | 87 |
| 0028886 | 14 x 0.14 | 26 AWG | 6.8 | 45.3 | 102 |
| 0028887 | 18 x 0.14 | 26 AWG | 7.4 | 54.1 | 118 |
| 0028888 | 25 x 0.14 | 26 AWG | 8.9 | 68.4 | 157 |
| 0028889 | 2 x 0.25 | 24 AWG | 4.9 | 14.9 | 38 |
| 0028890 | 3 x 0.25 | 24 AWG | 5.1 | 18.8 | 45 |
| 0028891 | 4 x 0.25 | 24 AWG | 5.5 | 21.3 | 52 |
| 0028892 | 5 x 0.25 | 24 AWG | 5.9 | 31 | 69 |
| 0028893 | 7 x 0.25 | 24 AWG | 6.7 | 39.6 | 84 |
| 0028894 | 10 x 0.25 | 24 AWG | 8.2 | 53.9 | 109 |
| 0028895 | 14 x 0.25 | 24 AWG | 8.3 | 64.2 | 136 |
| 0028896 | 18 x 0.25 | 24 AWG | 9.1 | 78.4 | 161 |
| 0028897 | 25 x 0.25 | 24 AWG | 11 | 101 | 213 |
| 0028898 | 2 x 0.34 | 22 AWG | 5.3 | 18.1 | 45 |
| 0028899 | 3 x 0.34 | 22 AWG | 5.6 | 28.7 | 61 |
| 0028900 | 4 x 0.34 | 22 AWG | 6 | 35.7 | 77 |
| 0028901 | 5 x 0.34 | 22 AWG | 6.5 | 39.1 | 83 |
| 0028902 | 7 x 0.34 | 22 AWG | 7.4 | 52.7 | 109 |
| 0028903 | 10 x 0.34 | 22 AWG | 9.1 | 67.4 | 147 |
| 0028904 | 14 x 0.34 | 22 AWG | 9.2 | 85.8 | 186 |
| 0028905 | 18 x 0.34 | 22 AWG | 10.3 | 99.7 | 216 |
| 0028906 | 25 x 0.34 | 22 AWG | 12.5 | 155 | 314 |
