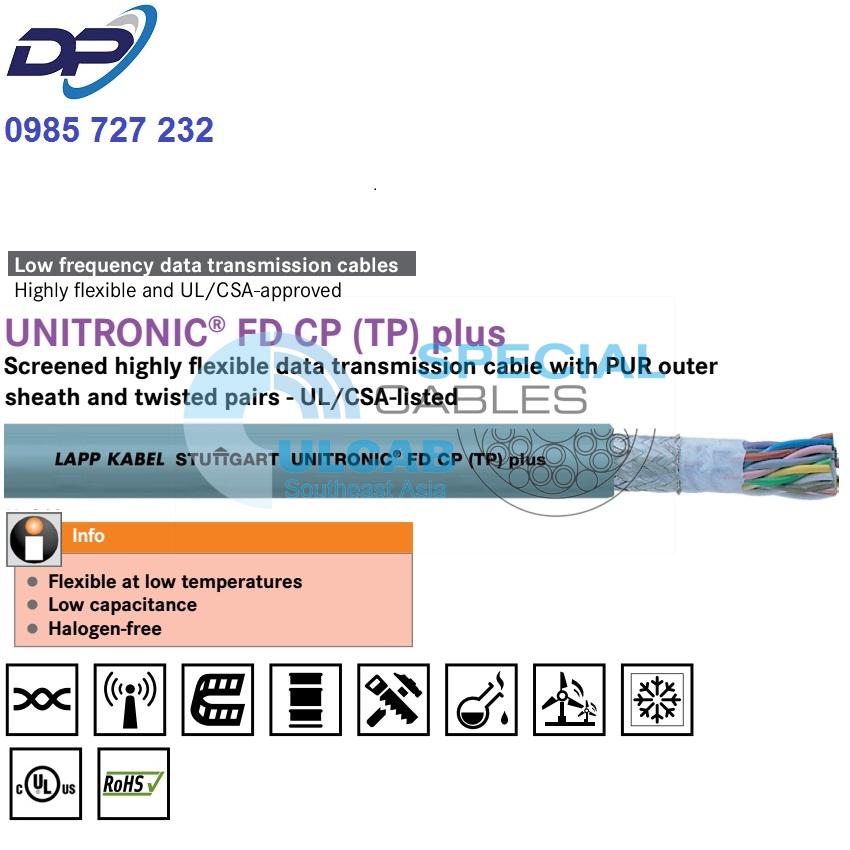

UNITRONIC® FD CP (TP) plus

Shielded highly flexible data cable with PUR outer sheath and twisted pairs – UL/CSA-listed

UNITRONIC® FD CP (TP) plus – shielded PUR data cable twisted in pairs, UL/CSA CMX listed, for permanently flexing applications and harsh environmental conditions

  • Flexible at cold temperatures
  • Low capacitance
  • Halogen-free

Torsion-resistant Interference signals Power chain Oil-resistant Mechanical resistance Halogen-free Wind Energy Cold-resistant

Benefits

  • Wide temperature range for applications in harsh climatic environments
  • Decoupling of circuits by means of
    twisted-pair (TP) design (crosstalk effects)
  • UL AWM nominal voltage 1000V for internal, protected wiring allows internal laying directly next to power cables with applied UL nominal voltage of 1kV
  • In the USA inside of industrial machines, according to NFPA 79, 2015 ed., 12.9.2 (exception 3 under 12.9.2: Up to 1 mm² and <16 AWG)

Application range

  • Suitable for use in measuring, control and regulating circuits
  • Linear robot, automated handling equipment
  • Drag chain use – in case of horizontal installation travel distances up to 100 m
  • For use in drag chains: Please observe the assembly guidelines in table T3
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

  • Halogen-free, low capacitance and flexible at temperatures as low as -40°C
  • PUR outer sheath, tear- and notch-resistant, resistant to mineral oils and abrasion when used in power chains
  • Low-adhesive surface, resistant to hydrolysis and microbes, oil-resistant
  • Flame retardance: IEC 60332-1-2, VW-1, FT2
  • Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 metres

Norm references / approvals

  • cULus CMX certified by UL (UL: E236660)
  • cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II

Design

  • Extra-fine wire strand made of bare copper wires
  • Polyolefin-based core insulation
    Twisted pair (TP) structure
  • Fleece wrapping
  • Tin-plated copper braiding
  • Outer sheath made of special PUR compound
    Outer sheath colour: grey (RAL 7001)

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • DIN 47100, refer to appendix T9

Operating capacitance

  • Up to 0.5 mm²: 60 nF/km
  • Up to 1.0 mm²: 70 nF/km

Peak operating voltage

  • Peak: 250 V (not for power use or continuous operating voltage to ground above 49 VAC or 74 VDC)

Inductance

  • approx. 0.65 mH/km

Conductor design

  • Strand, extra-fine wire
  • From 0.5 mm²: extra-fine wire IEC 60228 class 6

Torsion application in WTG

  • TW-0 & TW-2, refer to appendix T0

Minimum bending radius

  • Flexing: 7.5 x outer diameter
  • Fixed installation: 4 x outer diameter

Test voltage

  • Core/Core: 1500 V eff.
  • Core/Shield: 500 V

Temperature range

  • Flexing: -40°C to +80°C
  • Fixed installation: -40°C to +80°C
    cULus CMX: +75°C
    cULus AWM: +80 °C
Article number Number of cores and mm² per conductor Outer diameter (mm) Copper index (kg/km) Weight (kg/km)
UNITRONIC® FD CP (TP) plus
0030910 2 x 2 x 0.14 5.9 19.4 42
0030911 3 x 2 x 0.14 6.2 23.4 53
0030912 4 x 2 x 0.14 6.7 27.1 59
0030913 5 x 2 x 0.14 7.3 37.4 75
0030914 6 x 2 x 0.14 7.5 49.4 91
0030915 8 x 2 x 0.14 8.8 54.8 109
0030916 10 x 2 x 0.14 10.1 60.1 120
0030962 1 x 2 x 0.25 4.7 14 27
0030919 2 x 2 x 0.25 6.6 32 60
0030920 3 x 2 x 0.25 7 38.4 72
0030921 4 x 2 x 0.25 7.6 43.2 85
0030922 5 x 2 x 0.25 8.5 51.5 103
0030923 6 x 2 x 0.25 8.8 71.8 131
0030924 8 x 2 x 0.25 10.3 74.4 155
0030925 10 x 2 x 0.25 11.8 90 186
0030926 14 x 2 x 0.25 12 111.2 219
0030963 1 x 2 x 0.34 5.1 20 36
0030928 2 x 2 x 0.34 7.3 41 81
0030929 3 x 2 x 0.34 8 52 101
0030930 4 x 2 x 0.34 8.7 59 119
0030932 6 x 2 x 0.34 10 86.2 165
0030934 10 x 2 x 0.34 13.7 131.1 274
0030964 1 x 2 x 0.5 5.5 22 47
0030937 2 x 2 x 0.5 8.3 50 99
0030938 3 x 2 x 0.5 8.8 71.8 130
0030939 4 x 2 x 0.5 9.8 74.4 148
0030940 5 x 2 x 0.5 10.7 84.5 168
0030941 6 x 2 x 0.5 11.3 99.6 194
0030942 8 x 2 x 0.5 13.2 144.3 284
0030943 10 x 2 x 0.5 15.2 176 343
0030944 14 x 2 x 0.5 15.5 215.4 401
0030965 1 x 2 x 0.75 5.9 34 61
0030946 2 x 2 x 0.75 9 60 112
0030947 3 x 2 x 0.75 9.8 85.7 157
0030948 4 x 2 x 0.75 10.7 93.6 172
0030950 6 x 2 x 0.75 12.3 130.4 231
0030951 8 x 2 x 0.75 14.7 192.2 342
0030952 10 x 2 x 0.75 16.7 258 466
0030953 14 x 2 x 0.75 17 316.6 545
0030955 1 x 2 x 1 6.3 42 71
0030956 2 x 2 x 1 9.9 73 129
0030957 3 x 2 x 1 10.5 93.6 169
0030958 4 x 2 x 1 11.8 117.8 204
0030959 5 x 2 x 1 13.1 139 237
