UNITRONIC® Li2YCY (TP)

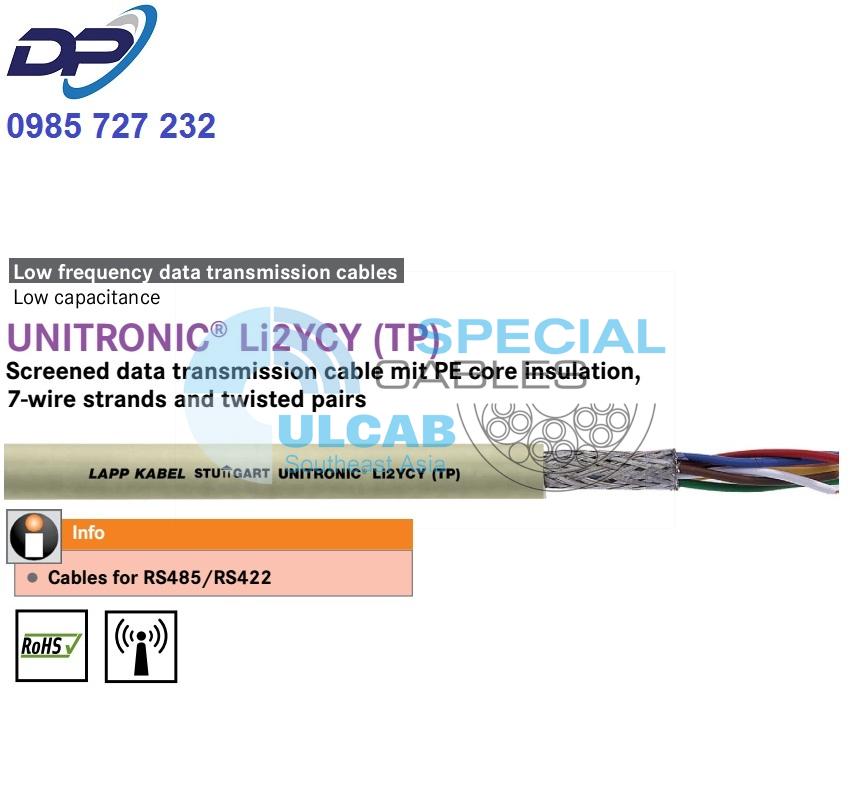

Shielded data cable with PE core insulation, 7-wire conductor design and twisted in pairs
UNITRONIC® Li2YCY (TP) – shielded PVC data cable with twisted pairs, ideal for wiring for RS422 and RS485 interfaces
Cables for RS485/RS422
Benefits
- 7-wire braided conductor (UNITRONIC® Li2YCY (TP) and UNITRONIC® Li2YCYv (TP)) can be used for Maxi TERMI-POINT® wiring
- Overall shield minimises electrical
interference - Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
Application range
- Particularly suitable for wiring data systems with transmission rates up to 10 megabits per second, and is suitable for the RS422 and RS485 interfaces.
- For fixed and limited flexible installation
- Can be used in dry or damp rooms
- Signal, control and measuring cable, for transmission of weak, sensitive signals and high bit rates
- UNITRONIC®
Li2YCYv (TP) with its reinforced, nominal/ minimum average wall thickness of at least 1.8 mm of the black outer sheath (Yv) is designed for indoor and outdoor use as well as for applications where a reinforced outer sheath may turn out to be advantageous
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- 7-wire strand made of bare copper wires
- Core insulation made of polyethylene (PE)
- Twisted pair (TP) structure
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- At 800 Hz: max. 60 nF/km
Peak operating voltage
- (not for power applications)
250 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Stranded wire, based on VDE 0881, 7-wire
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Short-range crosstalk attenuation
- Up to 1 MHz min. 50 dB
- Up to 10 MHz min. 40 dB
Test voltage
- Core/Core: 2000 V
- Core/Shield: 1000 V
Characteristic impedance
- 100 ±15 ohm (> 1 MHz)
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® Li2YCY (TP) | ||||
| 0031320 | 2 x 2 x 0.22 | 6.5 | 24.2 | 59 |
| 0031321 | 3 x 2 x 0.22 | 7.1 | 28.6 | 66 |
| 0031322 | 4 x 2 x 0.22 | 7.3 | 34.2 | 78 |
| 0031323 | 8 x 2 x 0.22 | 9.1 | 70 | 125 |
| 0031324 | 10 x 2 x 0.22 | 10.4 | 76 | 143 |
| 0031335 | 1 x 2 x 0.34 | 5.8 | 20 | 44 |
| 0031325 | 2 x 2 x 0.34 | 7.7 | 34.1 | 79 |
| 0031326 | 3 x 2 x 0.34 | 8.4 | 43 | 89 |
| 0031327 | 4 x 2 x 0.34 | 8.7 | 47 | 101 |
| 0031328 | 8 x 2 x 0.34 | 11 | 85.8 | 176 |
| 0031336 | 1 x 2 x 0.5 | 6.3 | 29 | 53 |
| 0031330 | 2 x 2 x 0.5 | 8.5 | 37 | 85 |
| 0031331 | 3 x 2 x 0.5 | 9.3 | 55 | 105 |
| 0031332 | 4 x 2 x 0.5 | 9.6 | 60 | 122 |
| 0031333 | 8 x 2 x 0.5 | 12.7 | 113.3 | 213 |
| 0031334 | 10 x 2 x 0.5 | 14.8 | 154 | 261 |
