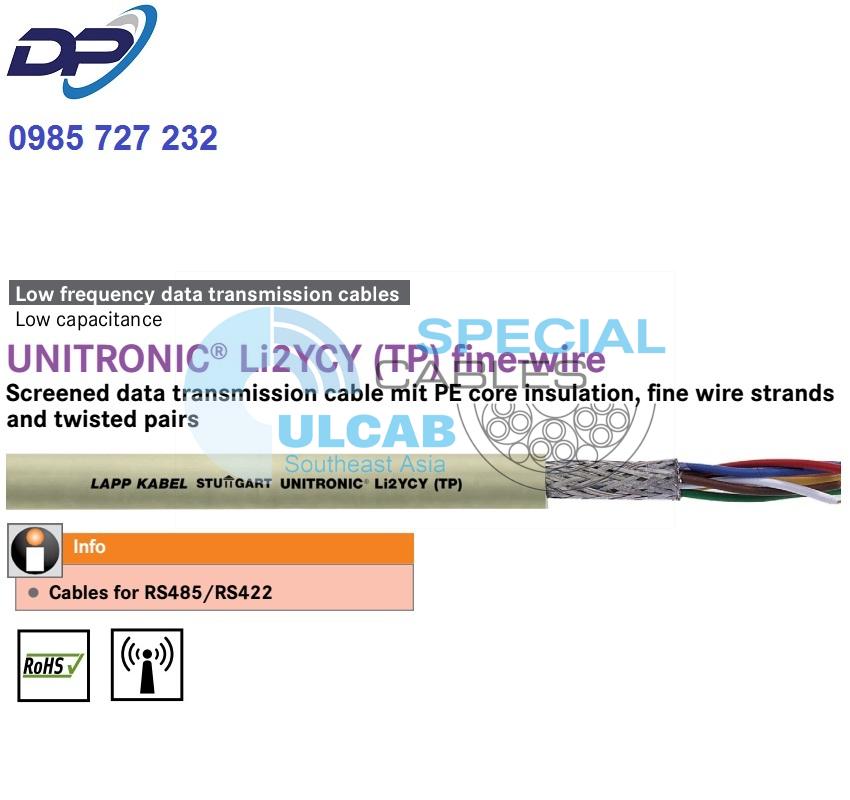

UNITRONIC® Li2YCY (TP) fine-wire
Shielded data cable with PE core insulation, fine-wire conductor design and twisted in pairs
UNITRONIC® Li2YCY (TP) fine-wire – shielded PVC data cable with twisted pairs, ideal for wiring in measurement, control and regulation technology
Cables for RS485/RS422
Benefits
- 7-wire braided conductor (UNITRONIC® Li2YCY (TP) and UNITRONIC® Li2YCYv (TP)) can be used for Maxi TERMI-POINT® wiring
- Overall shield minimises electrical
interference - Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
Application range
- Particularly suitable for wiring data systems with transmission rates up to 10 megabits per second, and is suitable for the RS422 and RS485 interfaces.
- For fixed and limited flexible installation
- Can be used in dry or damp rooms
- Signal, control and measuring cable, for transmission of weak, sensitive signals and high bit rates
- UNITRONIC®
Li2YCYv (TP) with its reinforced, nominal/ minimum average wall thickness of at least 1.8 mm of the black outer sheath (Yv) is designed for indoor and outdoor use as well as for applications where a reinforced outer sheath may turn out to be advantageous
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- Finely stranded bare copper wires
- Core insulation made of polyethylene (PE)
- Twisted pair (TP) structure
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- At 800 Hz: max. 60 nF/km
Peak operating voltage
- (not for power applications)
250 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Strand, fine-wire
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Short-range crosstalk attenuation
- Up to 1 MHz min. 50 dB
- Up to 10 MHz min. 40 dB
Test voltage
- Core/Core: 2000 V
- Core/Shield: 1000 V
Characteristic impedance
- 100 ±15 ohm (> 1 MHz)
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® Li2YCY (TP) fine-wire | ||||
| 0031370 | 1 x 2 x 0.25 | 5.7 | 14 | 38 |
| 0031371 | 2 x 2 x 0.25 | 6.9 | 28 | 56 |
| 0031372 | 3 x 2 x 0.25 | 7.5 | 39.6 | 64 |
| 0031373 | 5 x 2 x 0.25 | 8.3 | 50 | 93 |
