UNITRONIC® Li2YCYv (TP)
Shielded data cable with PE core insulation, reinforced outer sheath and twisted in pairs

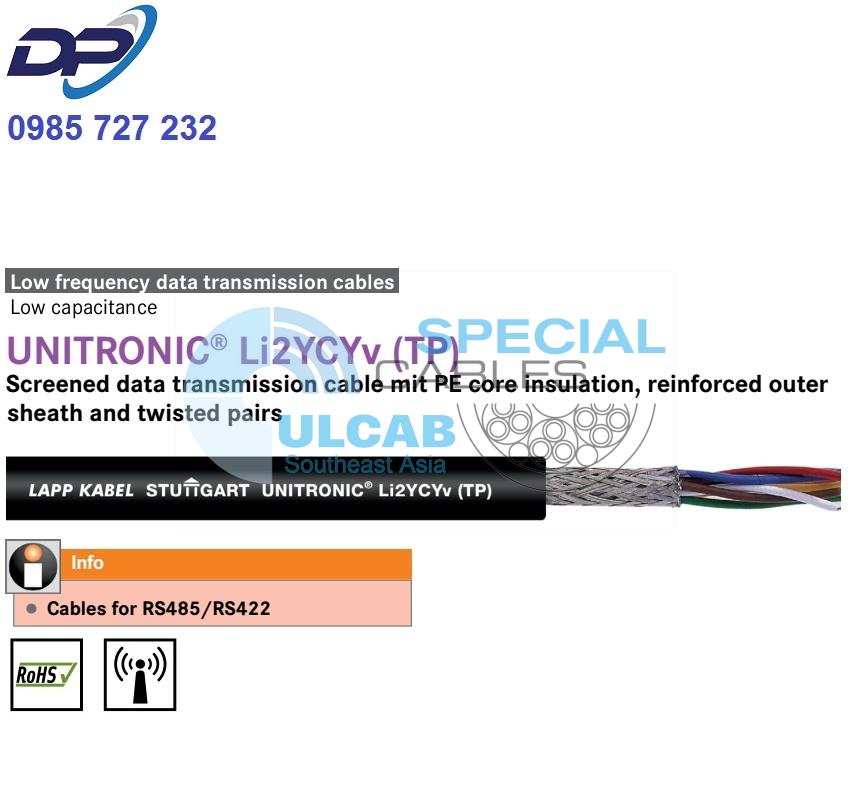

UNITRONIC® Li2YCYv (TP) – shielded PVC data cable in twisted pairs, with black, reinforced sheath suitable for outdoor installation
Cables for RS485/RS422
Benefits
- 7-wire braided conductor (UNITRONIC® Li2YCY (TP) and UNITRONIC® Li2YCYv (TP)) can be used for Maxi TERMI-POINT® wiring
- Overall shield minimises electrical
interference - Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
Application range
- Particularly suitable for wiring data systems with transmission rates up to 10 megabits per second, and is suitable for the RS422 and RS485 interfaces.
- For fixed and limited flexible installation
- Can be used in dry or damp rooms
- Signal, control and measuring cable, for transmission of weak, sensitive signals and high bit rates
- UNITRONIC®
Li2YCYv (TP) with its reinforced, nominal/ minimum average wall thickness of at least 1.8 mm of the black outer sheath (Yv) is designed for indoor and outdoor use as well as for applications where a reinforced outer sheath may turn out to be advantageous
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- 7-wire strand made of bare copper wires
- Core insulation made of polyethylene (PE)
- Twisted pair (TP) structure
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032) - Wall thickness of the outer sheath is increased/reinforced (“Yv“)
- Outer sheath colour: black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- At 800 Hz: max. 60 nF/km
Peak operating voltage
- (not for power applications)
250 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Stranded wire, based on VDE 0881, 7-wire
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Short-range crosstalk attenuation
- Up to 1 MHz min. 50 dB
- Up to 10 MHz min. 40 dB
Test voltage
- Core/Core: 2000 V
- Core/Shield: 1000 V
Characteristic impedance
- 100 ±15 ohm (> 1 MHz)
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® Li2YCYv (TP) black for outdoor installation and direct burial, 7-wire | ||||
| 0031350 | 2 x 2 x 0.22 | 8.1 | 24.2 | 79 |
| 0031351 | 3 x 2 x 0.22 | 8.7 | 28.6 | 93 |
| 0031352 | 4 x 2 x 0.22 | 8.9 | 34.2 | 100 |
| 0031353 | 8 x 2 x 0.22 | 10.7 | 70 | 156 |
| 0031354 | 10 x 2 x 0.22 | 12 | 76 | 185 |
| 0031365 | 1 x 2 x 0.34 | 7.4 | 20 | 69 |
| 0031355 | 2 x 2 x 0.34 | 9.3 | 34.1 | 102 |
| 0031356 | 3 x 2 x 0.34 | 10 | 43 | 117 |
| 0031357 | 4 x 2 x 0.34 | 10.3 | 52.8 | 130 |
| 0031358 | 8 x 2 x 0.34 | 12.6 | 85.8 | 206 |
| 0031366 | 1 x 2 x 0.5 | 7.9 | 29 | 79 |
| 0031360 | 2 x 2 x 0.5 | 10.1 | 37 | 120 |
| 0031361 | 3 x 2 x 0.5 | 10.9 | 55 | 142 |
| 0031362 | 4 x 2 x 0.5 | 11.2 | 60 | 160 |
| 0031363 | 8 x 2 x 0.5 | 13.9 | 113.3 | 251 |
| 0031364 | 10 x 2 x 0.5 | 16 | 148 | 303 |
