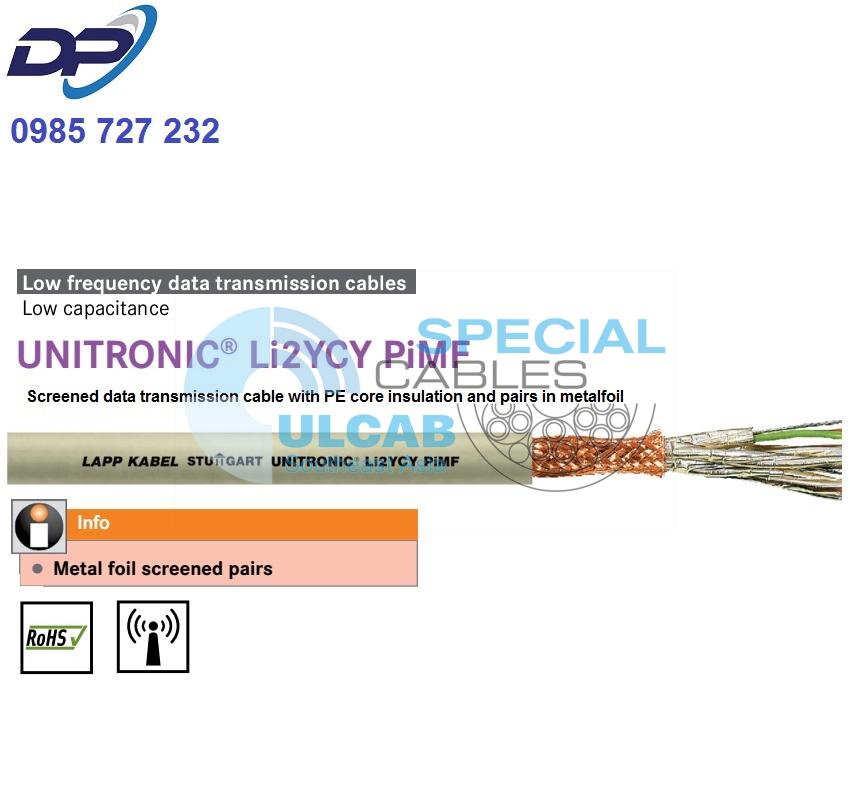

UNITRONIC® Li2YCY PiMF
Shielded data cable with PE core insulation and statically shielded core pairs
UNITRONIC® Li2YCY PiMF – shielded PVC data cable with individually shielded pairs for areas with a high level of electromagnetic interference
Metal foil shielded pairs (PIMF)
Benefits
- Data cable with low capacitance, pair screening and copper braiding
- Particularly suitable for wiring data systems and controls in large-scale technical facilities
- 7-wire braided conductor can be used for Maxi TERMI-POINT® wiring
- Individually shielded core pairs and the overall shielding minimise electrical interference
- Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
Application range
- For increased requirements for near-end cross-talk attenuation and in the case of high electrical interference in the circuits
- Suitable for the transmission in case of varying signal levels in the circuits and with weak, sensitive signals
- Versatile applications for computer systems, electronic control and regulating devices, office machines, scales etc.
- For measurement value transmission and serial 2-wire interfaces
- Intended for limited flexible use, and for fixed installation in dry or damp interiors
Product features
- Flame-retardant according to IEC 60332-1-2
Design
- 7-wire or fine-wire (from 1 mm²) strands made of bare copper wires
- Core insulation made of polyethylene (PE)
- Cores twisted into pairs
- Foil wrapping, static shielding made of aluminium-laminated plastic film with copper drain wire over each pair
- Bare copper braiding
- Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- 0.22 mm²-0.5 mm²:
according to DIN 47100, see table T9 - 1.0 mm²:
a-core: white, b-core: black
Operating capacitance
- At 800 Hz:
0.22 mm²: max. 70 nF/km
0.34 mm²: max. 70 nF/km
0.5 mm²: max. 75 nF/km
1.0 mm²: max. 85 nF/km
Peak operating voltage
- (not for power applications)
250 V
Inductance
- approx. 0.4 mH/km
Conductor design
- Stranded wire, based on VDE 0881, 7-wire
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 10 x outer diameter
Test voltage
- Core/Core: 2000 V
- Core/Shield: 1000 V
Characteristic impedance
- approx. 85 ohm(> 1 MHz)
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of pairs and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® Li2YCY PiMF 7-wire |
||||
| 0034040 | 2 x 2 x 0,22 | 7.7 | 33 | 75.4 |
| 0034041 | 3 x 2 x 0,22 | 8.1 | 42 | 86 |
| 0034042 | 4 x 2 x 0,22 | 8.7 | 50 | 99 |
| 0034043 | 8 x 2 x 0,22 | 10.9 | 85 | 161.4 |
| 0034044 | 10 x 2 x 0,22 | 12.5 | 100 | 186.4 |
| 0034045 | 2 x 2 x 0,34 | 9 | 43 | 70 |
| 0034046 | 3 x 2 x 0,34 | 9.4 | 55 | 85 |
| 0034047 | 4 x 2 x 0,34 | 9.8 | 64 | 103 |
| 0034048 | 8 x 2 x 0,34 | 12.9 | 127 | 191 |
| 0034049 | 10 x 2 x 0,34 | 14.9 | 150 | 230 |
| 7-wire | ||||
| 0034060 | 2 x 2 x 0,5 | 8.5 | 51 | 96 |
| 0034061 | 3 x 2 x 0,5 | 10.4 | 66 | 116 |
| 0034062 | 4 x 2 x 0,5 | 11.3 | 71 | 141 |
| 0034063 | 5 x 2 x 0,5 | 11.8 | 92 | 180 |
| 0034064 | 8 x 2 x 0,5 | 14.5 | 153 | 271 |
| 0034065 | 10 x 2 x 0,5 | 16.6 | 182 | 327 |
| Fine wire | ||||
| 0034070 | 2 x 2 x 1 | 9.9 | 82 | 126 |
| 0034071 | 3 x 2 x 1 | 11.8 | 109 | 156 |
| 0034072 | 4 x 2 x 1 | 12.7 | 133 | 193 |
| 0034073 | 10 x 2 x 1 | 19.7 | 326 | 492 |
