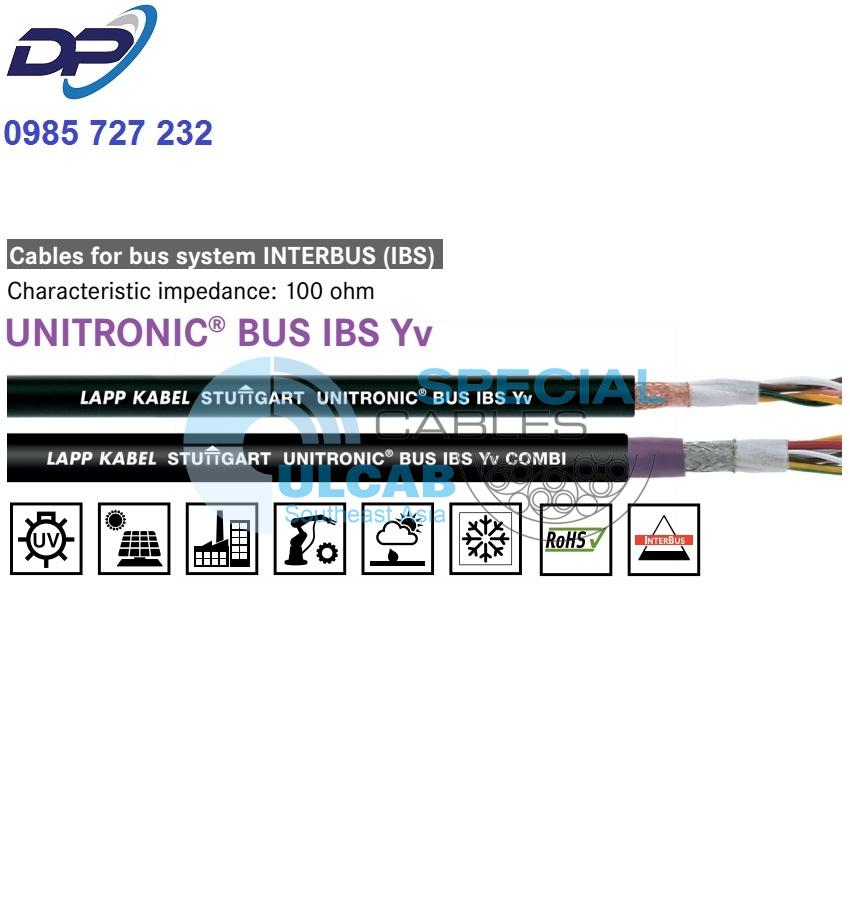

UNITRONIC® BUS IBS Yv
Cable for outdoor use or direct burial + UV-resistant, core code according to DIN 47100. Temperature range from -30°C to +80°C
Benefits
- Certified by INTERBUS CLUB
Application range
- Suitable for outdoor use and direct burial
Product features
- IBS cable – for outdoor use or direct burial + UV-resistant (remote bus cable + installation remote bus cable)
- The stated bit rates result in the following cable lengths (maximum) for a bus segment:
- 500 kbit/s = max. 400 m
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- According to DIN EN 61158
Design
- Data: Braided bare conductor, core colours: white/brown / green/yellow / grey/pink
- Power supply: Braided conductor, bare, core colours red, blue, green/yellow
- Overall copper wire shielding
- Reinforced PVC outer sheath
- Colour: black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- Flexible use: 10 x outer diameter
Peak operating voltage
- (not for power applications)
250 V
Conductor resistance
- (loop): max. 186 ohm/km
Minimum bending radius
- Fixed installation: 8 x outer diameter
Test voltage
- Core/Core: 1500 V eff.
Characteristic impedance
- 100 Ohm
Temperature range
- Fixed installation: -40°C to +70°C
| Article number | Cable type | Article designation | Number of pairs and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Suitable for outdoor use and direct burial, UV-resistant | ||||||
| 2170207 | Remote bus cable (RBC) | UNITRONIC® BUS IBS Yv | 3 x 2 x 0.22 | 9.3 | 37 | 94 |
| 2170217 | Installation remote bus cable (INBC) | UNITRONIC® BUS IBS Yv COMBI | 3 x 2 x 0,22 + 3 x 1,0 | 9.4 | 60 | 128 |
