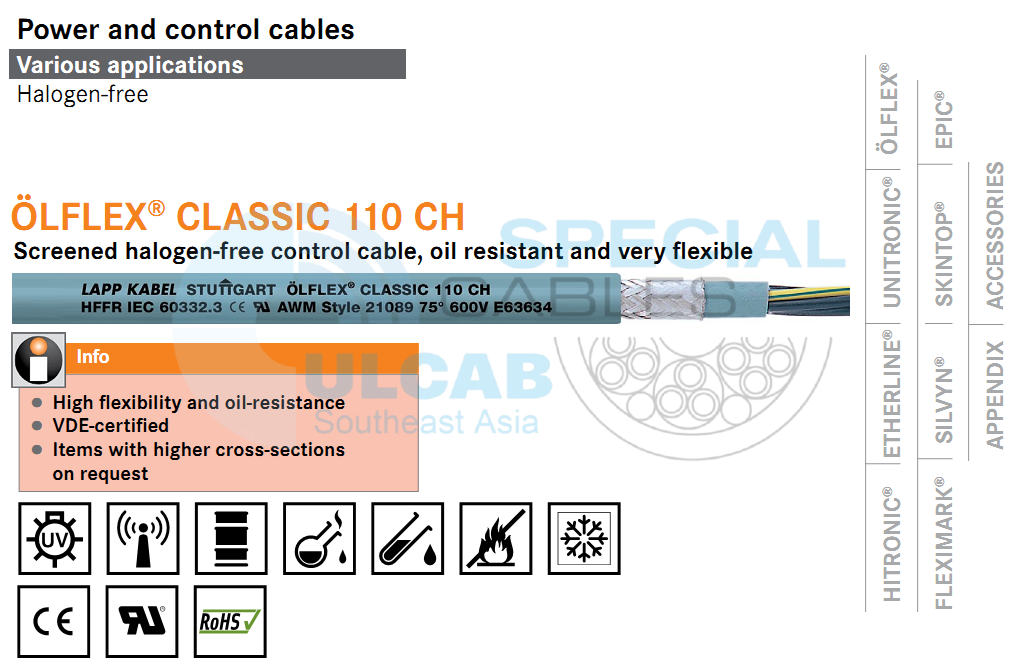

Power and control cables
Various applications
Halogen-free

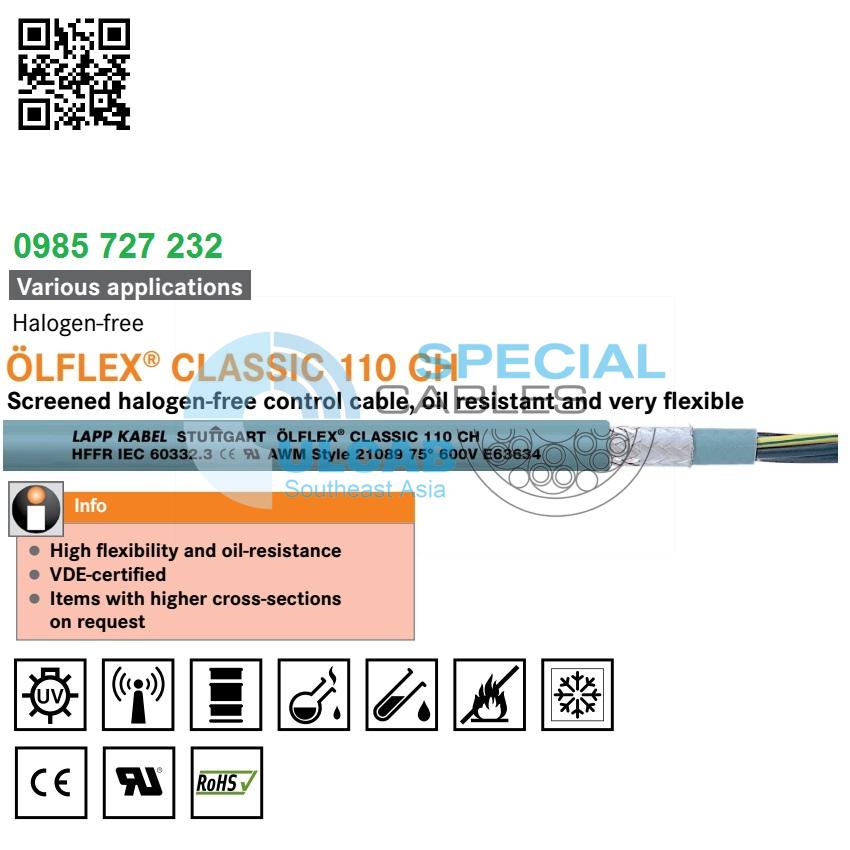

LAPP KABEL ÖLFLEX® CLASSIC 110 CH
Shielded halogen-free control cable, oil-resistant and very flexible
ÖLFLEX® CLASSIC 110 CH – halogen-free control cable, HFFR, shielded, oil-resistant, very flexible and cold-resistant down to -30°C for various applications
- New: Extended application range due to GL certification
- High flexibility and oil-resistance
- Versions with larger cross-sections on request
Benefits
- Easy handling and installation due to very flexible design
- Wide application range due to excellent product features
- Certified for maritime applications
Application range
- Public buildings like airports or railway stations
- Plant construction
Machine building
Heating and air-conditioning systems - Particularly where human and animal life as well as valuable property are exposed to a high risk of fire hazards
- Intended for use under the European Construction Product Regulation (CPR), refer to catalogue appendix T14
- Note: For use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 ed. 2015: please see the catalogue appendix table T29
Product features
- Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable) - No flame propagation according to IEC 60332-3-22 and IEC 60332-3-24 or IEC 60332-3-25 (flame spread on vertical cable or conductor bunch)
- Halogen-free according to IEC 60754-1
(amount of halogen acidic gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity) - Low smoke density according to IEC 61034-2
- Oil-resistant according to EN 50363-4-1 (TM5)
and UL OIL RES I and OIL RES II - UV- and weather-resistant according to ISO 4892-2
- Ozone-resistant according to EN 50396
Norm references / approvals
- UL AWM style 21089
- Based on EN 50525-3-11
- Based on EN 50525-2-51
- Germanischer Lloyd (GL)
certificate no. 11 119-14 HH
Design
- Finely stranded bare copper wires
- Core insulation: Halogen-free
- Cores twisted in layers
- Halogen-free inner sheath, grey
- Tin-plated copper braiding
- Sheath made of special halogen-free compound, grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
- UL: 600 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -30°C to +70°C (UL: +75°C)
- Fixed installation: -40°C to +80°C (UL: +75°C)
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 110 CH U 0/U: 300/500 V |
||||
| 10035030 | 2 X 0.5 | 7,1 | 29,1 | 85 |
| 10035031 | 3 G 0.5 | 7,4 | 35,1 | 95 |
| 10035032 | 3 X 0.5 | 7,4 | 35,1 | 95 |
| 10035033 | 4 G 0.5 | 8 | 41,4 | 111 |
| 10035034 | 4 X 0.5 | 8 | 41,4 | 111 |
| 10035035 | 5 G 0.5 | 8,6 | 48 | 126 |
| 10035036 | 7 G 0.5 | 9,1 | 59,9 | 148 |
| 10035037 | 12 G 0.5 | 11,5 | 91,4 | 226 |
| 10035040 | 2 X 0.75 | 7,7 | 35,4 | 101 |
| 10035041 | 3 G 0.75 | 8 | 43,8 | 114 |
| 10035042 | 3 X 0.75 | 8 | 43,8 | 114 |
| 10035043 | 4 G 0.75 | 8,5 | 52,8 | 130 |
| 10035044 | 4 X 0.75 | 8,5 | 52,8 | 130 |
| 10035045 | 5 G 0.75 | 9,3 | 62,3 | 153 |
| 10035046 | 5 X 0.75 | 9,3 | 62,3 | 153 |
| 10035047 | 7 G 0.75 | 9,9 | 79,5 | 183 |
| 10035048 | 7 X 0.75 | 9,9 | 79,5 | 183 |
| 10035050 | 12 G 0.75 | 12,5 | 123,2 | 280 |
| 10035051 | 18 G 0.75 | 14,8 | 188,6 | 399 |
| 10035052 | 25 G 0.75 | 16,9 | 247,5 | 522 |
| 10035055 | 2 X 1.0 | 8 | 41,4 | 112 |
| 10035056 | 3 G 1.0 | 8,4 | 52,1 | 127 |
| 10035057 | 3 X 1.0 | 8,4 | 52,1 | 127 |
| 10035058 | 4 G 1.0 | 8,9 | 73,5 | 157 |
| 10035059 | 4 X 1.0 | 8,9 | 73,5 | 157 |
| 10035060 | 5 G 1.0 | 9,7 | 83,2 | 171 |
| 10035061 | 7 G 1.0 | 10,3 | 97,2 | 210 |
| 10035062 | 12 G 1.0 | 13,6 | 168,7 | 347 |
| 10035063 | 18 G 1.0 | 15,7 | 235,4 | 474 |
| 10035064 | 25 G 1.0 | 17,8 | 312 | 611 |
| 10035065 | 41 G 1.0 | 22,4 | 508 | 969 |
| 10035067 | 2 X 1.5 | 8,6 | 53,2 | 134 |
| 10035068 | 3 G 1.5 | 9 | 69,1 | 155 |
| 10035069 | 3 X 1.5 | 9 | 69,1 | 155 |
| 10035070 | 4 G 1.5 | 9,8 | 85,8 | 186 |
| 10035071 | 5 G 1.5 | 10,5 | 102,8 | 215 |
| 10035072 | 7 G 1.5 | 11,4 | 134,2 | 269 |
| 10035073 | 12 G 1.5 | 15 | 232,8 | 445 |
| 10035074 | 18 G 1.5 | 17,4 | 327,8 | 610 |
| 10035075 | 25 G 1.5 | 20,4 | 463,2 | 843 |
| 10035089 | 3 G 2.5 | 10,5 | 102,8 | 220 |
| 10035090 | 4 G 2.5 | 11,4 | 129,4 | 265 |
| 10035091 | 5 G 2.5 | 12,7 | 157,5 | 322 |
| 10035092 | 7 G 2.5 | 14 | 223 | 422 |
| 10035093 | 12 G 2.5 | 17,9 | 360,5 | 659 |
| 10035094 | 4 G 4 | 13,6 | 207,6 | 390 |
| 10035095 | 5 G 4 | 14,9 | 251,5 | 463 |
| 10035096 | 7 G 4 | 16,2 | 333,9 | 588 |
| 10035097 | 4 G 6 | 15,8 | 294,8 | 516 |
| 10035098 | 5 G 6 | 17,3 | 356,1 | 616 |
| 10035099 | 7 G 6 | 18,8 | 479,3 | 792 |
| 10035380 | 4 G 10 | 19,1 | 461,1 | 789 |
| 10035381 | 5 G 10 | 21,4 | 586,6 | 998 |
| 10035382 | 4 G 16 | 22,3 | 727,6 | 1154 |
| 10035383 | 5 G 16 | 24,5 | 888,7 | 1389 |
| 10035384 | 4 G 25 | 27 | 1,123.9 | 1807 |
| 10035386 | 4 G 35 | 30,4 | 1,529.2 | 2321 |
