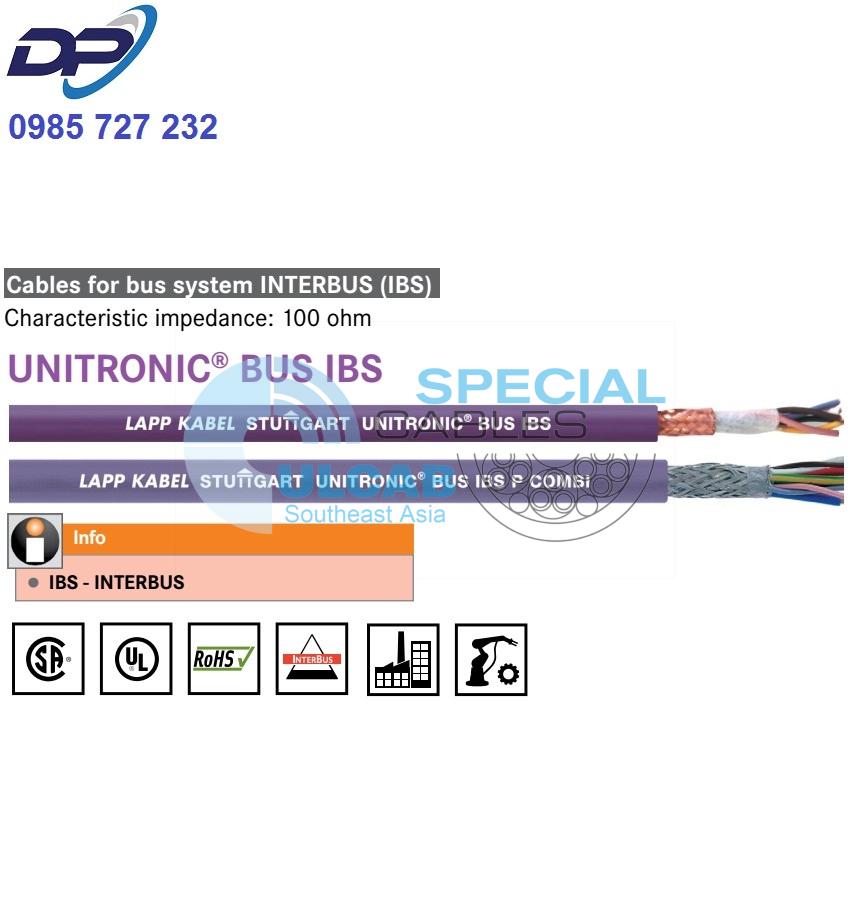

UNITRONIC® BUS IBS
Remote bus cable + installation remote bus cable, PUR outer sheath, halogen-free, flame-retardant IEC 60332-1-2, core code according to DIN 47100. Temperature range from -30°C to +80°C
IBS – INTERBUS
Benefits
- Certified by INTERBUS CLUB
Application range
- Fixed installation
Product features
- IBS cable – for fixed installation
- Remote bus cable + installation remote bus cable
- The stated bit rates result in the following cable lengths (maximum) for a bus segment:
500 kBit/s = max. 400 m - Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- According to DIN EN 61158
Design
- UNITRONIC® BUS IBS
- Stranded wire, bare, core code in accordance with DIN 47100, braided copper, PVC outer sheath, violet (RAL 4001)
- UNITRONIC® BUS IBS P COMBI
- Stranded wire, bare, core code according to DIN 47100 (data), stranded wire, bare (power supply), copper braiding, PUR outer sheath, violet (RAL 4001), halogen-free
- UNITRONIC® BUS IBS A
like UNITRONIC® BUS IBS, but with UL/CSA certification
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- Flexible use: 10 x outer diameter
Peak operating voltage
- (not for power applications)
250 V
Conductor resistance
- (loop): max. 186 ohm/km
Minimum bending radius
- Fixed installation: 8 x outer diameter
Test voltage
- Core/Core: 1500 V eff.
Characteristic impedance
- 100 Ohm
Temperature range
- Fixed installation:
-30°C to +80°C - Flexing: -5°C to +70°C
| Article number | Cable type | Article designation | Number of pairs and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| for fixed installation | ||||||
| 2170206 | Remote bus cable (RBC) | UNITRONIC® BUS IBS | 3 x 2 x 0.22 | 7.2 | 37 | 72 |
| 2170208 | Installation remote bus cable (INBC) | UNITRONIC® BUS IBS P COMBI | 3 x 2 x 0,22 + 3 x 1,0 | 7.9 | 60 | 85 |
| For fixed installation – UL/CSA CMX approval | ||||||
| 2170209 | Remote bus cable (RBC) | UNITRONIC® BUS IBS A | 3 x 2 x 0.22 | 7.2 | 37 | 72 |
