UNITRONIC® BUS IBS FD P
Use in power chains, for dry and damp rooms and harsh industrial environments, core code according to DIN 47100. Temperature range from -40°C to +80°C
IBS – INTERBUS
Benefits
- Certified by INTERBUS CLUB
Application range
- For highly flexible use in power chains, permanently moving machines and linear robots
- Dry or damp rooms
- Harsh industrial environment
Product features
- IBS cable – for highly flexible application
- Remote bus cable + installation remote bus cable
- 500 kbit/s = max. 400 m (remote bus cable)
- max. 50 m (installation remote bus cable)
- PUR outer sheath, tear- and notch-resistant, resistant to mineral oils and abrasion when used in power chains
Norm references / approvals
- According to DIN EN 61158
Design

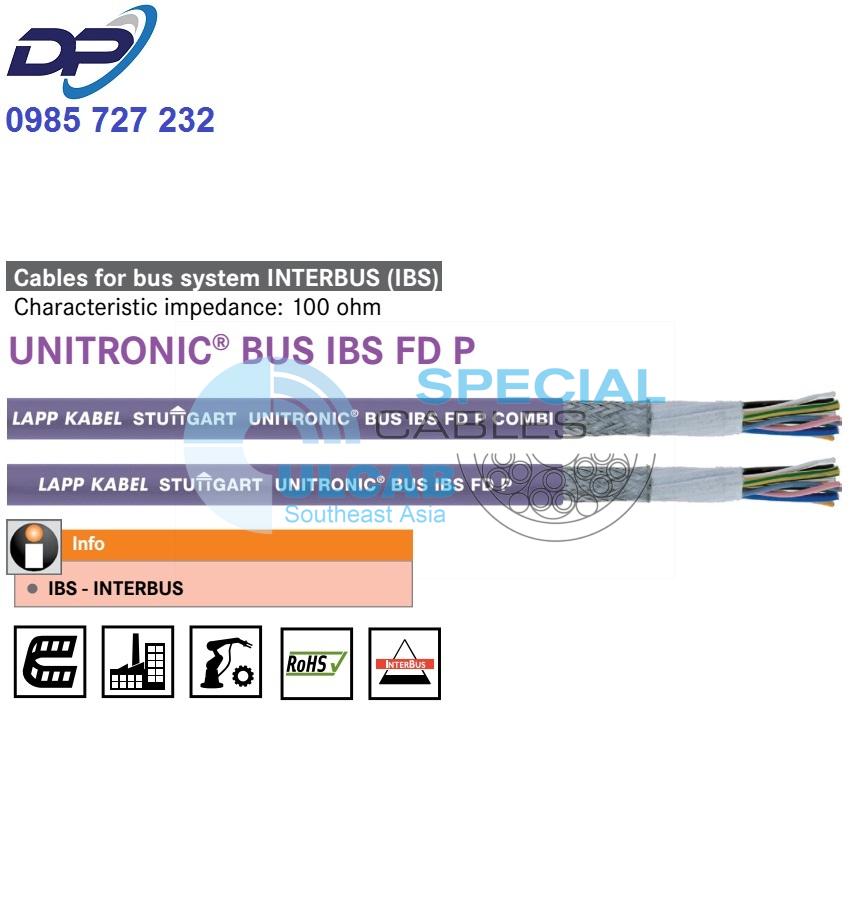

- UNITRONIC® BUS IBS FD P
- Braided conductor, bare, core-coded in accordance with DIN 47100, overall shielding made of copper wires, PUR outer sheath, violet (RAL 4001), halogen-free, flame-retardant in accordance with IEC 60332-1-2.
- UNITRONIC® BUS IBS FD P COMBI
- Braided conductor made of bare copper wires, cores twisted into pairs, core colours white/brown / green/yellow / grey/pink (data). Braided conductors made of bare copper wires, core colours red, blue, green/yellow (power supply).
- Overall shielding made of copper braiding, PUR outer sheath (violet, RAL 4001), halogen-free, flame-retardant according to IEC 60332-1-2.
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- Flexible use: 10 x outer diameter
Peak operating voltage
- (not for power applications)
250 V
Conductor resistance
- (loop): max. 159.8 ohm/km
Minimum bending radius
- Flexing: 15 x outer diameter
Test voltage
- Core/Core: 1500 V eff.
Characteristic impedance
- 100 Ohm
Temperature range
- Fixed installation: -40°C to +80°C
- Flexing: -30°C to +70°C
| Article number | Cable type | Article designation | Number of pairs and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| For highly flexible applications (power chains, moving machine parts) | ||||||
| 2170216 | Remote bus cable (RBC) | UNITRONIC® BUS IBS FD P | 3 x 2 x 0.25 | 7.9 | 39 | 64 |
| 2170218 | Installation remote bus cable (INBC) | UNITRONIC® BUS IBS FD P COMBI | 3 x 2 x 0,25 + 3 x 1,0 | 7.9 | 62 | 92 |
| For highly flexible applications (e.g. power chains) – with UL/CSA (CMX) approval |
||||||
| 2170818 | Installation remote bus cable (INBC) | UNITRONIC® BUS IBS FD P COMBI A | 3 x 2 x 0,25 + 3 x 1,0 | 7.9 | 62 | 92 |
