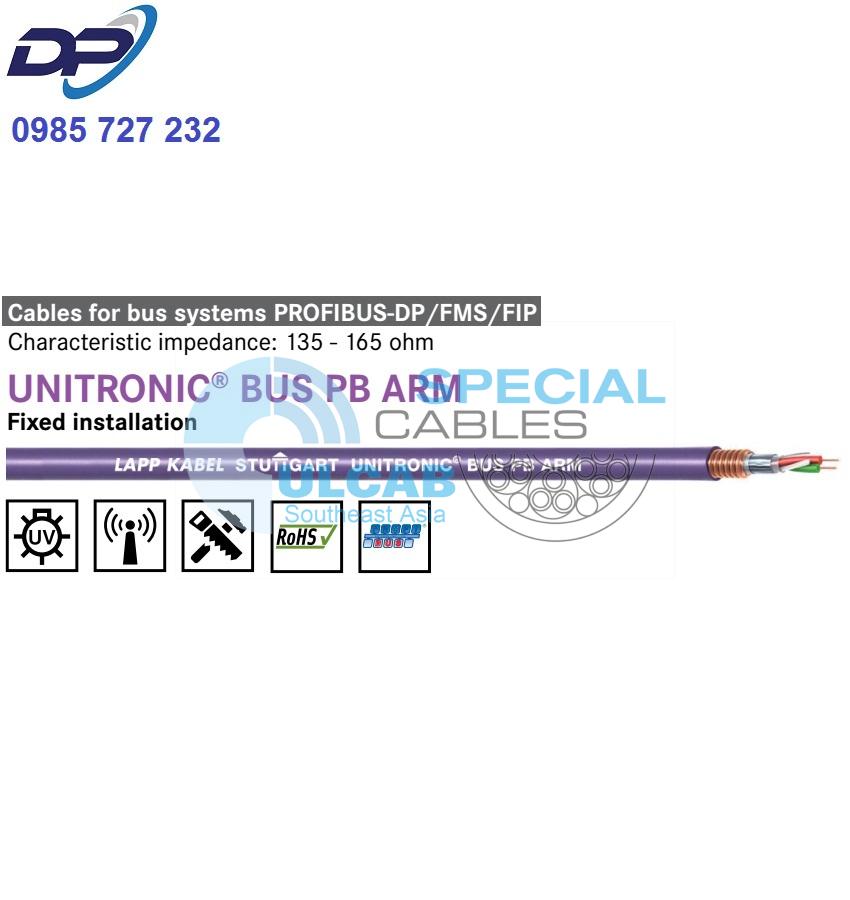

UNITRONIC® BUS PB ARM
Fixed installation
Bus cables can be used for PROFIBUS-DP, PROFIBUS-FMS as well as FIP. Use in harsh industrial environment. Temperature range from -40°C to +70°C
Benefits
- EMC-optimised design
Application range
- For use for PROFIBUS-DP or FIP in harsh industrial environments
- PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP – Factory Instrumentation Protocol).
Product features
- Flame-retardant according to IEC 60332-1-2
- UV-resistant
Design
- Solid and bare copper conductor
- Foam Skin – core insulation (O2YS)
- Overall shielding with copper braiding and plastic-laminated aluminium foil
- Overlapping plastic tape
- Copper tape, welded longitudinally
PVC outer sheath
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- (not for power applications)
100 V
Minimum bending radius
- Fixed installation: 7.5 x outer diameter
- Fixed installation: 3.5 x cable diameter once
Test voltage
- 3600 V DC (3 sec.)
Characteristic impedance
- 150 ±15 ohm
Temperature range
- -40°C to +70°C
| Article number | Article designation | Number of pairs and conductor diameter (mm) |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| 2170247 | UNITRONIC® BUS PB ARM | 1x2x0,65 | 11. 1 | 86.9 | 131 |
