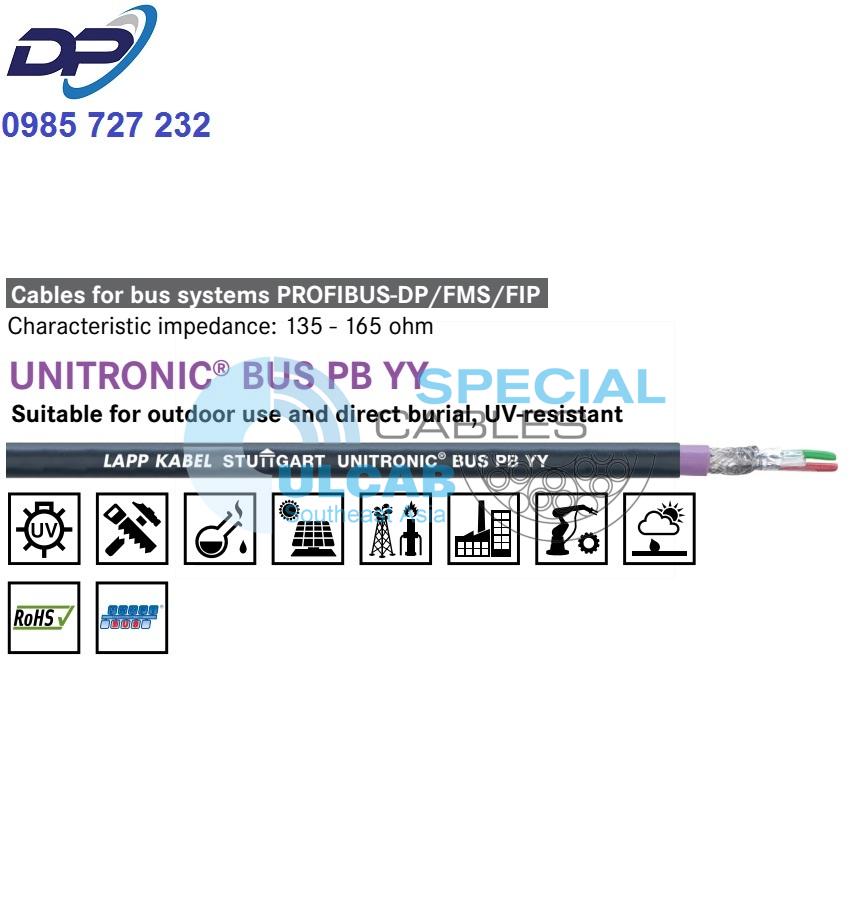

UNITRONIC® BUS PB YY
Suitable for outdoor use and direct burial, UV-resistant
Bus cable for PROFIBUS-DP, -FMS and FIP. Robust, UV-resistant and weatherproof. Dual PVC outer sheath. Temperature range from -40°C to +80°C
Benefits
- Rugged, UV-resistant and weatherproof
- Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
Application range
- PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP – Factory Instrumentation Protocol).
Product features
- Dual PVC outer sheath
Design
- Solid and bare copper conductor
- PE core insulation
- Overall shielding with copper braiding and plastic-laminated aluminium foil
- Tin-plated copper wire braiding
- PVC sheath, violet, OD 7.5 mm
PVC sheath, black, OD 9.5 mm
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- (not for power applications)
250 V
Minimum bending radius
- Fixed installation: 75 mm once
- Fixed installation: 150 mm
Test voltage
- Core/Core: 1500 V eff.
- Core/Shield: 1500 V
Characteristic impedance
- 150 ±15 ohm
Temperature range
- Flexing: -5°C to +50°C
- Fixed installation: -40°C to +80°C
| Article number | Article designation | Number of pairs and conductor diameter (mm) |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| Suitable for outdoor use and direct burial | |||||
| 2170236 | UNITRONIC® BUS PB YY | 1x2x0,64 | 9.5 | 30.1 | 87 |
