Dây Cáp Điều Khiển LAPP KABEL ÖLFLEX® CLASSIC 130 H, -40°C to +80°C (UL: +75°C), Grey | Chính Hãng – Giá Tốt Nhất
Hãng sản xuất: LAPP KABEL
Xuất xứ thương hiệu: Germany
(Giấy tờ nhập khẩu: CO,CQ,BIL,PACKING LIST, TỜ KHAI đầy đủ)
LAPP KABEL ÖLFLEX® CLASSIC 130 H đáp ứng các yêu cầu an toàn cháy nổ và phát thải khói nghiêm ngặt: chống cháy lan theo IEC 60332-1-2, không lan truyền ngọn lửa theo IEC 60332-3-22/3-24/3-25, không halogen theo IEC 60754-1, khí cháy có độ ăn mòn thấp theo IEC 60754-2 và mật độ khói thấp theo IEC 61034-2. Đây là lựa chọn phù hợp cho hệ thống điện, điều khiển và truyền tín hiệu trong môi trường công nghiệp, đặc biệt tại các khu vực yêu cầu cao về an toàn cháy và hạn chế khói độc.

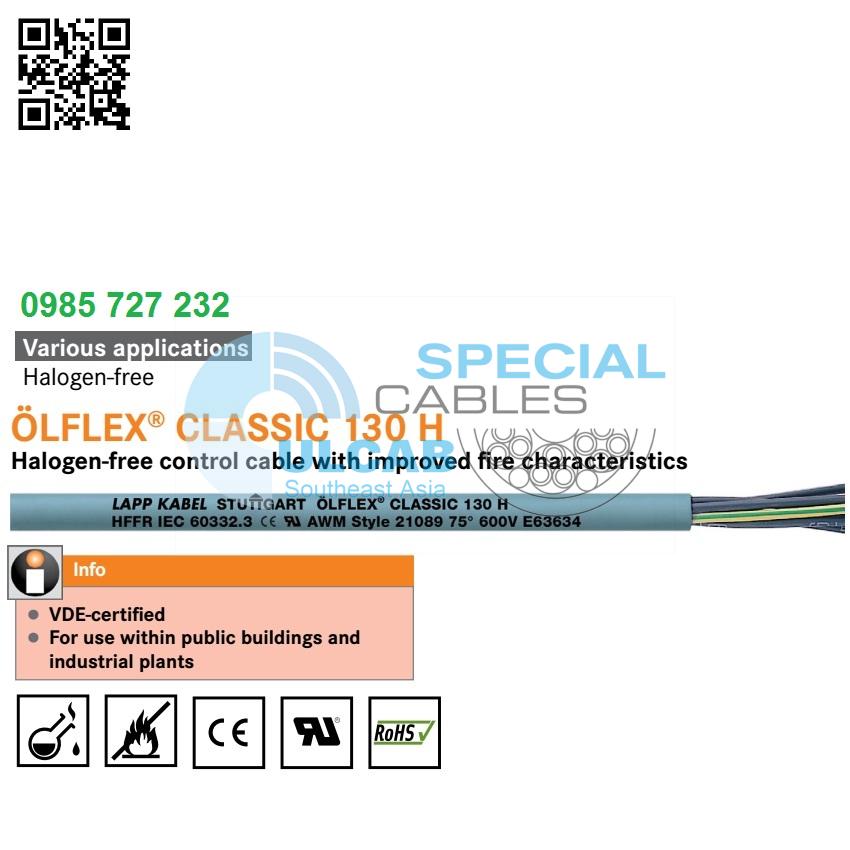

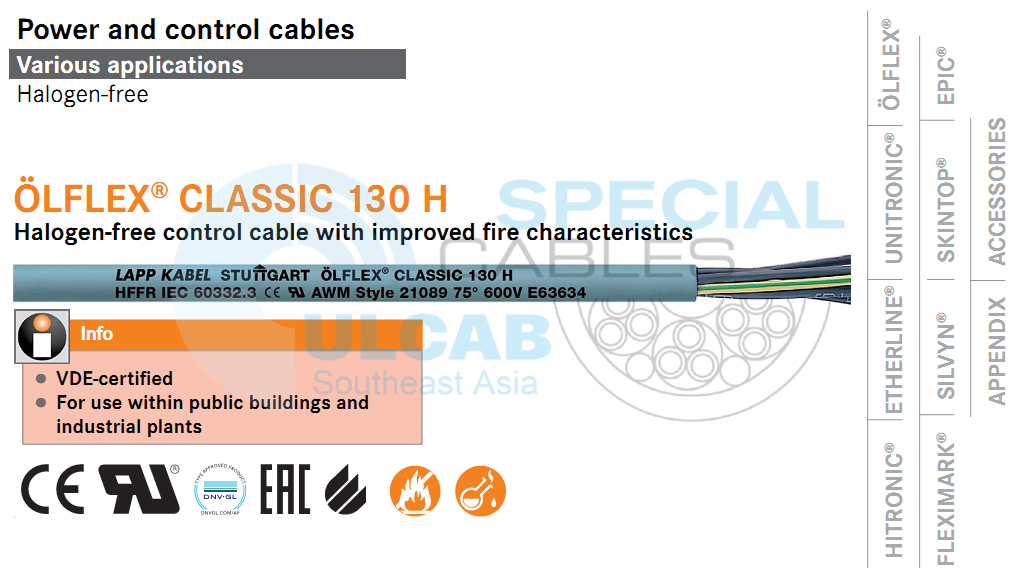

ÖLFLEX® CLASSIC 130 H
Halogen-free control cable with improved fire characteristics
ÖLFLEX® CLASSIC 130 H – halogen-free control cable, HFFR and flexible for various applications, U0/U: 300/500V
- CPR: Article number choice under www.lappkabel.com/cpr
- For use within public buildings and industrial plants
- A temporary outdoor use is possible
Benefits
- Easy handling and installation due to flexible design
- Note: for the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79: please see the catalogue appendix table T29
Application range
- Public buildings like airports or railway stations
- Plant engineering, Industrial machinery
Heating and air-conditioning systems
Stage applications - Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
- Considering the temperature range, a temporary outdoor use is possible
Product features
- Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable) - No flame-propagation according to IEC 60332-3-22 and IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
- Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity) - Low smoke density according to IEC 61034-2
Norm references / Approvals
- UL AWM style 21217
- Based on EN 50525-3-11
- Based on EN 50525-2-51
Product Make-up
- Fine-wire strand made of bare copper wires
- Core insulation: Halogen-free
- Cores twisted in layers
- Outer sheath: Special halogen-free compound, grey (similar to RAL 7001)
Technical Data
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-334
Conductor stranding
- Fine wire according to VDE 0295,
class 5/IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
- UL: 600 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -25°C to +70°C (UL: +75°C)
- Fixed installation: -40°C to +80°C (UL: +75°C)
| Article number | Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) | |
|---|---|---|---|---|---|
| ÖLFLEX® CLASSIC 130 H | |||||
|
1123000
|
2 X 0.5 | 5.1 | 9.6 | 36 | |
|
1123001
|
3 G 0.5 | 5.4 | 14.4 | 42 | |
|
1123002
|
3 X 0.5 | 5.4 | 14.4 | 42 | |
|
1123003
|
4 G 0.5 | 5.8 | 19.2 | 55 | |
|
1123004
|
4 X 0.5 | 5.8 | 19.2 | 55 | |
|
1123005
|
5 G 0.5 | 6.3 | 24 | 65 | |
|
1123006
|
5 X 0.5 | 6.3 | 24 | 65 | |
|
1123008
|
7 G 0.5 | 6.9 | 33.6 | 80 | |
|
1123009
|
7 X 0.5 | 6.9 | 33.6 | 80 | |
|
1123010
|
8 G 0.5 | 8.2 | 38.4 | 103 | |
|
1123012
|
10 G 0.5 | 8.8 | 48 | 112 | |
|
1123013
|
12 G 0.5 | 9.1 | 57.6 | 128 | |
|
1123017
|
18 G 0.5 | 10.8 | 86.4 | 189 | |
|
1123020
|
25 G 0.5 | 12.7 | 120 | 260 | |
|
1123021
|
30 G 0.5 | 13.6 | 144 | 294 | |
|
1123032
|
2 X 0.75 | 5.5 | 14.4 | 47 | |
|
1123033
|
3 G 0.75 | 5.8 | 21.6 | 56 | |
|
1123034
|
3 X 0.75 | 5.8 | 21.6 | 56 | |
|
1123035
|
4 G 0.75 | 6.3 | 28.8 | 69 | |
|
1123036
|
4 X 0.75 | 6.3 | 28.8 | 69 | |
|
1123037
|
5 G 0.75 | 6.9 | 36 | 83 | |
|
1123038
|
5 X 0.75 | 6.9 | 36 | 83 | |
|
1123041
|
7 G 0.75 | 7.5 | 50.4 | 104 | |
|
1123042
|
7 X 0.75 | 7.5 | 50.4 | 104 | |
|
1123046
|
10 G 0.75 | 9.8 | 72 | 149 | |
|
1123047
|
12 G 0.75 | 10.1 | 86.4 | 172 | |
|
1123048
|
12 X 0.75 | 10.1 | 86.4 | 172 | |
|
1123051
|
18 G 0.75 | 12 | 129.6 | 252 | |
|
1123054
|
25 G 0.75 | 14.1 | 180 | 352 | |
|
1123056
|
34 G 0.75 | 16.3 | 244.8 | 466 | |
|
1123066
|
2 X 1.0 | 5.8 | 19.2 | 55 | |
|
1123067
|
3 G 1.0 | 6.1 | 28.8 | 67 | |
|
1123068
|
3 X 1.0 | 6.1 | 28.8 | 67 | |
|
1123069
|
4 G 1.0 | 6.6 | 38.4 | 83 | |
|
1123070
|
4 X 1.0 | 6.6 | 38.4 | 83 | |
|
1123071
|
5 G 1.0 | 7.3 | 48 | 100 | |
|
1123072
|
5 X 1.0 | 7.3 | 48 | 100 | |
|
1123074
|
7 G 1.0 | 8.1 | 67.2 | 130 | |
|
1123075
|
7 X 1.0 | 8.1 | 67.2 | 130 | |
|
1123076
|
8 G 1.0 | 9.7 | 76.8 | 164 | |
|
1123078
|
10 G 1.0 | 10.4 | 96 | 183 | |
|
1123080
|
12 G 1.0 | 10.7 | 115.2 | 212 | |
|
1123081
|
12 X 1.0 | 10.7 | 115.2 | 212 | |
|
1123083
|
16 G 1.0 | 12.1 | 153.6 | 275 | |
|
1123084
|
18 G 1.0 | 12.9 | 172.8 | 314 | |
|
1123090
|
25 G 1.0 | 15 | 240 | 429 | |
|
1123094
|
34 G 1.0 | 17.5 | 326.4 | 570 | |
|
1123106
|
2 X 1.5 | 6.4 | 28.8 | 72 | |
|
1123107
|
3 G 1.5 | 6.8 | 43.2 | 88 | |
|
1123108
|
3 X 1.5 | 6.8 | 43.2 | 88 | |
|
1123109
|
4 G 1.5 | 7.4 | 57.6 | 110 | |
|
1123110
|
4 X 1.5 | 7.4 | 57.6 | 110 | |
|
1123111
|
5 G 1.5 | 8.3 | 72 | 135 | |
|
1123112
|
5 X 1.5 | 8.3 | 72 | 135 | |
|
1123114
|
7 G 1.5 | 9 | 100.8 | 174 | |
|
1123115
|
7 X 1.5 | 9 | 100.8 | 174 | |
|
1123116
|
8 G 1.5 | 10.8 | 115.2 | 223 | |
|
1123118
|
10 G 1.5 | 11.8 | 144 | 250 | |
|
1123120
|
12 G 1.5 | 12.2 | 172.8 | 289 | |
|
1123124
|
18 G 1.5 | 14.6 | 259.2 | 433 | |
|
1123128
|
25 G 1.5 | 17.2 | 360 | 596 | |
|
1123130
|
34 G 1.5 | 19.8 | 489.6 | 786 | |
|
1123139
|
2 X 2.5 | 7.6 | 48 | 110 | |
|
1123140
|
3 G 2.5 | 8.3 | 72 | 137 | |
|
1123142
|
4 G 2.5 | 9 | 96 | 174 | |
|
1123144
|
5 G 2.5 | 10.1 | 120 | 217 | |
|
1123146
|
7 G 2.5 | 11.2 | 168 | 283 | |
|
1123149
|
12 G 2.5 | 15.1 | 288 | 467 | |
|
1123151
|
18 G 2.5 | 18 | 432 | 696 | |
|
1123153
|
25 G 2.5 | 21.1 | 600 | 969 | |
|
1123159
|
3 G 4.0 | 9.8 | 115.2 | 213 | |
|
1123160
|
4 G 4.0 | 10.8 | 153.6 | 267 | |
|
1123161
|
5 G 4.0 | 12.1 | 192 | 331 | |
|
1123162
|
7 G 4.0 | 13.4 | 268.8 | 432 | |
|
1123166
|
3 G 6.0 | 11.7 | 172.8 | 303 | |
|
1123167
|
4 G 6.0 | 13 | 230.4 | 388 | |
|
1123168
|
5 G 6.0 | 14.5 | 288 | 480 | |
|
1123169
|
7 G 6.0 | 16 | 403.2 | 626 | |
|
1123172
|
4 G 10.0 | 16.2 | 384 | 601 | |
|
1123173
|
5 G 10.0 | 18.1 | 480 | 735 | |
|
1123177
|
4 G 16.0 | 18.8 | 614.4 | 917 | |
|
1123178
|
5 G 16.0 | 21.2 | 768 | 1148 | |
|
1123181
|
4 G 25.0 | 23.5 | 960 | 1418 | |
|
1123182
|
5 G 25.0 | 26.4 | 1200 | 1769 | |
|
1123185
|
4 G 35.0 | 26.6 | 1344 | 1905 | |
