Benefits

• For use wherever the combination of a halogen-free outer sheath with properties similar to polyurethane and enhanced flame-retardance is required
• Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
• For highly flexible applications (drag chains, frequently moving machine components)

Application range

• PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP – Factory Instrumentation Protocol).
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

• Halogen-free
• Flame-retardant according to IEC 60332-1-2
• Oil-resistant
• Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
  (cable type A, PROFIBUS-DP):
  93.75 kbit/s = 1200 m
  187.5 kbit/s = 1000 m
  500 kbit/s = 400 m
  1.5 Mbit/s = 200 m
  12.0 Mbit/s = 100 m

Norm references / approvals

• Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214

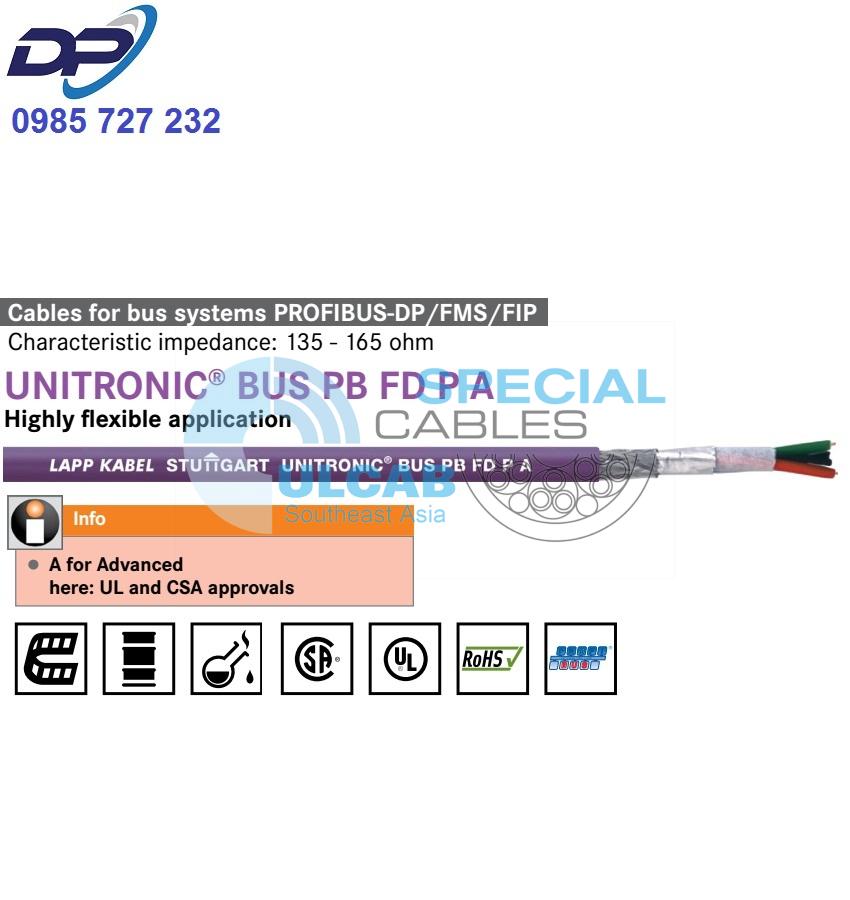

Design

• Stranded bare copper wire
• Foam Skin – core insulation (O2YS)
• Overall shielding with copper braiding and plastic-laminated aluminium foil
• Screening braid made of tin-plated copper wires
• Outer sheath: Polyurethane (PUR) compound
