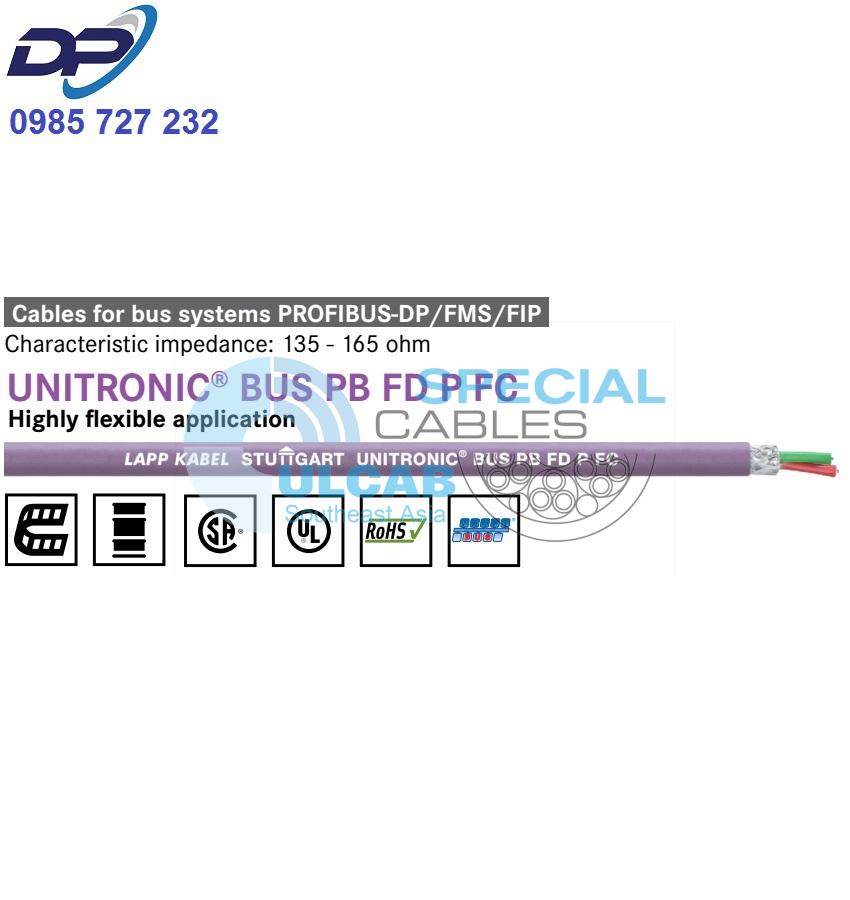

UNITRONIC® BUS PB FD P FC
Highly flexible application
Bus cables can be used for PROFIBUS-DP, PROFIBUS-FMS as well as FIP. Fast Connect, flame retardance, oil resistance. Temperature range from -40°C to +80°C
Benefits
- Fast Connect (FC) cable design
- Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
- For highly flexible applications (drag chains, frequently moving machine components)
Application range
- PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP – Factory Instrumentation Protocol).
Product features
- Flame-retardant according to IEC 60332-1-2
- Oil-resistant
- Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
(cable type A, PROFIBUS-DP):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m
500 kbit/s = 400 m
1.5 Mbit/s = 200 m
12.0 Mbit/s = 100 m
Norm references / approvals
- Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214
Design
- Stranded bare copper wire
- Foam Skin – core insulation (O2YS)
- Overall shielding with copper braiding and plastic-laminated aluminium foil
- Screening braid made of tin-plated copper wires
- Outer sheath: Polyurethane (PUR) compound
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- (not for power applications)
250 V
Minimum bending radius
- Flexing: 15 x outer diameter
Test voltage
- 3600 V DC (3 sec.)
Characteristic impedance
- 150 ±15 ohm
Temperature range
- Flexing: -30°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Article designation | Number of pairs and conductor diameter (mm) |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Highly flexible application | |||||
| 2170322 | UNITRONIC®BUS PB FD P FC | 1x2x0.64 | 8 | 26 | 79 |
