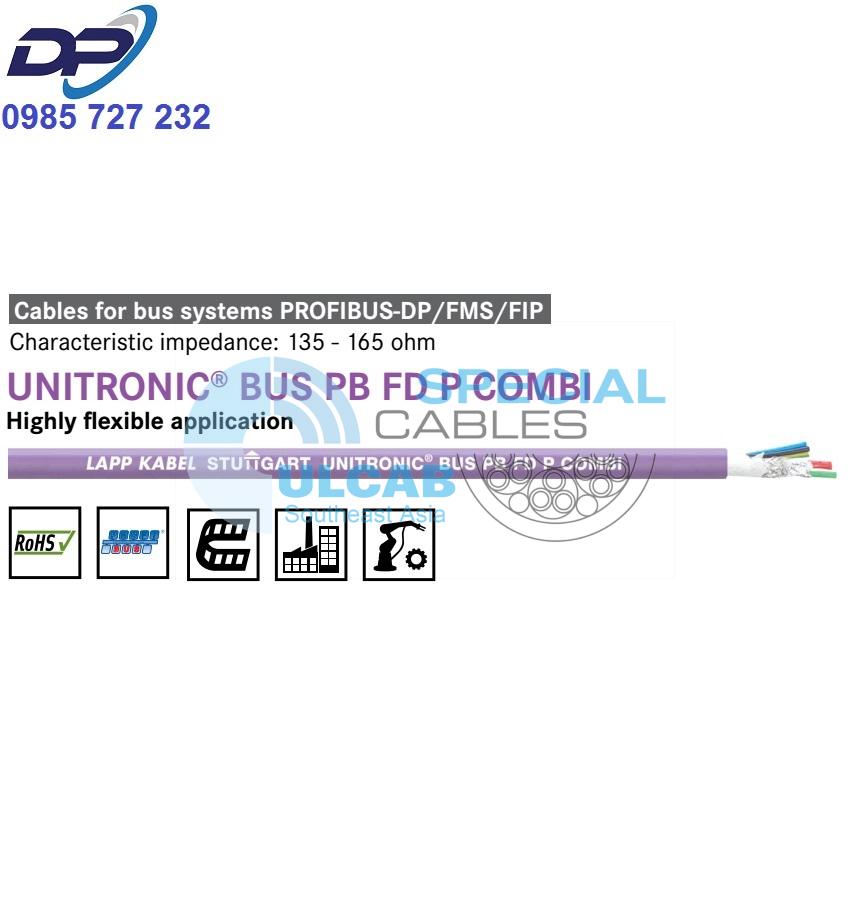

UNITRONIC® BUS PB FD P COMBI
Highly flexible application
Bus cables can be used for PROFIBUS-DP, -FMS as well as FIP. HYBRID: Data transmission and power supply. Temperature range from -40°C to +80°C
Benefits
- For use wherever the combination of a halogen-free outer sheath with properties similar to polyurethane and enhanced flame-retardance is required
- For highly flexible applications (drag chains, frequently moving machine components)
- Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
Application range
- PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP – Factory Instrumentation Protocol).
Product features
- HYBRID: Cable for data transmission and power supply
- Flame-retardant (IEC 60332.1.2)
Design
- Cores for power supply
3 x 1.0 mm2 (AWG18) - Polyolefin-based core insulation
- PUR-based outer sheath
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- (not for power applications)
100 V
Minimum bending radius
- Flexing: 145 mm
Test voltage
- Core/Core: 600 V
Characteristic impedance
- 150 ±15 ohm
Temperature range
- Flexing: -5°C to +50°C
- Fixed installation: -40°C to +80°C
| Article number | Article designation | Number of pairs and conductor diameter (mm) |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Highly flexible application | |||||
| 2170227 | UNITRONIC® BUS PB FD P COMBI | 1 x 2 x 0.64 Ø + 3 x 1.0 mm² | 10.1 | 59 | 125 |
