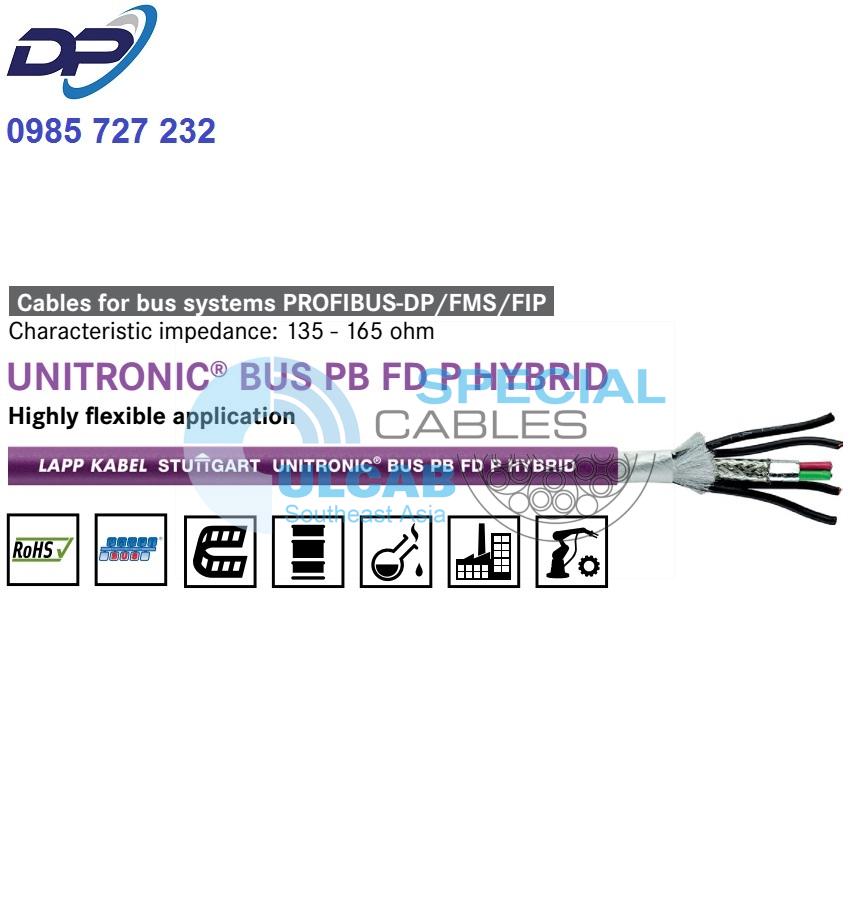

UNITRONIC® BUS PB FD P HYBRID
Highly flexible application
Bus cable for PROFIBUS-DP, -FMS and FIP. HYBRID: Data and power supply. Flame-retardant, oil-resistant and halogen-free. Temp. range from -40°C to +70°C
Benefits
- For use wherever the combination of a halogen-free outer sheath with properties similar to polyurethane and enhanced flame-retardance is required
- For highly flexible applications (drag chains, frequently moving machine components)
- Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
Application range
- PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP – Factory Instrumentation Protocol).
Product features
- HYBRID: Cable for data transmission and power supply
- Flame-retardant according to IEC 60332-1-2
- Oil-resistant
Design
- Cores for power supply4 x 1.5 mm2 (AWG16)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- (not for power applications)
100 V
Minimum bending radius
- Flexing: 15 x outer diameter
Test voltage
- Core/Core: 600 V
- Core/Shield: 600 V
Characteristic impedance
- 150 ±15 ohm
Temperature range
- Flexing: -30°C to +60°C
- Fixed installation: -40°C to +70°C
| Article number | Article designation | Number of pairs and conductor diameter (mm) |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Highly flexible application | |||||
| 2170495 | UNITRONIC® BUS PB FD P HYBRID | 1 x 2 x 0.64 Ø + 4 x 1.5 mm² | 11.3 | 89 | 148 |
