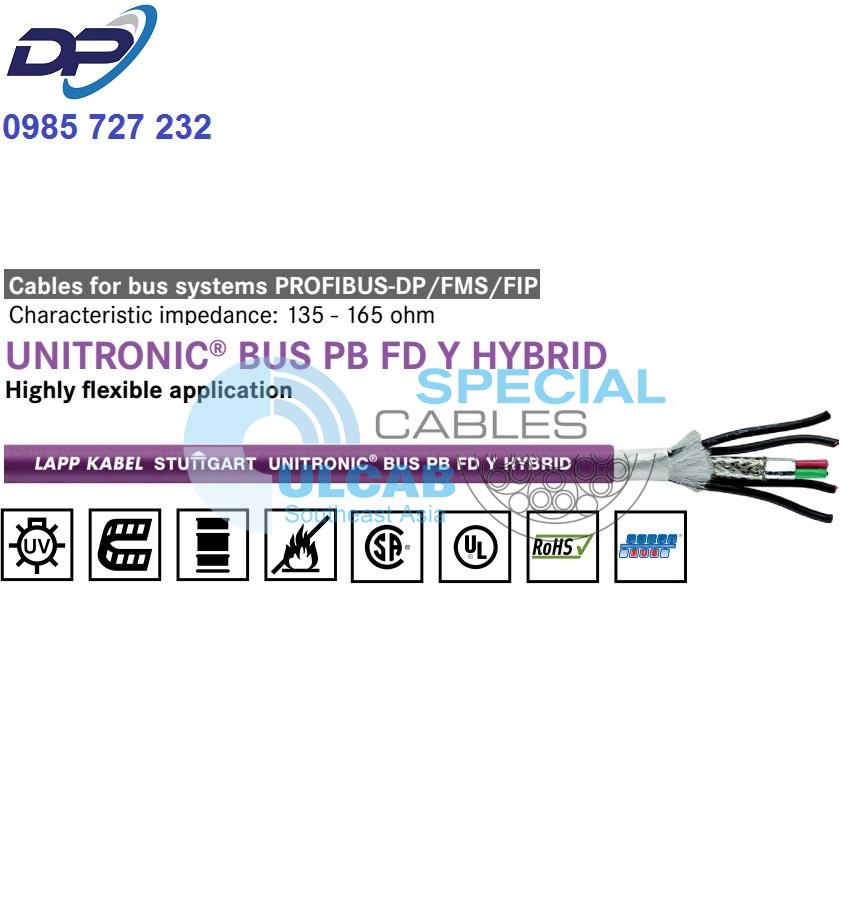

UNITRONIC® BUS PB FD Y HYBRID
Highly flexible application
Bus cable for PROFIBUS-DP, -FMS and FIP. HYBRID: Data and power supply. Flame-retardant, oil-resistant and UV-resistant. Temp. range from -40°C to +80°C
Benefits
- For highly flexible applications (drag chains, frequently moving machine components)
- Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
- CL3 for installation on trays
Application range
- PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP – Factory Instrumentation Protocol).
Product features
- HYBRID: Cable for data transmission and power supply
Norm references / approvals
- With UL/CSA certifications (CMG, CL3, SUN RES, Oil Res I)
- Flame-retardant according to CSA FT4
UL Vertical-Tray Flame Test - Oil-resistant according to UL OIL RES I
Design
- Outer sheath: Special PVC compound
- Cores for power supply
4 x 1.5 mm2 (AWG16)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- 600 V (not for power applications)
Minimum bending radius
- Fixed installation:
10 x outer diameter - Flexing: 15 x outer diameter
Test voltage
- Core/Core: 2000 V
- Core/Shield: 2000 V
Characteristic impedance
- 150 ±15 ohm
Temperature range
- -5°C to +80°C
| Article number | Article designation | Number of pairs and conductor diameter (mm) |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Highly flexible application | |||||
| 2170875 | UNITRONIC® BUS PB FD Y HYBRID | 1 x 2 x 0.64 Ø + 4 x 1.5 mm² | 11.3 | 89 | 155 |
