LAPP KABEL ÖLFLEX® CLASSIC 135 CH là dòng cáp điện và cáp điều khiển tín hiệu không halogen, ít khói, chống cháy và chống lan truyền ngọn lửa. Cáp sử dụng ruột đồng trần nhiều sợi mảnh, cách điện Halogen-free, bện chống nhiễu bằng đồng thiếc và vỏ ngoài màu xám. Sản phẩm đáp ứng các tiêu chuẩn IEC 60332, IEC 60754 và IEC 61034, phù hợp cho hệ thống điện, điều khiển và tự động hóa công nghiệp yêu cầu cao về an toàn.
ÖLFLEX® CLASSIC 135 CH

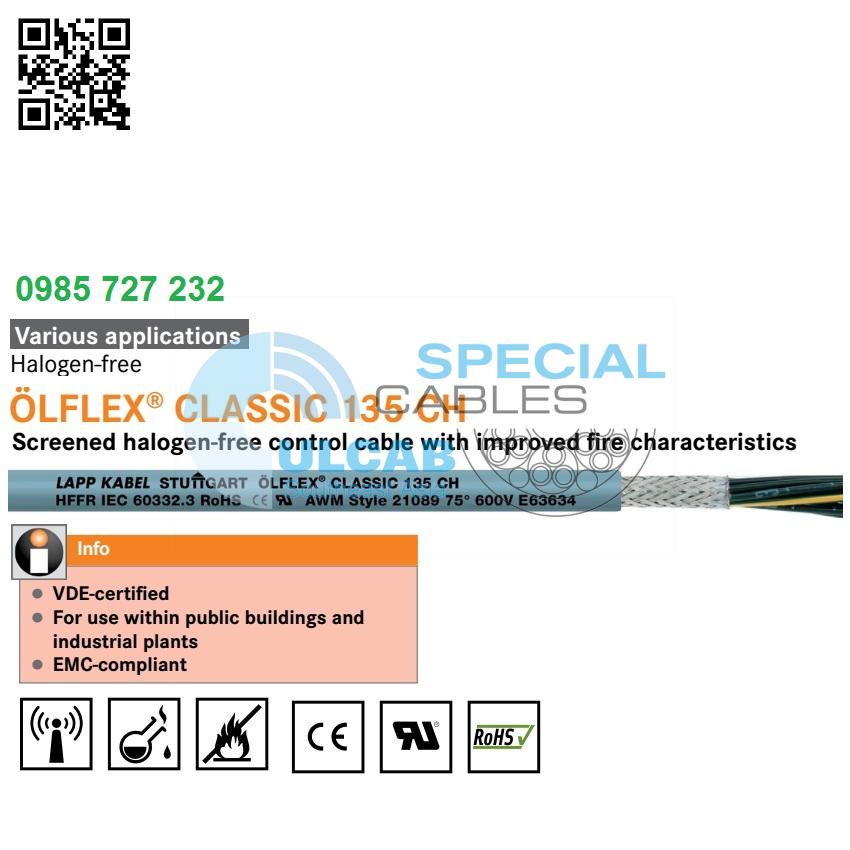

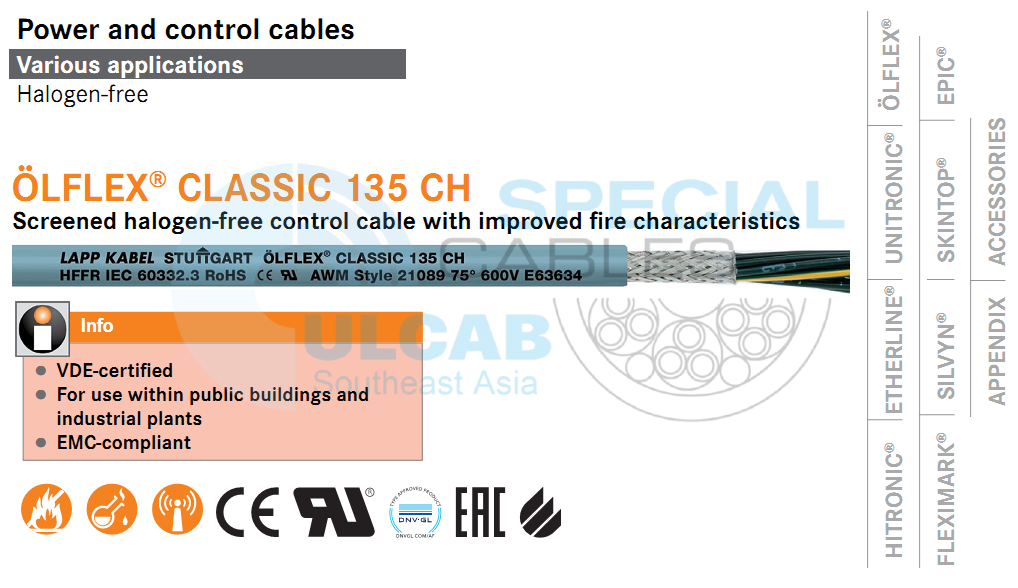

Screened halogen-free control cable with improved fire characteristics
ÖLFLEX® CLASSIC 135 CH -halogen-free control cable, HFFR, flexible and screened for various applications, U0/U: 300/500V
- CPR: Article number choice under www.lappkabel.com/cpr
- For use within public buildings and industrial plants
- A temporary outdoor use is possible
Benefits
- Easy handling and installation due to flexible design
- Space-saving installation due to small cable diameters
- Note: for the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79: please see the catalogue appendix table T29
Application range
- Public buildings like airports or railway stations
- Plant engineering
Industrial machinery
Heating and air-conditioning systems - Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
- In EMC-sensitive environments
(electromagnetic compatibility) - Considering the temperature range, a temporary outdoor use is possible
Product features
- Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable) - No flame-propagation according to IEC 60332-3-22 and IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
- Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity) - Low smoke density according to IEC 61034-2
Norm references / Approvals
- UL AWM style 21217
- Based on EN 50525-3-11
- Based on EN 50525-2-51
Product Make-up
- Fine-wire strand made of bare copper wires
- Core insulation: Halogen-free
- Cores twisted in layers
- Halogen-free plastic foil wrapping
- Tinned-copper braiding
- Outer sheath: Special halogen-free compound, grey (similar to RAL 7001)
Technical Data
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-334
Conductor stranding
- Fine wire according to VDE 0295,
class 5/IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
- UL: 600 V
Test voltage
- Core/core: 4000 V
- Core/screen: 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -25°C to +70°C (UL: +75°C)
- Fixed installation: -40°C to +80°C (UL: +75°C)
| Article number | Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) | |
|---|---|---|---|---|---|
| ÖLFLEX® CLASSIC 135 CH | |||||
|
1123200
|
2 X 0.5 | 5.9 | 36 | 51 | |
|
1123201
|
3 G 0.5 | 6.2 | 43 | 61 | |
|
1123202
|
3 X 0.5 | 6.2 | 43 | 61 | |
|
1123203
|
4 G 0.5 | 6.6 | 49 | 72 | |
|
1123204
|
4 X 0.5 | 6.6 | 49 | 72 | |
|
1123205
|
5 G 0.5 | 7.1 | 57 | 85 | |
|
1123206
|
5 X 0.5 | 7.1 | 57 | 85 | |
|
1123208
|
7 G 0.5 | 7.7 | 69 | 103 | |
|
1123209
|
7 X 0.5 | 7.7 | 69 | 103 | |
|
1123213
|
12 G 0.5 | 10.1 | 104 | 165 | |
|
1123217
|
18 G 0.5 | 11.8 | 141 | 236 | |
|
1123220
|
25 G 0.5 | 13.7 | 224 | 324 | |
|
1123232
|
2 X 0.75 | 6.3 | 43 | 60 | |
|
1123233
|
3 G 0.75 | 6.6 | 52 | 77 | |
|
1123234
|
3 X 0.75 | 6.6 | 52 | 77 | |
|
1123235
|
4 G 0.75 | 7.1 | 61 | 87 | |
|
1123236
|
4 X 0.75 | 7.1 | 61 | 87 | |
|
1123237
|
5 G 0.75 | 7.9 | 72 | 106 | |
|
1123238
|
5 X 0.75 | 7.9 | 72 | 106 | |
|
1123241
|
7 G 0.75 | 8.5 | 89 | 129 | |
|
1123242
|
7 X 0.75 | 8.5 | 89 | 129 | |
|
1123247
|
12 G 0.75 | 11.1 | 138 | 211 | |
|
1123248
|
12 X 0.75 | 11.1 | 138 | 211 | |
|
1123251
|
18 G 0.75 | 13 | 211 | 307 | |
|
1123254
|
25 G 0.75 | 15.1 | 280 | 413 | |
|
1123266
|
2 X 1.0 | 6.6 | 51 | 79 | |
|
1123267
|
3 G 1.0 | 6.9 | 62 | 88 | |
|
1123268
|
3 X 1.0 | 6.9 | 62 | 88 | |
|
1123269
|
4 G 1.0 | 7.4 | 74 | 106 | |
|
1123270
|
4 X 1.0 | 7.4 | 74 | 106 | |
|
1123271
|
5 G 1.0 | 8.3 | 88 | 124 | |
|
1123272
|
5 X 1.0 | 8.3 | 88 | 124 | |
|
1123274
|
7 G 1.0 | 8.9 | 112 | 155 | |
|
1123275
|
7 X 1.0 | 8.9 | 112 | 155 | |
|
1123280
|
12 G 1.0 | 11.7 | 185 | 250 | |
|
1123281
|
12 X 1.0 | 11.7 | 185 | 250 | |
|
1123284
|
18 G 1.0 | 14.1 | 268 | 368 | |
|
1123290
|
25 G 1.0 | 16.2 | 354 | 493 | |
|
1123291
|
25 X 1.0 | 16.2 | 354 | 493 | |
|
1123306
|
2 X 1.5 | 7.2 | 65 | 91 | |
|
1123307
|
3 G 1.5 | 7.6 | 82 | 112 | |
|
1123308
|
3 X 1.5 | 7.6 | 82 | 112 | |
|
1123309
|
4 G 1.5 | 8.4 | 100 | 141 | |
|
1123310
|
4 X 1.5 | 8.4 | 100 | 141 | |
|
1123311
|
5 G 1.5 | 9.1 | 119 | 161 | |
|
1123312
|
5 X 1.5 | 9.1 | 119 | 161 | |
|
1123314
|
7 G 1.5 | 10 | 154 | 206 | |
|
1123315
|
7 X 1.5 | 10 | 154 | 206 | |
|
1123320
|
12 G 1.5 | 13.4 | 268 | 355 | |
|
1123324
|
18 G 1.5 | 15.8 | 373 | 517 | |
|
1123328
|
25 G 1.5 | 18.2 | 530 | 705 | |
|
1123339
|
2 X 2.5 | 8.6 | 96 | 128 | |
|
1123340
|
3 G 2.5 | 9.1 | 118 | 157 | |
|
1123342
|
4 G 2.5 | 10 | 147 | 201 | |
|
1123344
|
5 G 2.5 | 11.1 | 176 | 248 | |
|
1123346
|
7 G 2.5 | 12 | 253 | 313 | |
|
1123349
|
12 G 2.5 | 16.3 | 385 | 524 | |
|
1123359
|
3 G 4.0 | 10.6 | 178 | 231 | |
|
1123360
|
4 G 4.0 | 11.8 | 248 | 291 | |
|
1123361
|
5 G 4.0 | 13.3 | 269 | 361 | |
|
1123362
|
7 G 4.0 | 14.6 | 371 | 468 | |
|
1123366
|
3 G 6.0 | 12.7 | 240 | 318 | |
|
1123367
|
4 G 6.0 | 14.2 | 343 | 437 | |
|
1123368
|
5 G 6.0 | 15.5 | 441 | 510 | |
|
1123369
|
7 G 6.0 | 17 | 510 | 662 | |
|
1123372
|
4 G 10.0 | 17.2 | 495 | 685 | |
|
1123373
|
5 G 10.0 | 19.5 | 592 | 824 | |
|
1123374
|
7 G 10.0 | 21.4 | 820 | 1067 | |
|
1123377
|
4 G 16.0 | 20.2 | 736 | 1036 | |
|
1123378
|
5 G 16.0 | 22.6 | 895 | 1285 | |
|
1123381
|
4 G 25.0 | 25.1 | 1129 | 1663 | |
|
1123382
|
5 G 25.0 | 28 | 1400 | 1976 | |
|
1123385
|
4 G 35.0 | 28.2 | 1546 | 2052 | |
