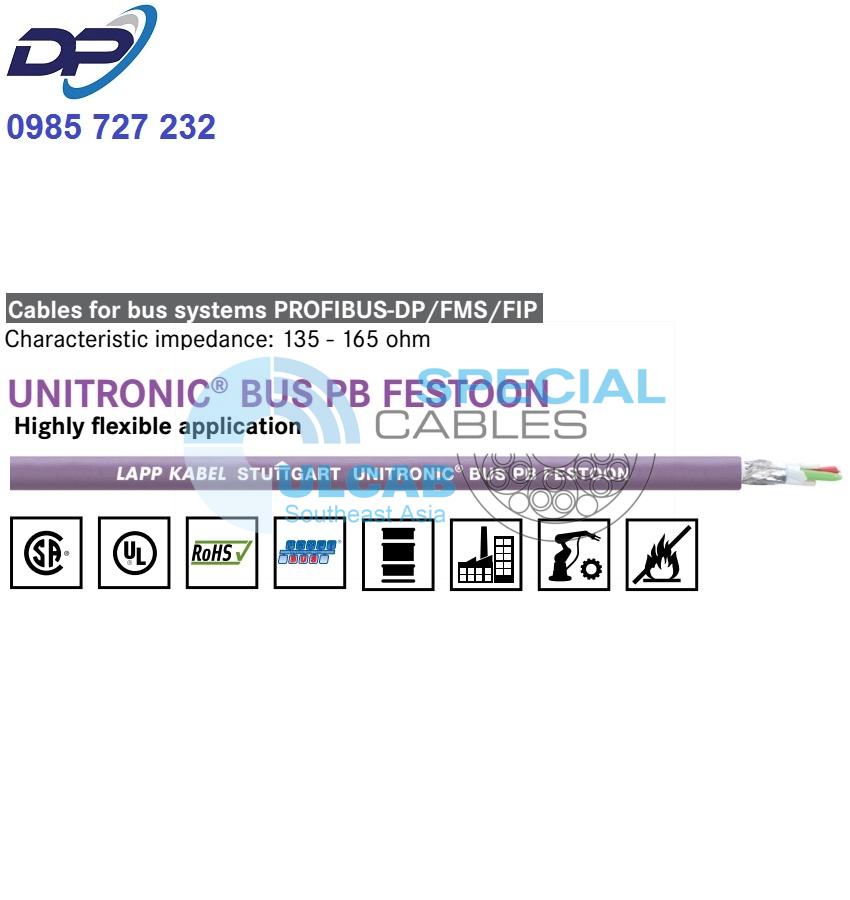

UNITRONIC® BUS PB FESTOON
Highly flexible application
Bus cable for PROFIBUS-DP, -FMS and FIP. UL/CSA certifications (CMG, CL3, SUN RES, Oil Res I), flame-retardant CSA FT4 UL, oil-resistant UL OIL RES I
Benefits
- Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
- CL3 for installation on trays
Application range
- PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP – Factory Instrumentation Protocol).
Product features
- FESTOON: for cable trolley (festoon mounting)
- Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
(cable type A, PROFIBUS-DP):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m
500 kbit/s = 400 m
1.5 Mbit/s = 200 m
12.0 Mbit/s = 100 m
Norm references / approvals
- With UL/CSA certifications (CMG, CL3, SUN RES, Oil Res I)
- Flame-retardant according to CSA FT4
UL Vertical-Tray Flame Test - Oil-resistant according to UL OIL RES I
Design
- Outer sheath: Special PVC compound
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- 600 V (not for power applications)
Minimum bending radius
- Flexing: 70 mm
- Fixed installation: 30 mm once
Test voltage
- Core/Core: 2000 V
Characteristic impedance
- 150 ±15 ohm
Temperature range
- Flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Article designation | Number of pairs and conductor diameter (mm) |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Highly flexible application | |||||
| 2170331 | UNITRONIC® BUS PB Festoon | 1 x 2 x 0.64 | 8 | 26 | 64 |
