UNITRONIC® BUS CC

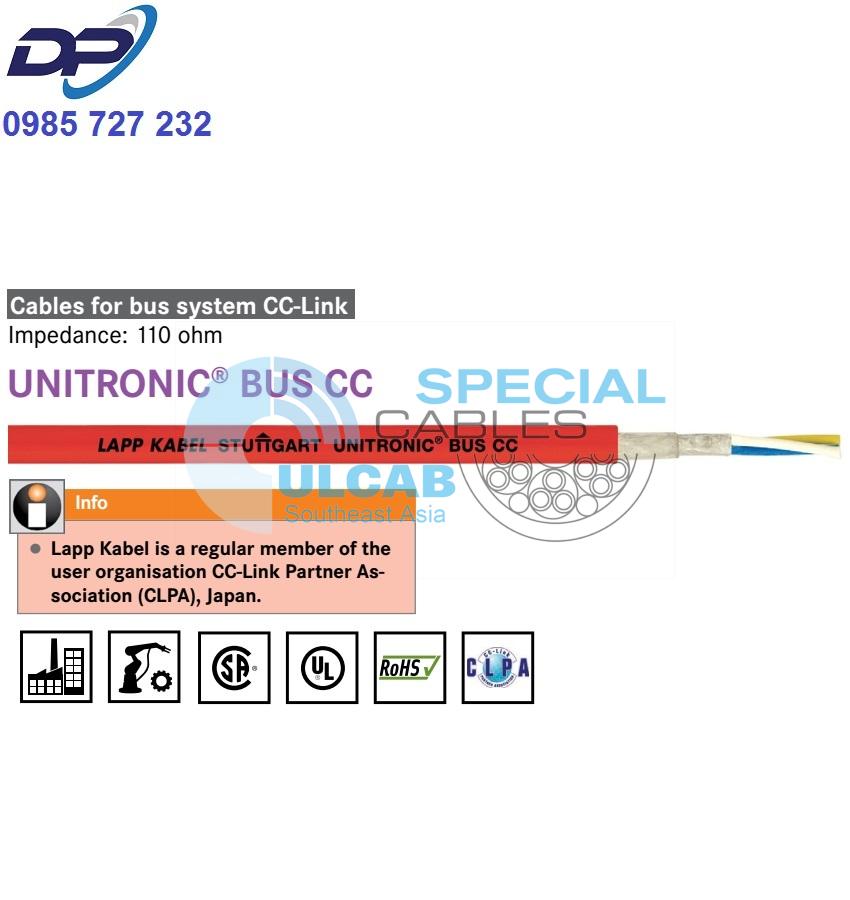

CC-Link provide efficient, integrated production and process automation. UV-resistant and flame-retardant. Temperature range from -40°C to +70°C
Lapp Kabel is a regular member of the user organisation CC-Link Partner Association (CLPA), Japan.
Benefits
- The CC-Link® system was developed by Mitsubishi Electric Automation, Japan.
- This CC-Link® bus cable has successfully passed the CC-Link Conformance Test in Japan.
Application range
- CC-Link® (Control & Communication Link) = fieldbus network, for both control as well as information data to ensure efficient, integrated manufacturing and process automation.
- Fixed installation of the CC-Link® network
Product features
- UV-resistant
- Flame-retardant according to CSA FT4
UL Vertical-Tray Flame Test - Transmission rate in relation to the distance
- 156 kbit/s 1.200 m
625 kbit/s 600 m
2,5 Mbit/s 200 m
5,0 Mbit/s 110-150 m
10 Mbit/s 50-100 m
Norm references / approvals
- CM UL/CSA certification 75°C or PLTC Sun Res
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- 300 V
Conductor resistance
- 11 ohm/1,000 ft. (305 m) at 20°C
Minimum bending radius
- 15 x outer diameter
Test voltage
- 2000 V
Characteristic impedance
- 110 ohm at 1 MHz
Temperature range
- -40°C to +70°C
| Article number | Article designation | Number of cores and AWG size | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® BUS CC | |||||
| 2170360 | UNITRONIC® BUS CC | 3 x 1 x AWG20 | 7.7 | 38.8 | 76.6 |
