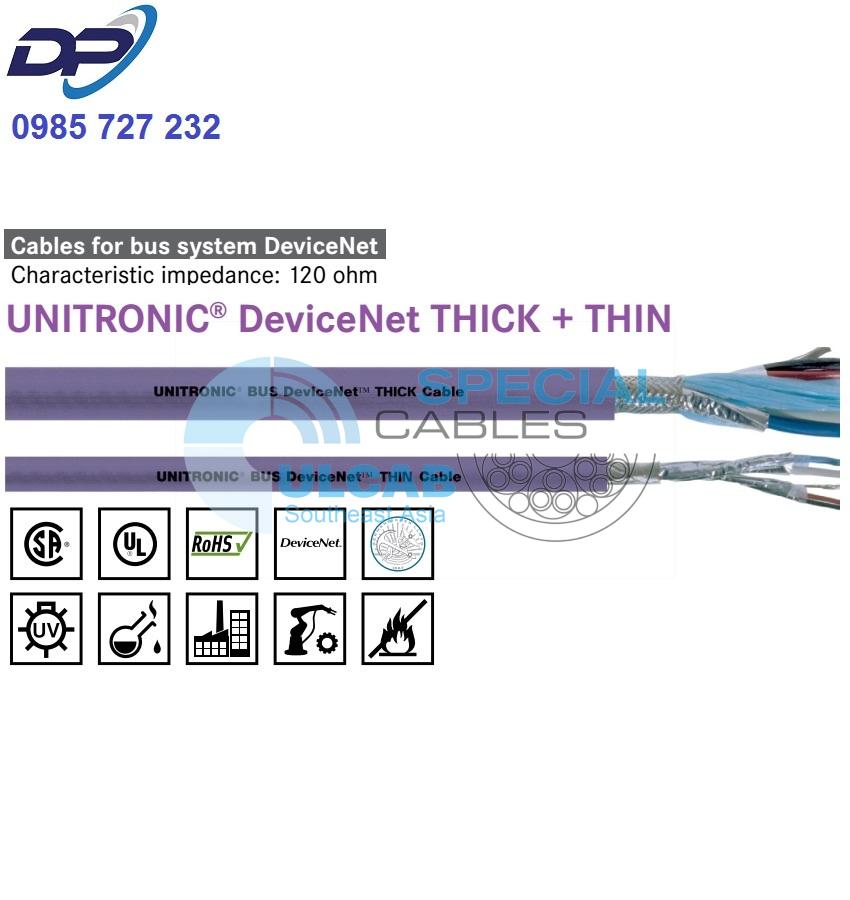

UNITRONIC® DeviceNet THICK + THIN
DeviceNet connects sensors, actuators and PLCs. Based on CAN technology. Germanischer Lloyd and UL/CSA-certified. Temperature range from -25°C to +80°C
Application range
- Fixed installation
- DeviceNetTM connects devices e.g. limit switches, photoelectric switches, valve islands, motor starters, drives, PLCs, etc.
Product features
- Resistant to many oils
- Based on proven CAN technology
- Permissible cable lengths vary with the data rate and the cable thickness
- FRNC version: Halogen-free and flame-retardant
- Refer to data sheet for more details
Norm references / approvals
- CMG UL/CSA certification 75°C or PLTC, Sun Res
- FRNC variant additionally with
Germanischer Lloyd certification
Design
- Core insulation made of foam skin
- Outer sheath: Halogen-free (FRNC) or
polyvinylchloride (PVC)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Core identification code
- Data pair: light blue + white
- Power supply: red + black
Operating capacitance
- (800 Hz): max. 39.8 nF/km
Peak operating voltage
- 300 V (not for power applications)
Conductor resistance
- THICK (loop): max. 45 ohm/km
- Thin (loop): max. 180 ohm/km
Minimum bending radius
- Fixed installation: 15 x outer diameter
Test voltage
- Core/Core: 2000 V
Characteristic impedance
- 120 ohm
Temperature range
- Fixed installation: -25°C to +80°C
| Article number | Article designation | Number of cores and AWG size | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Halogen-free | |||||
| 2170340 | UNITRONIC® BUS DN THICK FRNC | 1x2xAWG18 + 1x2xAWG15 | 12.2 | 88.4 | 195 |
| 2170341 | UNITRONIC® BUS DN THIN FRNC | 1x2xAWG24 + 1x2xAWG22 | 6.9 | 33.4 | 69.5 |
| With PVC outer sheath | |||||
| 2170342 | UNITRONIC®BUS DN THICK Y | 1x2xAWG18 + 1x2xAWG15 | 12.2 | 88.4 | 192 |
| 2170343 | UNITRONIC® BUS DN THIN Y | 1x2xAWG24 + 1x2xAWG22 | 6.9 | 33.4 | 66.9 |
