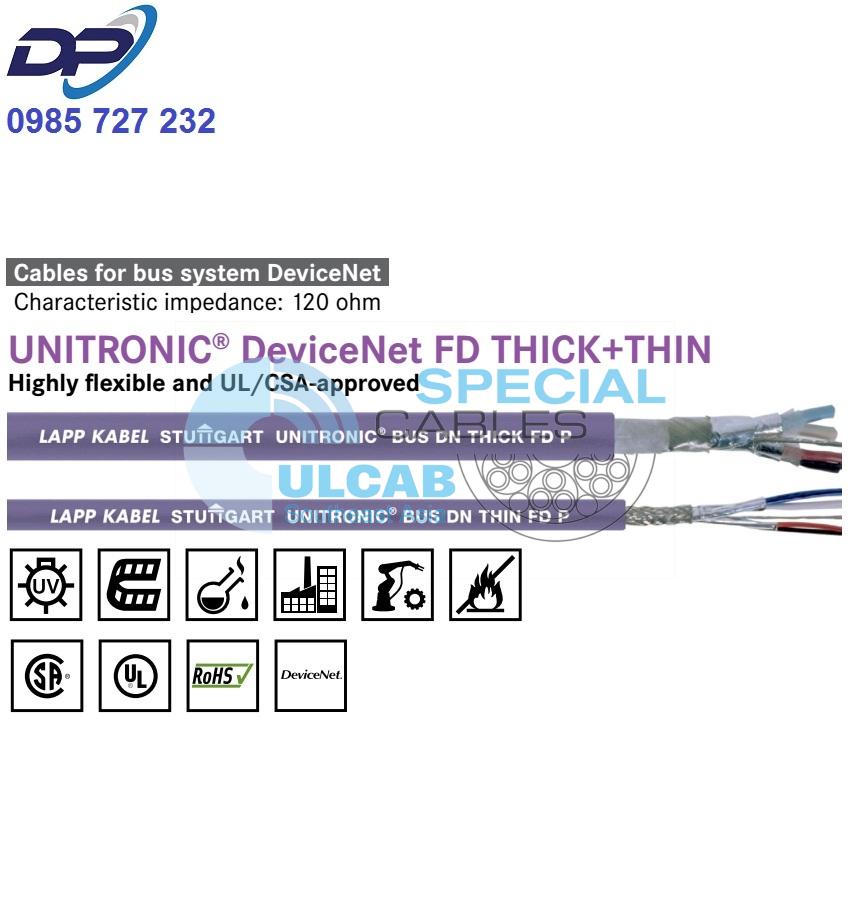

UNITRONIC® DeviceNet FD THICK+THIN
Highly flexible and UL/CSA-certified
DeviceNet connects sensors, actuators and PLCs to one another. Based on CAN technology. UL/CSA-certified. Temperature range from -40°C to +80°C
Application range
- For highly flexible applications
- DeviceNetTM connects devices e.g. limit switches, photoelectric switches, valve islands, motor starters, drives, PLCs, etc.
Product features
- Based on proven CAN technology
- Permissible cable lengths vary with the data rate and the cable thickness
- Refer to data sheet for more details
- PUR (P) version: Halogen-free
PVC (Y) version: Flame-resistant (UL FT4) - UV-resistant (colour may change over time)
Norm references / approvals
- PUR: UL/CSA-certified (CMX)
- PVC: UL/CSA CMG 75°C FT4 Sun Res Oil Res, at 2170346 also PLTC
Design
- Core insulation: Polyethylene (PE)
- Outer sheath made of polyurethane (PUR) or polyvinylchloride (PVC)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Core identification code
- Data pair: light blue + white
- Power supply: red + black
Operating capacitance
- (800 Hz): max. 39.8 nF/km
Peak operating voltage
- 300 V (not for power applications)
Conductor resistance
- THICK (loop): max. 45 ohm/km
- Thin (loop): max. 180 ohm/km
Minimum bending radius
- Fixed installation: 7.5 x outer diameter
- Flexing: 15 x outer diameter
Test voltage
- Core/Core: 2000 V
Characteristic impedance
- 120 ohm
Temperature range
- PUR: -40°C to +80°C
- PVC: -10°C to +80°C
| Article number | Article designation | Number of pairs and AWG size | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| Version P (PUR) | |||||
| 2170344 | UNITRONIC® BUS DN THICK FD P | 1x2xAWG18 + 1x2xAWG15 | 12.2 | 94 | 184 |
| 2170345 | UNITRONIC® BUS DN THIN FD P | 1x2xAWG24 + 1x2xAWG22 | 6.9 | 33.4 | 67.7 |
| Version Y (PVC) | |||||
| 2170346 | UNITRONIC®BUS DN THICK FD Y | 1x2xAWG18 + 1x2xAWG15 | 12.2 | 94 | 195 |
| 2170347 | UNITRONIC® BUS DN THIN FD Y | 1x2xAWG24 + 1x 2xAWG22 | 6.9 | 33.4 | 69.8 |
