Nhân Mạng Alantek ( 302-2QX6F1-18AB ) Modular Jack Cat 6 Shielded 180° Quick Crimp Keystone Jack | Chính Hãng – Giá Tốt Nhất

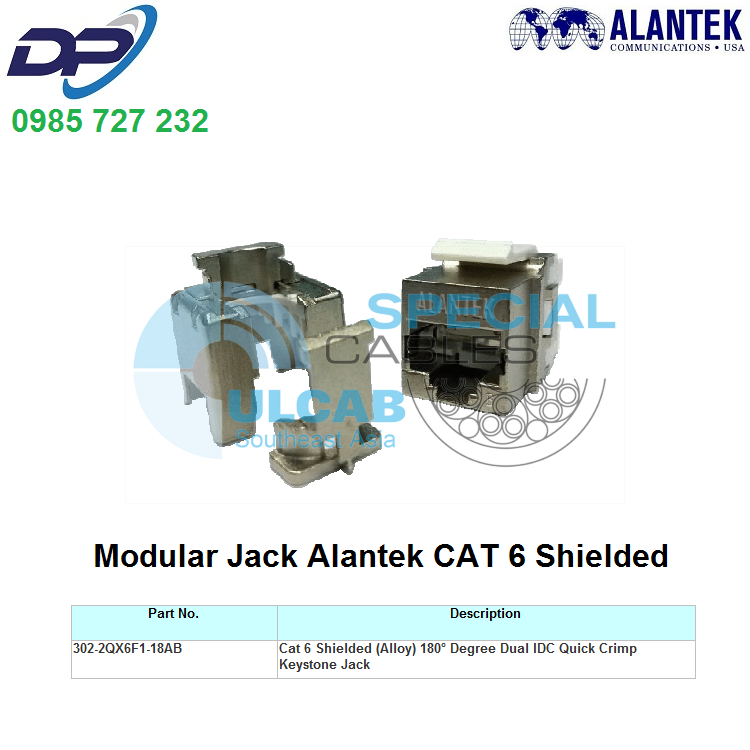

Cat 6 Shielded (Alloy) 180° Degree Dual IDC Quick Crimp Keystone Jack
Description
Alantek Cat6 Shielded (Alloy) 180° Degree Dual IDC Quick Crimp Keystone Jack are designed to provide superior performance, reliability and fast termination. It advanced circuit design and alloy body provide optimum signal quality, allowing it to exceed TIA/EIA and ISO Category 6 performance standards. Theslim design offers a smaller footprint maximizing space in confined area.
Application
Suitable for used in 10Base-T to Gigibit Ethernet application. Support all type of Alantek faceplate and Modular Patch Panel.
Standard
• ANSI/TIA 568C.2 Category 6
• ISO 11801 Class D Standard
• TIA/EIA TSB-40
• CENELEC EN50173
• UL 1863
• UL94V-0
Features
• Slim, Modular and Low Profile design allow high density application
• IDC is configured at 180° to Jack to allow easy reartermination and allow quick termination by Quick Crimp tool.
• Support both T568A and T568B wiring
• Support 10Base-T to Gigibit Ethernet application
Characteristics
• Insulation Resistance: 500 m-Ω @ 100V DC
• Dielectric Withstand Voltage: 1000 V AC/DC
• Peak to Peak : 60 Hz 1 min
• Housing: PC UL94V-0 (High Impact, Fire retardant plastic) enclosed by Zinc-Alloy housing
• Contact: Phosphor Bronze Alloy plated with 50 microngold
• 750 Cycles (min) Insertion and Extraction life
• IDC: Phosphor Bronze Alloy with 100 micron Sn Alloy
• Accept 22-24 AWG Solid Wire
| Part No. | Description |
| 302-2QX6F1-18AB | Cat 6 Shielded (Alloy) 180° Degree Dual IDC Quick Crimp Keystone Jack |
DATA SHEET
