Power and control cables
Various applications
Halogen-free

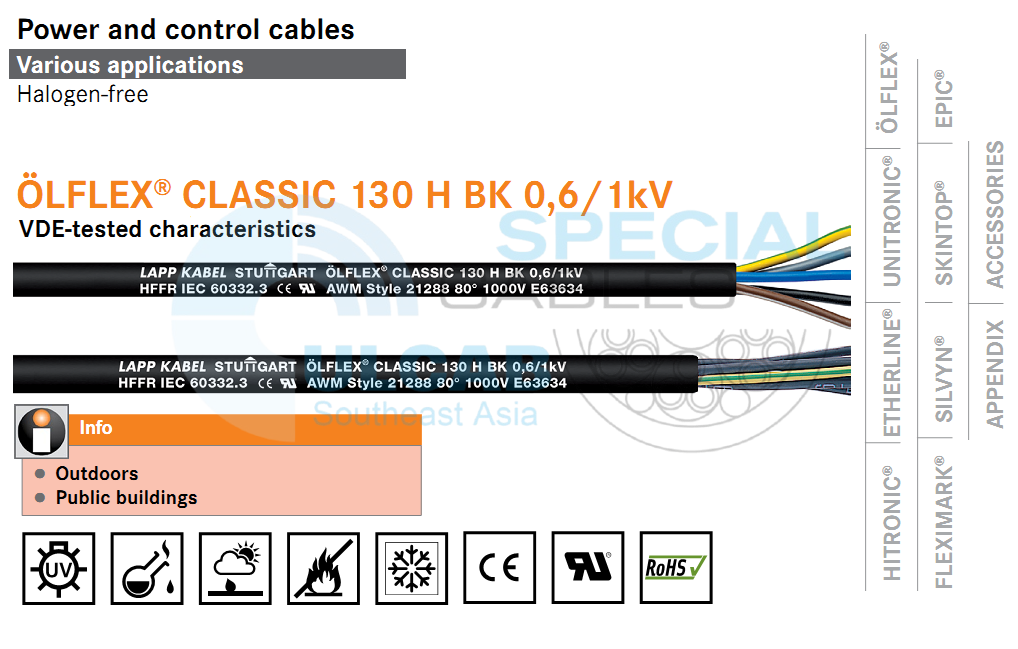

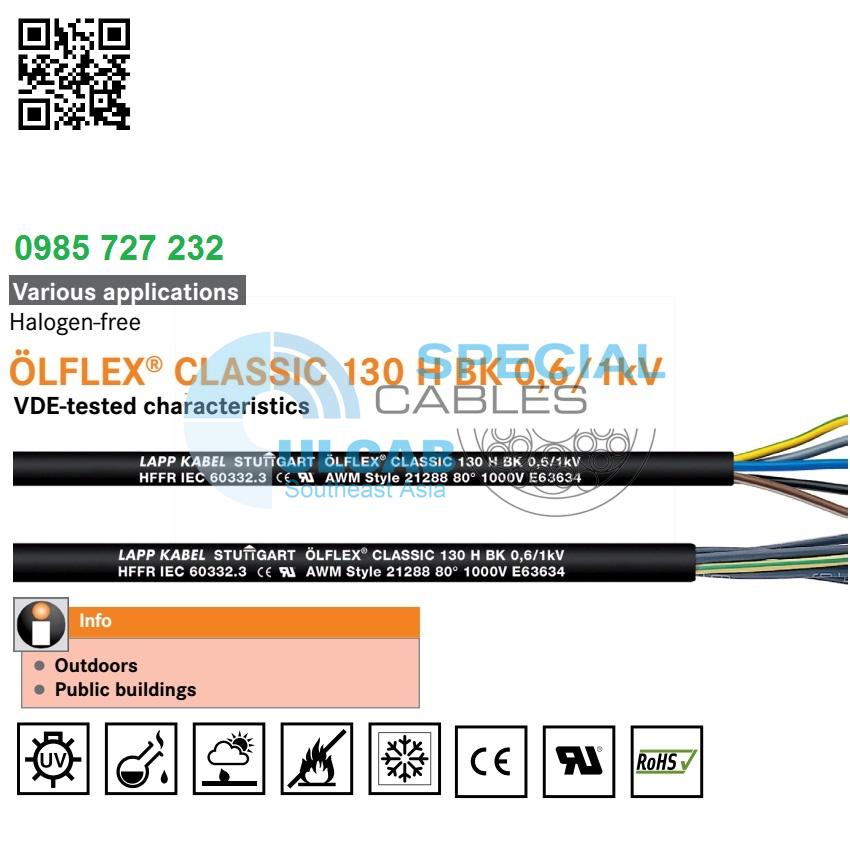

LAPP KABEL ÖLFLEX® CLASSIC 130 H BK 0.6/1 kV
0.6/1 kV, halogen-free, flexible, IEC 60332-3, IEC 61034-2, UV-/ozone-resistant, UL AWM 1000V
ÖLFLEX® CLASSIC 130 H BK 0.6/1 kV, UL AWM style 21156, power and control cable, halogen-free/highly flame retardant, conductor class 5, public buildings, outdoor
- Outdoors
- Public buildings
- UL AWM recognised
Benefits
- Easy installation due to flexible design
Application range
- Public buildings
- Plant construction
Machine building
Heating and air-conditioning systems - Particularly where human and animal life as well as valuable property are exposed to a high risk of fire hazards
- For outdoor applications
- According to NFPA 79, 2015 edition, section 12.9.2: Use for industrial machinery operated in the USA on the basis of UL AWM (recognized) certification
Product features
- Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable) - No flame propagation according to IEC 60332-3-24 or IEC 60332-3-25 (flame spread on vertical cable or conductor bunch)
- Halogen-free according to IEC 60754-1
(amount of halogen acidic gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity) - Low smoke density according to IEC 61034-2
- UV- and weather-resistant according to ISO 4892-2
- Ozone-resistant according to EN 50396
- UL Cable Flame Test
Norm references / approvals
- Based on EN 50525-3-11
- UL AWM (recognised) Style 21156 (outer sheath) with max. conductor temperature of +75°C according to UL
Design
- Finely stranded bare copper wires
- Core insulation: Halogen-free
- Sheath made of special halogen-free compound, black (RAL 9005)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: black with white numbers
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 600/1000 V
- UL: 1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -25°C to +70°C
Fixed installation: -40°C to +80°C - UL: +75°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 130 H 0.6/1 kV – coloured cores | ||||
| 1123410 | 2 X 1.0 | 8,6 | 19,2 | 107 |
| 1123411 | 3 G 1.0 | 9 | 28,8 | 123 |
| 1123412 | 4 G 1.0 | 9,6 | 38,4 | 144 |
| 1123413 | 5 G 1.0 | 10,4 | 48 | 167 |
| ÖLFLEX® CLASSIC 130 H 0.6/1 kV – numbered cores | ||||
| 1123414 | 7 G 1.0 | 11,1 | 67,2 | 206 |
| 1123415 | 12 G 1.0 | 14 | 115,2 | 314 |
| 1123416 | 18 G 1.0 | 16,1 | 172,8 | 428 |
| 1123417 | 25 G 1.0 | 18,6 | 240 | 569 |
| ÖLFLEX® CLASSIC 130 H 0.6/1 kV – coloured cores | ||||
| 1123418 | 2 X 1.5 | 9,6 | 28,8 | 137 |
| 1123419 | 3 G 1.5 | 10,1 | 43,2 | 161 |
| 1123420 | 4 G 1.5 | 10,8 | 57,6 | 190 |
| 1123421 | 5 G 1.5 | 11,7 | 72 | 221 |
| ÖLFLEX® CLASSIC 130 H 0.6/1 kV – numbered cores | ||||
| 1123422 | 7 G 1.5 | 12,6 | 100,8 | 276 |
| 1123423 | 12 G 1.5 | 16,1 | 172,8 | 427 |
| 1123424 | 18 G 1.5 | 18,8 | 259,2 | 596 |
| 1123425 | 25 G 1.5 | 21,7 | 360 | 799 |
| ÖLFLEX® CLASSIC 130 H 0.6/1 kV – coloured cores | ||||
| 1123426 | 2 X 2.5 | 10,8 | 48 | 184 |
| 1123427 | 3 G 2.5 | 11,3 | 72 | 219 |
| 1123428 | 4 G 2.5 | 12,2 | 96 | 262 |
| 1123429 | 5 G 2.5 | 13,3 | 120 | 307 |
| ÖLFLEX® CLASSIC 130 H 0.6/1 kV – numbered cores | ||||
| 1123430 | 7 G 2.5 | 14,4 | 168 | 390 |
| 1123431 | 12 G 2.5 | 18,7 | 288 | 624 |
| 1123432 | 18 G 2.5 | 22 | 432 | 879 |
| 1123433 | 25 G 2.5 | 25,8 | 600 | 1212 |
| ÖLFLEX® CLASSIC 130 H 0.6/1 kV – coloured cores | ||||
| 1123434 | 3 G 4 | 12,6 | 115,2 | 290 |
| 1123435 | 4 G 4 | 13,7 | 153,6 | 351 |
| 1123436 | 5 G 4 | 14,9 | 192 | 416 |
| 1123437 | 3 G 6 | 13,9 | 172,8 | 377 |
| 1123438 | 4 G 6 | 15,1 | 230,4 | 463 |
| 1123439 | 5 G 6 | 16,8 | 288 | 559 |
| 1123440 | 4 G 10 | 18,7 | 384 | 757 |
| 1123441 | 5 G 10 | 20,7 | 480 | 915 |
| 1123442 | 4 G 16 | 21,3 | 614,4 | 1070 |
| 1123443 | 5 G 16 | 23,6 | 768 | 1296 |
| 1123444 | 4 G 25 | 26,2 | 960 | 1631 |
