Power and control cables
Various applications
Halogen-free

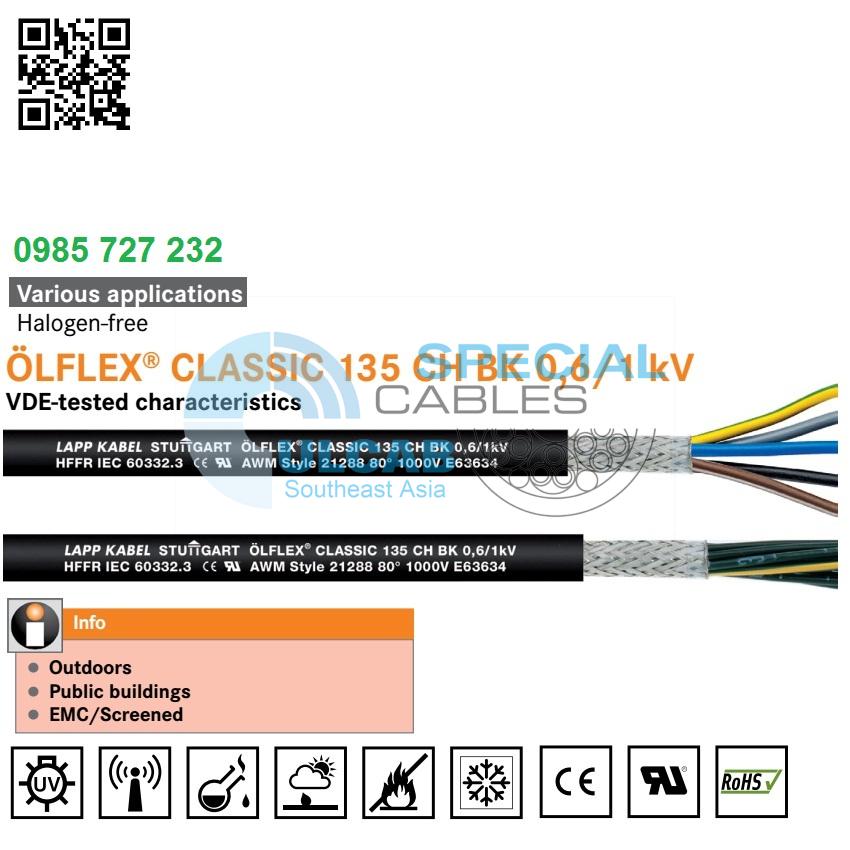

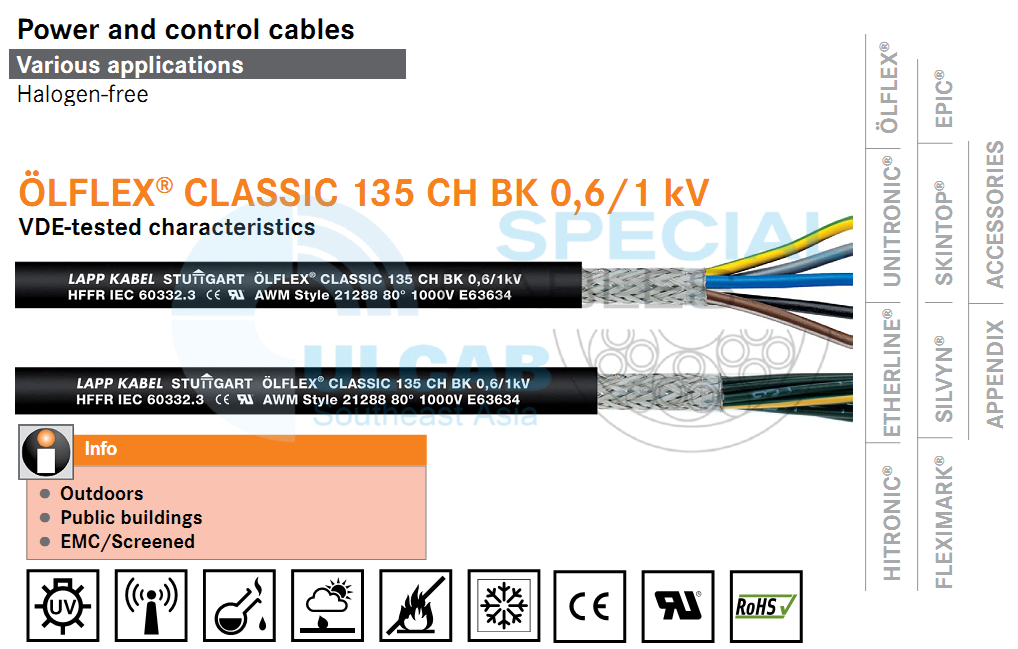

LAPP KABEL ÖLFLEX® CLASSIC 135 CH BK 0.6/1 kV
0.6/1 kV, halogen-free, flexible, IEC 60332-3, IEC 61034-2, UV-/ozone-resistant, UL AWM 1000V
ÖLFLEX® CLASSIC 135 CH BK 0.6/1 kV, UL AWM style 21156, power and control cable, shielded, halogen-free/highly flame retardant, public buildings, outdoor
- Outdoors
- Public buildings
- EMC/shielded
Benefits
- Easy installation due to flexible design
- Space-saving due to small cable diameters
Application range
- Public buildings
- Plant construction
Machine building
Heating and air-conditioning systems - Particularly where human and animal life as well as valuable property are exposed to a high risk of fire hazards
- For outdoor applications
- According to NFPA 79, 2015 edition, section 12.9.2: Use for industrial machinery operated in the USA on the basis of UL AWM (recognized) certification
Product features
- Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable) - No flame propagation according to IEC 60332-3-24 or IEC 60332-3-25 (flame spread on vertical cable or conductor bunch)
- Halogen-free according to IEC 60754-1
(amount of halogen acidic gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity) - Low smoke density according to IEC 61034-2
- UV- and weather-resistant according to ISO 4892-2
- Ozone-resistant according to EN 50396
- UL Cable Flame Test
Norm references / approvals
- Based on EN 50525-3-11
- UL AWM (recognised) Style 21156 (outer sheath) with max. conductor temperature of +75°C according to UL
Design
- Finely stranded bare copper wires
- Core insulation: Halogen-free
- Halogen-free plastic foil wrapping
- Tin-plated copper braiding
- Sheath made of special halogen-free compound, black (RAL 9005)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: black with white numbers
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 600/1000 V
- UL: 1000 V
Test voltage
- Core/Core: 4000 V
- Core/Shield: 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -25°C to +70°C
Fixed installation: -40°C to +80°C - UL: +75°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 135 CH 0.6/1 kV – coloured cores | ||||
| 1123460 | 2 X 1.0 | 9,4 | 39,5 | 120 |
| 1123461 | 3 G 1.0 | 9,8 | 51 | 140 |
| 1123462 | 4 G 1.0 | 10,4 | 62,8 | 165 |
| 1123463 | 5 G 1.0 | 11,2 | 76 | 191 |
| ÖLFLEX® CLASSIC 135 CH 0.6/1 kV – numbered cores | ||||
| 1123464 | 7 G 1.0 | 11,9 | 97,2 | 231 |
| 1123465 | 12 G 1.0 | 15 | 169,1 | 360 |
| 1123466 | 18 G 1.0 | 17,3 | 238,2 | 494 |
| 1123467 | 25 G 1.0 | 19,8 | 315,5 | 643 |
| ÖLFLEX® CLASSIC 135 CH 0.6/1 kV – coloured cores | ||||
| 1123468 | 2 X 1.5 | 10,4 | 53,2 | 149 |
| 1123469 | 3 G 1.5 | 10,9 | 69,5 | 177 |
| 1123470 | 4 G 1.5 | 11,6 | 86,5 | 209 |
| 1123471 | 5 G 1.5 | 12,5 | 104,3 | 243 |
| ÖLFLEX® CLASSIC 135 CH 0.6/1 kV – numbered cores | ||||
| 1123472 | 7 G 1.5 | 13,4 | 136,5 | 300 |
| 1123473 | 12 G 1.5 | 17,3 | 238,3 | 486 |
| 1123474 | 18 G 1.5 | 20,2 | 355,4 | 691 |
| 1123475 | 25 G 1.5 | 23,1 | 475,1 | 914 |
| ÖLFLEX® CLASSIC 135 CH 0.6/1 kV – coloured cores | ||||
| 1123476 | 2 X 2.5 | 11,6 | 79,4 | 197 |
| 1123477 | 3 G 2.5 | 12,1 | 106,1 | 243 |
| 1123478 | 4 G 2.5 | 13 | 134,3 | 293 |
| 1123479 | 5 G 2.5 | 14,1 | 158,3 | 342 |
| ÖLFLEX® CLASSIC 135 CH 0.6/1 kV – numbered cores | ||||
| 1123480 | 7 G 2.5 | 15,4 | 225 | 462 |
| 1123481 | 12 G 2.5 | 20,1 | 383,6 | 718 |
| 1123482 | 18 G 2.5 | 23,4 | 548,9 | 1011 |
| 1123483 | 25 G 2.5 | 27,4 | 761,7 | 1370 |
| ÖLFLEX® CLASSIC 135 CH 0.6/1 kV – coloured cores | ||||
| 1123484 | 3 G 4 | 13,4 | 167,7 | 327 |
| 1123485 | 4 G 4 | 14,7 | 211,9 | 399 |
| 1123486 | 5 G 4 | 15,9 | 250,3 | 471 |
| 1123487 | 3 G 6 | 14,9 | 232,1 | 414 |
| 1123488 | 4 G 6 | 16,1 | 298,5 | 519 |
| 1123489 | 5 G 6 | 17,8 | 356,1 | 607 |
| 1123490 | 4 G 10 | 20,1 | 490,6 | 837 |
| 1123491 | 5 G 10 | 21,9 | 586,6 | 995 |
| 1123492 | 4 G 16 | 22,5 | 735,1 | 1157 |
| 1123493 | 5 G 16 | 25 | 888,7 | 1407 |
| 1123494 | 4 G 25 | 27,8 | 1,126.6 | 1683 |
