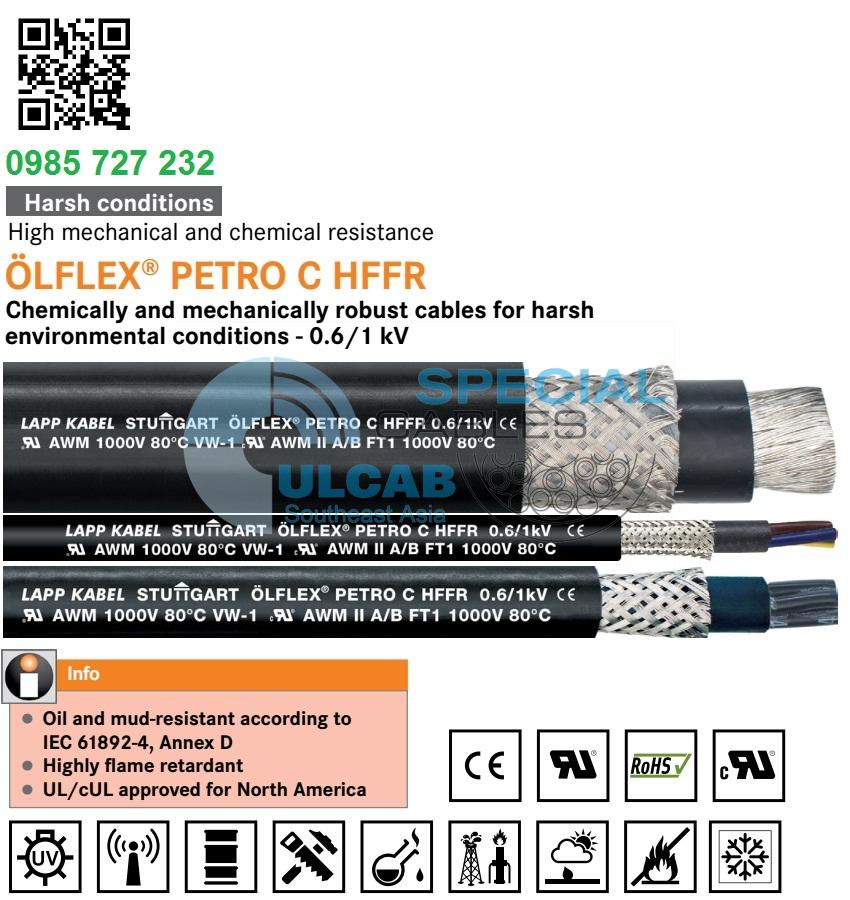

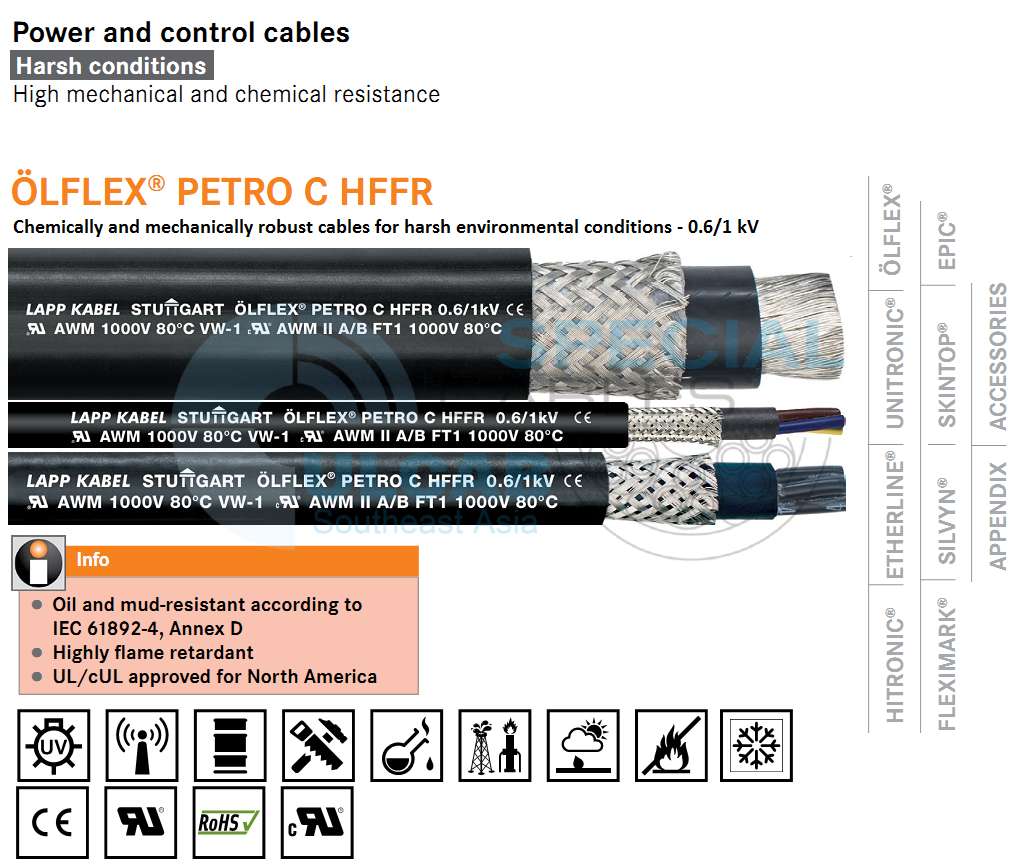

LAPP KABEL ÖLFLEX® PETRO C HFFR
Chemically and mechanically robust cable for harsh environmental conditions – certified
ÖLFLEX® PETRO C HFFR – shielded power and control cable with UL AWM certification for oil- and weather-resistant use in particularly harsh offshore conditions.
- Resistant to oil and drilling fluids
according to NEK TS 606:2009 (Oil & Mud) - Highly flame-retardant
- UL/cUL certified for North America
Benefits
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Reduced flame spreading for protection against damage to persons and property in the event of a fire
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
- The product can be used in many industries due to its mechanical, thermal and chemical properties
Application range
- Onshore and offshore applications
- For electrical connection of drilling units, pumping stations, compressors or generators in harsh environments
- Particularly in wet areas of machine tools and transfer lines
Product features
- Resistant to oil and drilling fluids according to NEK TS 606:2009 and IEC 61892-4
- Fire behaviour:
– Halogen-free according to VDE 0472-815
– Flame-retardant according to IEC 60332-1-2
– No flame propagation according to IEC 60332-3-22 cat. A - UV-resistant according to ISO 4892-2
- Ozone-resistant according to EN 50396
- Salt water-resistant according to UL 1309
Norm references / approvals
- Single core versions:
USA: UL AWM Style 11624
Canada: cUL AWM II A/B - Multi-core versions:
USA: UL AWM Style 20234
Canada: cUL AWM II A/B
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of polyolefin compound
- Cores twisted in layers
- Inner sheath made of halogen-free compound
- Tin-plated copper braiding
- Outer sheath made of robust special polymer, colour black
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Coloured according to VDE 0293-308, see appendix T9
- From 6 cores: black with white numbers
Fire test
- Flame-retardant according to IEC 60332-1-2,
UL VW-1, Cable Flame Test, CSA FT 1 - No flame propagation according to IEC 60332-3-22 test type A
Conductor design
- Fine wire according to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- IEC U0/U: 600/1000 V
- Up to 1.0 mm²: 300/500 V
Test voltage
- 4000 V
Temperature range
- Occasional flexing: -40°C to +90°C
according to UL/AWM: -40°C to +80°C - Fixed installation: -50°C to +90°C
according to UL/AWM: -50°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® PETRO C HFFR black – single core | ||||
| 0023249 | 1 X 70 | 19,3 | 737 | 948 |
| 0023250 | 1 X 95 | 21,6 | 1,002.0 | 1155 |
| 0023251 | 1 X 120 | 24,5 | 1,254.0 | 1463 |
| 0023248 | 1 X 150 | 26,1 | 1,553.0 | 1767 |
| 0023233 | 1 X 185 | 28,4 | 1,912.0 | 2349 |
| 0023234 | 1 X 240 | 32,6 | 2,475.0 | 2869 |
| 0023279 | 1 X 300 | 34,7 | 3,075.0 | 3817 |
| ÖLFLEX® PETRO C HFFR black – multi-core | ||||
| 0023275 | 3 G 0.5 | 10,1 | 36 | 140 |
| 0023274 | 2 X 1.0 | 10,5 | 41 | 149 |
| 0023252 | 2 X 1.5 | 11,5 | 57 | 183 |
| 0023253 | 3 G 1.5 | 12 | 72 | 212 |
| 0023254 | 4 G 1.5 | 12,8 | 90 | 249 |
| 0023255 | 5 G 1.5 | 14 | 115 | 307 |
| 0023256 | 7 G 1.5 | 15,9 | 151 | 401 |
| 0023239 | 12 G 1.5 | 18,8 | 238 | 573 |
| 0023257 | 18 G 1.5 | 22,3 | 350 | 846 |
| 0023240 | 25 G 1.5 | 26,6 | 490 | 1183 |
| 0023278 | 3 G 2.5 | 13,5 | 105 | 276 |
| 0023242 | 4 G 2.5 | 14,6 | 147 | 347 |
| 0023244 | 5 G 2.5 | 15,7 | 171 | 401 |
| 0023245 | 7 G 2.5 | 18,3 | 233 | 547 |
| 0023258 | 12 G 2.5 | 22,3 | 378 | 840 |
| 0023260 | 4 G 4 | 16,2 | 212 | 457 |
| 0023266 | 5 G 4 | 17,6 | 250 | 540 |
| 0023261 | 4 G 6 | 17,7 | 288 | 558 |
| 0023268 | 5 G 6 | 19,9 | 367 | 710 |
| 0023280 | 4 G 10 | 22,3 | 474 | 882 |
| 0023272 | 5 G 10 | 24,3 | 582 | 1069 |
| 0023281 | 4 G 16 | 24,9 | 716 | 1208 |
| 0023269 | 5 G 16 | 27,6 | 881 | 1483 |
| 0023267 | 4 G 25 | 30,2 | 1,096.0 | 1785 |
| 0023270 | 5 G 25 | 33,4 | 1,371.0 | 2206 |
| 0023262 | 4 G 35 | 33,6 | 1,515.0 | 2314 |
| 0023282 | 5 G 35 | 37,1 | 1,875.0 | 2847 |
| 0023246 | 4 G 50 | 39,3 | 2,140.0 | 3264 |
| 0023271 | 5 G 50 | 43,4 | 2,620.0 | 4002 |
| ÖLFLEX® PETRO C HFFR blue – multi-core | ||||
| 0023276 | 3 G 0.5 | 10,1 | 36 | 140 |
| 0023273 | 2 X 1.0 | 10,5 | 41 | 147 |
| 0023263 | 2 X 1.5 | 11,5 | 57 | 183 |
| 0023283 | 3 G 1.5 | 12 | 72 | 212 |
| 0023237 | 4 G 1.5 | 12,8 | 90 | 249 |
| 0023284 | 5 G 1.5 | 14 | 115 | 307 |
| 0023238 | 7 G 1.5 | 15,9 | 151 | 401 |
| 0023264 | 12 G 1.5 | 18,8 | 238 | 573 |
| 0023265 | 25 G 1.5 | 26,6 | 490 | 1183 |
