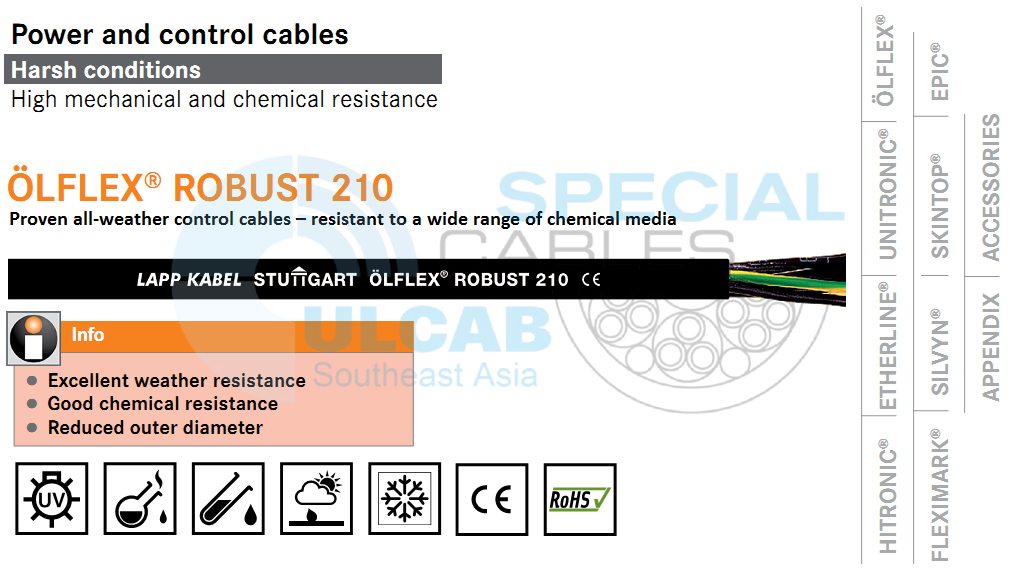

Power and control cables
Harsh conditions
High mechanical and chemical resistance

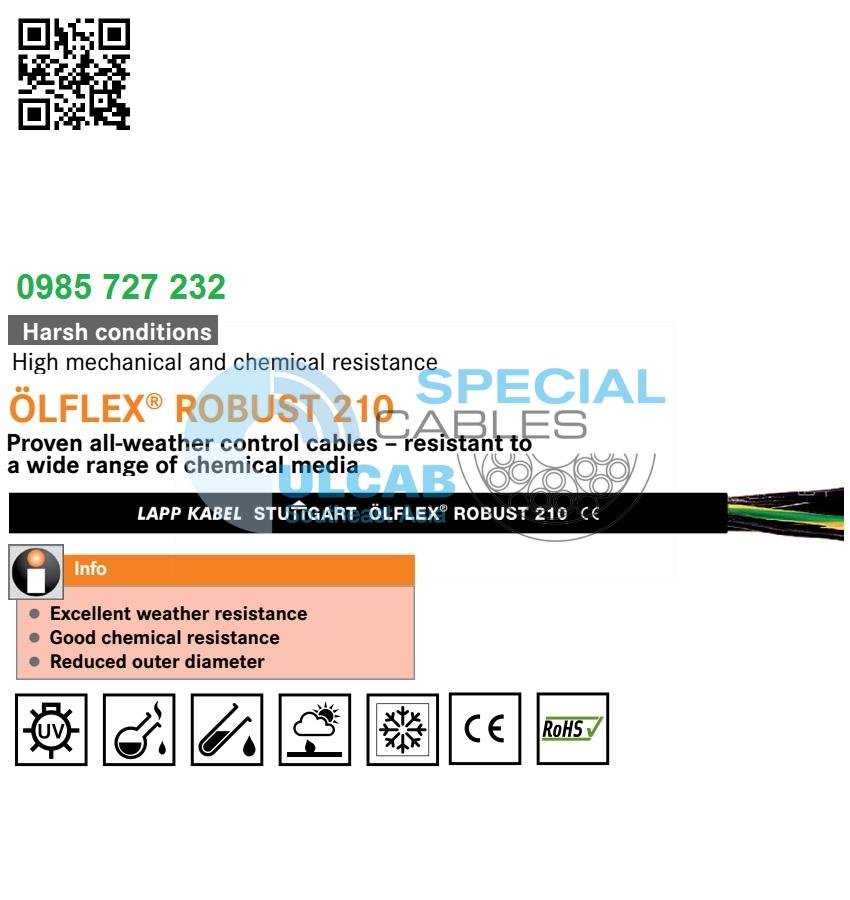

LAPP KABEL ÖLFLEX® ROBUST 210

Tried-and-tested all-weather control cable – resistant to a wide range of chemical media

ÖLFLEX® ROBUST 210 – control cable, weather-resistant, bio-oil-resistant, detergent-resistant and hot-water-resistant for use in the food industry and in composting plants.

  • Excellent weather-resistance
  • Good chemical resistance
  • Reduced outer diameter

UV-resistant Halogen-free Good chemical resistance Suitable for outdoor use Cold-resistant

Benefits

  • Outstanding weather, ozone and UV resistance together with the wide temperature range enable versatile use for indoor and outdoor applications
  • Resistant to contact with bio-oils, fats, waxes and their emulsions with a plant, animal or synthetic basis
  • ​Good resistance to ammonia compounds and biogases
  • Good resistance to cold and hot water as well as water-soluble cleaning agents
  • Suitable for frequent steam cleaning

Application range

  • Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
  • Food and beverage industry, especially for production and processing of milk and meat products
  • Agricultural equipment
  • For indoor and outdoor use

Product features

  • Good chemical resistance to ester-based hydraulic fluids
  • Ozone-, UV- and weather-resistant according to EN 50396 and HD 605 S2
  • Flexible at temperatures down to -40 °C
  • Low-capacitance design
  • Number cores

Norm references / approvals

  • Based on VDE 0250 / 0285
  • Certified resistance to disinfectant and cleaning solutions used in food and beverage industry

Design

  • Fine-wire, bare copper conductor
  • Core insulation made of modified PP
  • Cores twisted in layers
  • Outer sheath made of special TPE
  • Sheath colour: black

■ Technical data

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Black with white numbers acc. to VDE 0293-1

Conductor design

  • Fine wire according to VDE 0295,
    class 5 / IEC 60228 class 5

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 4 x outer diameter

Nominal voltage

  • U0/U: 300/500 V

Test voltage

  • 4000 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Temperature range

  • Occasional flexing: -40°C to +80°C
  • Fixed installation: -50°C to +80°C
Article
number		 Number of cores and
mm² per conductor		 Outer diameter
(mm)		 Copper index
(kg/km)		 Weight
(kg/km)
ÖLFLEX® ROBUST 210
0021880 2 X 0.5  4,9 10 27
0021881 3 G 0.5  5,2 15 33
0021882 3 X 0.5  5,2 15 33
0021883 4 G 0.5  5,8 19,2 41
0021884 4 X 0.5  5,8 19,2 41
0021885 5 G 0.5  6,3 24 49
0021886 5 X 0.5  6,3 24 49
0021888 7 G 0.5  6,9 33,6 64
0021889 7 X 0.5  6,9 33,6 64
0021890 10 G 0.5  8,8 48 92
0021891 12 G 0.5  9,1 58 106
0021892 18 G 0.5  10,8 86,4 151
0021893 25 G 0.5  12,7 120 210
0021897 2 X 0.75  5,5 14,4 35
0021898 3 G 0.75  5,8 21,6 43
0021899 3 X 0.75  5,8 21,6 43
0021900 4 G 0.75  6,3 28,8 49
0021901 4 X 0.75  6,3 28,8 49
0021902 5 G 0.75  6,9 36 66
0021903 5 X 0.75  6,9 36 66
0021904 7 G 0.75  7,5 50 85
0021905 7 X 0.75  7,5 50 85
0021907 12 G 0.75  10,1 86 144
0021908 18 G 0.75  12 130 208
0021909 25 G 0.75  14,1 180 288
0021910 34 G 0.75  16,3 245 386
0021911 41 G 0.75  17,8 296 464
0021912 50 G 0.75  19,6 360 560
0021913 2 X 1.0  5,8 19,2 42
0021914 3 G 1.0  6,1 28,8 49
0021915 3 X 1.0  6,1 28,8 49
0021916 4 G 1.0  6,6 38,4 63
0021917 4 X 1.0  6,6 38,4 63
0021918 5 G 1.0  7,3 48 78
0021919 5 X 1.0  7,3 48 78
0021920 7 G 1.0  8,1 67 107
0021921 10 G 1.0  10,4 96 154
0021922 12 G 1.0  10,7 115 178
0021923 18 G 1.0  12,9 173 262
0021924 25 G 1.0  15 240 357
0021925 34 G 1.0  17,5 326 484
0021926 41 G 1.0  19,2 394 582
0021927 50 G 1.0  21 480 703
0021928 2 X 1.5  6,4 29 56
0021929 3 G 1.5  6,8 43 72
0021930 3 X 1.5  6,8 43 72
0021931 4 G 1.5  7,4 58 91
0021932 4 X 1.5  7,4 58 91
0021933 5 G 1.5  8,3 72 108
0021934 5 X 1.5  8,3 72 108
0021936 7 G 1.5  9 101 149
0021937 7 X 1.5  9 101 149
0021938 10 G 1.5  11,8 143 215
0021940 12 G 1.5  12,2 173 234
0021941 18 G 1.5  14,6 259 369
0021942 25 G 1.5  17,2 360 510
0021943 34 G 1.5  19,8 490 683
0021945 50 G 1.5  24 720 999
0021946 2 X 2.5  7,6 48 86
0021947 3 G 2.5  8,3 72 115
0021949 4 G 2.5  9 96 131
0021951 5 G 2.5  10,1 120 178
0021953 7 G 2.5  11,2 168 241
0021954 12 G 2.5  15,1 288 405
0021963 3 G 4  10,1 115 180
0021964 4 G 4  11,1 157 228
0021965 5 G 4  12,4 192 280
0021966 7 G 4  13,6 269 377
0021967 4 G 6  13,3 230 332
0021968 5 G 6  14,8 288 407
0021969 4 G 10  16,5 384 541
0021970 5 G 10  18,4 480 620
0021971 4 G 16  18,8 614,4 806
0021972 4 G 25  23,5 960 1218
0021973 4 G 35  26,4 1,344.0  1658

■ Similar products
▯ ÖLFLEX® ROBUST 200

▯ ÖLFLEX® ROBUST 215 C
■ Accessories
▯ FLEXIMARK® Stainless steel kit

▯ SKINTOP® MS-M

▯ SKINTOP® ST-HF-M

▯ SKINTOP® BS-M METAL / SKINTOP® BSR-M METAL

NOTE:

Unless otherwise specified, the product values shown are nominal values. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
Copper price basis: EUR 150/100 kg; see catalogue appendix T17 for the application and definition of “Metal price basis” and “Metal index”
Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
Packaging: Ring ≤ 30 kg or ≤ 250 m, otherwise drum
Please specify the preferred packaging (e.g. 1 x 500 m drum or 5 x 100 m rings)
Single lengths for dimensions: ≥ 4G16 max. 600 m; ≥ 4G25 max. 300 m; ≥ 4G50 max. 250 m
Photographs are not to scale and do not represent detailed images of the respective products.
