Power and control cables
Harsh conditions
High mechanical and chemical resistance

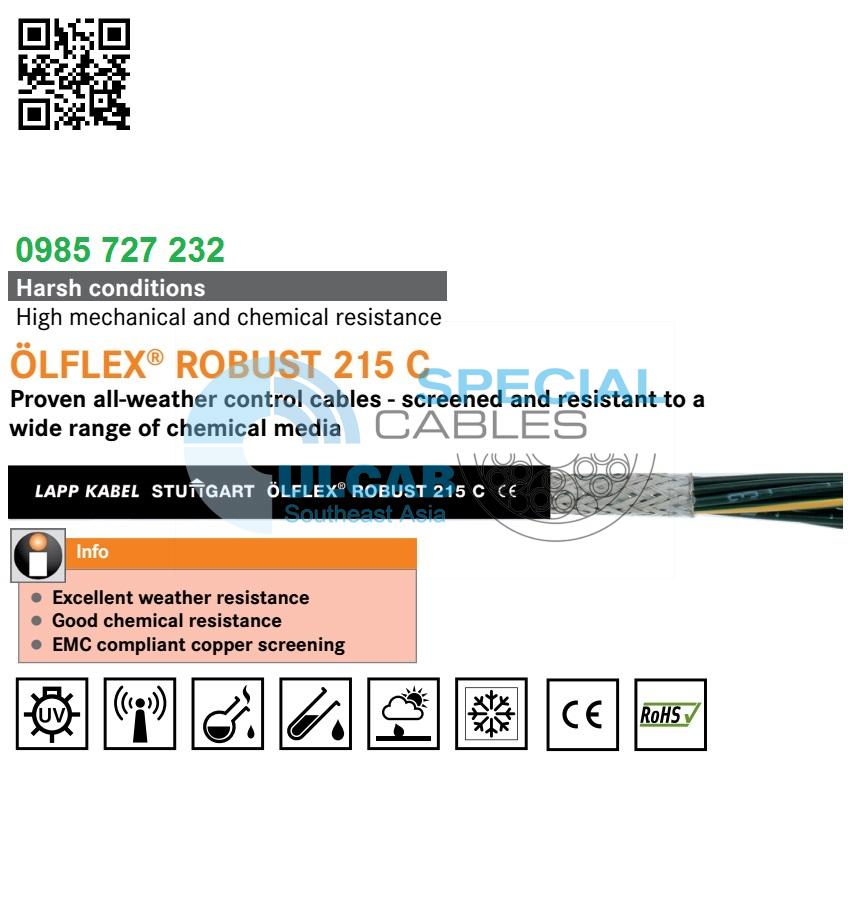

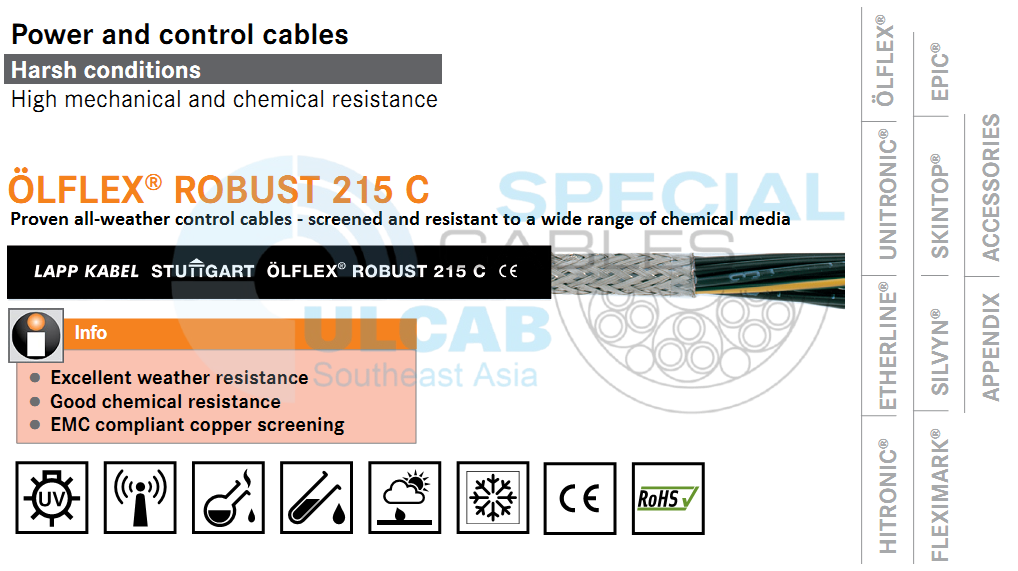

LAPP KABEL ÖLFLEX® ROBUST 215 C
Tried-and-tested all-weather control cable – shielded and resistant to a wide range of chemical media
ÖLFLEX® ROBUST 215 – shielded control cable, weather-resistant, bio-oil-resistant, detergent-resistant and hot-water-resistant for use in the food industry and in composting plants.
- Excellent weather-resistance
- Good chemical resistance
- EMC-compliant copper shielding
Benefits
- Outstanding weather, ozone and UV resistance together with the wide temperature range enable versatile use for indoor and outdoor applications
- Resistant to contact with bio-oils, fats, waxes and their emulsions with a plant, animal or synthetic basis
- Good resistance to ammonia compounds and biogases
- Good resistance to cold and hot water as well as water-soluble cleaning agents
- Suitable for frequent steam cleaning
Application range
- Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
- Food and beverage industry, especially for production and processing of milk and meat products
- Agricultural equipment
- For indoor and outdoor use
- In EMC-sensitive environments
(electromagnetic compatibility)
Product features
- Good chemical resistance to ester-based hydraulic fluids
- Ozone-, UV- and weather-resistant according to EN 50396 and HD 605 S2
- Flexible at temperatures down to -40 °C
- Low-capacitance design
- Number cores
Norm references / approvals
- Based on VDE 0250 / 0285
- Certified resistance to disinfectant and cleaning solutions used in food and beverage industry
Design
- Fine-wire, bare copper conductor
- Core insulation made of modified PP
- Cores twisted in layers
- Halogen-free plastic foil wrapping
- Tin-plated copper braiding
- Outer sheath made of special TPE
- Sheath colour: black
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- Core/Core: 4000 V
- Core/Shield: 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -40°C to +80°C
- Fixed installation: -50°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® ROBUST 215 C | ||||
| 0022700 | 2 X 0.5 | 5,9 | 36 | 42 |
| 0022701 | 3 G 0.5 | 6,2 | 43 | 52 |
| 0022702 | 3 X 0.5 | 6,2 | 43 | 52 |
| 0022703 | 4 G 0.5 | 6,6 | 49 | 59 |
| 0022704 | 4 X 0.5 | 6,6 | 49 | 59 |
| 0022705 | 5 G 0.5 | 7,1 | 57 | 68 |
| 0022706 | 5 X 0.5 | 7,1 | 57 | 68 |
| 0022708 | 7 G 0.5 | 7,7 | 69 | 85 |
| 0022709 | 7 X 0.5 | 7,7 | 69 | 85 |
| 0022711 | 12 G 0.5 | 10,1 | 104 | 136 |
| 0022712 | 18 G 0.5 | 11,8 | 141 | 189 |
| 0022713 | 25 G 0.5 | 13,7 | 211 | 265 |
| 0022717 | 2 X 0.75 | 6,3 | 43 | 50 |
| 0022718 | 3 G 0.75 | 6,6 | 52 | 60 |
| 0022719 | 3 X 0.75 | 6,6 | 52 | 60 |
| 0022720 | 4 G 0.75 | 7,1 | 61 | 72 |
| 0022721 | 4 X 0.75 | 7,1 | 61 | 72 |
| 0022722 | 5 G 0.75 | 7,9 | 72 | 88 |
| 0022723 | 5 X 0.75 | 7,9 | 72 | 88 |
| 0022724 | 7 G 0.75 | 8,5 | 89 | 110 |
| 0022725 | 7 X 0.75 | 8,5 | 89 | 110 |
| 0022727 | 12 G 0.75 | 11,1 | 138 | 177 |
| 0022728 | 18 G 0.75 | 13 | 211 | 247 |
| 0022729 | 25 G 0.75 | 15,1 | 280 | 347 |
| 0022730 | 34 G 0.75 | 17,5 | 380 | 460 |
| 0022733 | 2 X 1.0 | 6,6 | 51 | 60 |
| 0022734 | 3 G 1.0 | 6,9 | 62 | 70 |
| 0022735 | 3 X 1.0 | 6,9 | 62 | 70 |
| 0022736 | 4 G 1.0 | 7,4 | 74 | 85 |
| 0022737 | 4 X 1.0 | 7,4 | 74 | 85 |
| 0022738 | 5 G 1.0 | 8,3 | 88 | 103 |
| 0022739 | 5 X 1.0 | 8,3 | 88 | 103 |
| 0022740 | 7 G 1.0 | 8,9 | 112 | 131 |
| 0022742 | 12 G 1.0 | 11,7 | 185 | 213 |
| 0022743 | 18 G 1.0 | 14,1 | 268 | 321 |
| 0022744 | 25 G 1.0 | 16,2 | 354 | 425 |
| 0022748 | 2 X 1.5 | 7,2 | 65 | 71 |
| 0022749 | 3 G 1.5 | 7,6 | 82 | 90 |
| 0022750 | 3 X 1.5 | 7,6 | 82 | 90 |
| 0022751 | 4 G 1.5 | 8,4 | 100 | 114 |
| 0022752 | 4 X 1.5 | 8,4 | 100 | 114 |
| 0022753 | 5 G 1.5 | 9,1 | 119 | 136 |
| 0022754 | 5 X 1.5 | 9,1 | 119 | 136 |
| 0022756 | 7 G 1.5 | 10 | 154 | 177 |
| 0022757 | 7 X 1.5 | 10 | 154 | 177 |
| 0022760 | 12 G 1.5 | 13,4 | 268 | 290 |
| 0022761 | 18 G 1.5 | 15,8 | 373 | 435 |
| 0022762 | 25 G 1.5 | 18,2 | 530 | 579 |
| 0022763 | 34 G 1.5 | 21,2 | 683 | 797 |
| 0022767 | 3 G 2.5 | 9,1 | 118 | 134 |
| 0022768 | 4 G 2.5 | 10 | 147 | 169 |
| 0022769 | 5 G 2.5 | 11,1 | 176 | 207 |
| 0022770 | 7 G 2.5 | 12 | 253 | 270 |
| 0022774 | 4 G 4 | 11,9 | 190 | 258 |
| 0022776 | 4 G 6 | 14,5 | 290 | 392 |
| 0022777 | 4 G 10 | 17,5 | 458 | 602 |
| 0022778 | 4 G 16 | 20,2 | 736,6 | 928 |
| 0022771 | 4 G 25 | 25,1 | 1,126.7 | 1411 |
| 0022780 | 4 G 35 | 28 | 1,540.0 | 1883 |
■ Similar products
▯ ÖLFLEX® CLASSIC 135 CH BK 0.6/1 kV
■ Accessories
▯ SKINTOP® BRUSH ADD-ON
▯ SKINTOP® MS-SC-M
▯ SKINTOP® MS-M BRUSH
▯ SKINTOP® MS-HF-M SC
▯ SKINTOP® MS-HF-M BRUSH
NOTE:
Unless otherwise specified, the product values shown are nominal values. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
Copper price basis: EUR 150/100 kg; see catalogue appendix T17 for the application and definition of “Metal price basis” and “Metal index”
Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
Packaging: Ring ≤ 30 kg or ≤ 250 m, otherwise drum
Please specify the preferred packaging (e.g. 1 x 500 m drum or 5 x 100 m rings)
Single lengths for dimensions: ≥ 4G16 max. 600 m; ≥ 4G25 max. 300 m; ≥ 4G50 max. 250 m
Photographs are not to scale and do not represent detailed images of the respective products.
