Power and control cables
Harsh conditions
High mechanical and chemical resistance

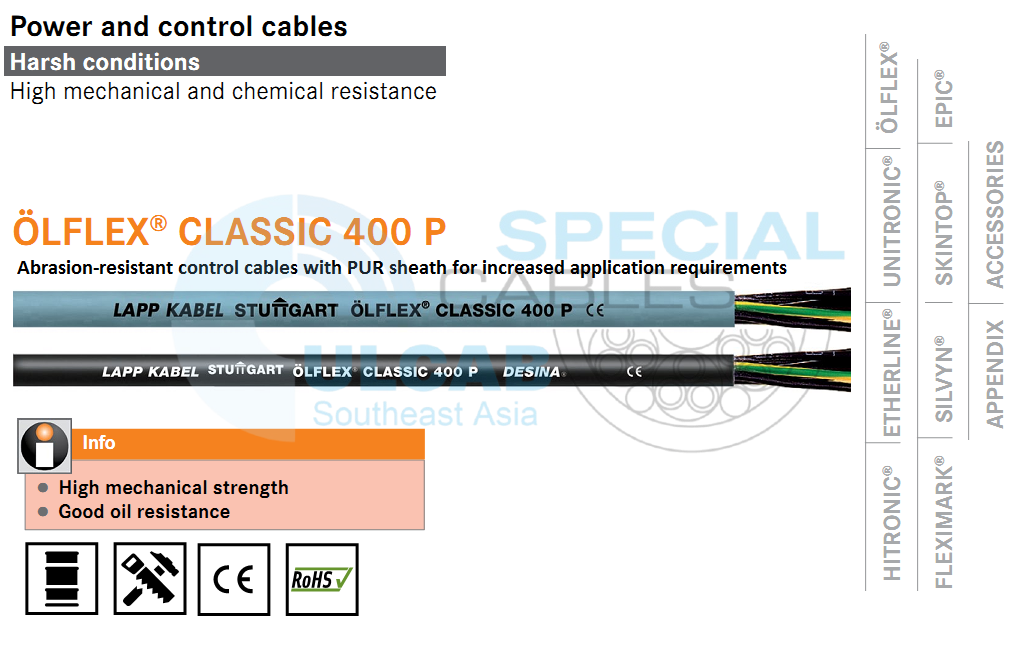

LAPP KABEL ÖLFLEX® CLASSIC 400 P

Abrasion-resistant and oil-resistant control cable with PUR sheath for increased application requirements

ÖLFLEX® 400 P – PUR control cable for oil-, notch- and abrasion-resistant application in industrial machinery and machine tools, in apparatus construction and measuring and regulation technology.

  • High mechanical strength
  • Good oil resistance
  • The classic for multi-functional use

Oil-resistant Mechanical resistance

Benefits

  • Durable under harsh conditions thanks to robust PUR sheath material
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Compatible with a multitude of acidic cleaning and disinfection agents
  • Also available as DESINA®-compliant power cable with black outer sheath colour

Application range

  • Industrial machinery and machine tools
  • Measurement, regulation and electrical applications
  • Food production and packaging machinery
  • Very suitable for oily wet areas within machine tools and transfer lines that are subject to normal mechanical stress
  • Outdoor use is possible within the indicated temperature range

Product features

  • High oil resistance
  • Abrasion-resistant and notch-resistant
  • Low-adhesive surface
  • Resistant to hydrolysis and microbes

Norm references / approvals

  • Based on VDE 0285
  • Certified resistance to disinfectant and cleaning solutions used in food and beverage industry

Design

  • Fine-wire, bare copper conductor
  • Core insulation: Special PVC
  • Cores twisted in layers
  • Special polyurethane sheath (PUR)
  • Sheath colour: Silver grey (RAL 7001)
  • DESINA®-compliant: Black (RAL 9005)

■ Technical data

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Black with white numbers acc. to VDE 0293-1

Conductor design

  • Fine wire according to VDE 0295,
    class 5 / IEC 60228 class 5

Minimum bending radius

  • Flexible use: 12.5 x outer diameter
  • Fixed installation: 4 x outer diameter

Nominal voltage

  • U0/U: 300/500 V

Test voltage

  • 4000 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Article
number		 Number of cores and
mm² per conductor		 Outer diameter
(mm)		 Copper index
(kg/km)		 Weight
(kg/km)
ÖLFLEX® CLASSIC 400 P – sheath colour: grey
1312802 2 X 0.5  4,8 10 32
1312003 3 G 0.5  5,1 15 43
1312803 3 X 0.5  5,1 15 43
1312004 4 G 0.5  5,7 19,2 50
1312804 4 X 0.5  5,7 19,2 50
1312005 5 G 0.5  6,2 24 59
1312805 5 X 0.5  6,2 24 59
1312007 7 G 0.5  6,7 34 73
1312807 7 X 0.5  6,7 34 73
1312010 10 G 0.5  8,6 48 109
1312012 12 G 0.5  8,9 57,6 125
1312018 18 G 0.5  10,5 87 180
1312025 25 G 0.5  12,4 120 250
1312034 34 G 0.5  14,3 164 333
1312041 41 G 0.5  15,7 197 400
1312852 2 X 0.75  5,4 14,4 41
1312103 3 G 0.75  5,7 21,6 51
1312853 3 X 0.75  5,7 21,6 51
1312104 4 G 0.75  6,2 28,8 62
1312854 4 X 0.75  6,2 28,8 62
1312105 5 G 0.75  6,7 36 74
1312855 5 X 0.75  6,7 36 74
1312107 7 G 0.75  7,3 50 97
1312857 7 X 0.75  7,3 50 97
1312110 10 G 0.75  9,6 72 142
1312112 12 G 0.75  9,9 86,4 163
1312118 18 G 0.75  11,7 129,6 234
1312125 25 G 0.75  13,8 180 324
1312134 34 G 0.75  15,9 244,8 431
1312141 41 G 0.75  17,4 295,2 529
1312902 2 X 1.0  5,7 19,2 48
1312203 3 G 1.0  6 28,8 61
1312903 3 X 1.0  6 28,8 61
1312204 4 G 1.0  6,5 38,4 74
1312904 4 X 1.0  6,5 38,4 74
1312205 5 G 1.0  7,1 48 89
1312905 5 X 1.0  7,1 48 89
1312207 7 G 1.0  8 67 116
1312210 10 G 1.0  10,2 96 171
1312212 12 G 1.0  10,5 115 197
1312218 18 G 1.0  12,7 173 289
1312225 25 G 1.0  14,7 240 412
1312234 34 G 1.0  17,1 326,4 532
1312241 41 G 1.0  18,8 393,6 638
1312952 2 X 1.5  6,3 29 63
1312303 3 G 1.5  6,7 43 79
1312953 3 X 1.5  6,7 43 79
1312304 4 G 1.5  7,2 58 98
1312954 4 X 1.5  7,2 58 98
1312305 5 G 1.5  8,1 72 121
1312955 5 X 1.5  8,1 72 121
1312307 7 G 1.5  8,9 101 159
1312957 7 X 1.5  8,9 101 159
1312312 12 G 1.5  12 173 268
1312318 18 G 1.5  13,4 259,5 392
1312325 25 G 1.5  16,9 360 531
1312334 34 G 1.5  19,4 489,6 722
1312341 41 G 1.5  21,3 590,4 867
1312403 3 G 2.5  8,1 72 132
1312404 4 G 2.5  8,9 96 163
1312405 5 G 2.5  10 120 186
1312407 7 G 2.5  11,1 168 267
1312412 12 G 2.5  14,8 288 445
1312504 4 G 4  10,8 154 237
1312505 5 G 4  12,1 192 291
1312507 7 G 4  13,4 269 391
1312604 4 G 6  13 230,4 327
1312605 5 G 6  14,5 288 424
1312607 7 G 6  16 403 580
1312614 4 G 10  16,2 384 567
1312615 5 G 10  18,1 480 695
1312617 7 G 10  20 672 937
1312624 4 G 16  18,8 614,4 1064
ÖLFLEX® CLASSIC 400 P DESINA – sheath colour: black
1312970 4 G 1.5  7,2 58 98
1312981 7 G 1.5  8,8 101 159
1312983 11 G 1.5  11,6 158 228
1312973 4 G 2.5  8,9 96 163
1312974 4 G 4  10,8 154 237
1312975 4 G 6  13 230,4 350
1312976 4 G 10  16,2 384 567
1312978 4 G 25  23,5 960 1582

■ Similar products
▯ ÖLFLEX® 408 P

▯ ÖLFLEX® 409 P

▯ ÖLFLEX® 440 P

NOTE:

Unless otherwise specified, the product values shown are nominal values. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
Copper price basis: EUR 150/100 kg; see catalogue appendix T17 for the application and definition of “Metal price basis” and “Metal index”
Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
Packaging: Ring ≤ 30 kg or ≤ 250 m, otherwise drum
Please specify the preferred packaging (e.g. 1 x 500 m drum or 5 x 100 m rings)
DESINA® is a registered trademark of the German Machine Tool Builders’ Association (VDW)
Photographs are not to scale and do not represent detailed images of the respective products.
