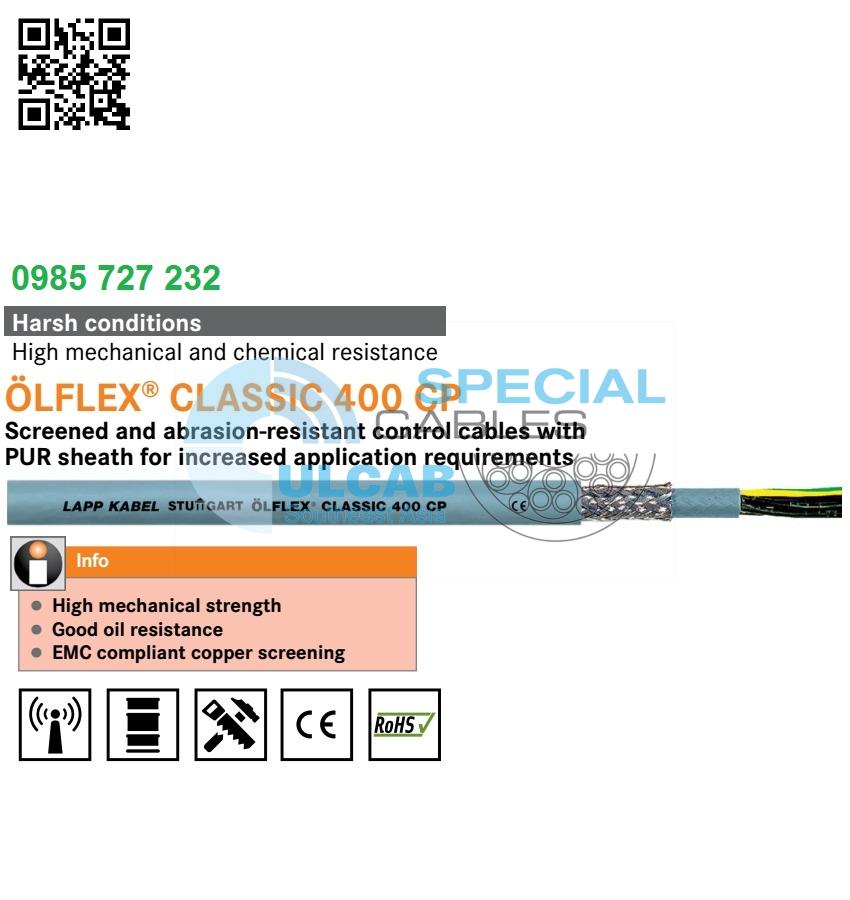

LAPP KABEL ÖLFLEX® CLASSIC 400 CP
Shielded, abrasion- and oil-resistant control cable with PUR sheath for increased application requirements
ÖLFLEX® 400 CP – PUR control cable, shielded, for oil- and abrasion-resistant application in industrial machinery and machine tools, in apparatus construction and measuring and regulation technology.
- High mechanical strength
- Good oil resistance
- EMC-compliant copper shielding
Benefits
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Compatible with a multitude of acidic cleaning and disinfection agents
- Additional robustness thanks to inner sheath
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
Application range
- Industrial machinery and machine tools
- Measurement, regulation and electrical applications
- Food production and packaging machinery
- Very suitable for oily wet areas within machine tools and transfer lines that are subject to normal mechanical stress
- Outdoor use is possible within the indicated temperature range
Product features
- High oil resistance
- Abrasion-resistant and notch-resistant
- EMC-compliant
- Low-adhesive surface
- Resistant to hydrolysis and microbes
Norm references / approvals
- Based on VDE 0285
- Certified resistance to disinfectant and cleaning solutions used in food and beverage industry
Design
- Fine-wire, bare copper conductor
- Core insulation: Special PVC
- Cores twisted in layers
- PVC inner sheath, grey
- Tin-plated copper braiding
- Special polyurethane sheath (PUR)
- Sheath colour: Silver grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 400 CP | ||||
| 1313852 | 2 X 0.75 | 7,4 | 45 | 85 |
| 1313103 | 3 G 0.75 | 7,9 | 52 | 99 |
| 1313853 | 3 X 0.75 | 7,9 | 52 | 99 |
| 1313104 | 4 G 0.75 | 8,4 | 77 | 114 |
| 1313854 | 4 X 0.75 | 8,4 | 77 | 114 |
| 1313105 | 5 G 0.75 | 8,9 | 84 | 130 |
| 1313855 | 5 X 0.75 | 8,9 | 84 | 130 |
| 1313107 | 7 G 0.75 | 9,7 | 92 | 161 |
| 1313857 | 7 X 0.75 | 9,7 | 92 | 161 |
| 1313112 | 12 G 0.75 | 12,3 | 138 | 245 |
| 1313118 | 18 G 0.75 | 14,5 | 219 | 354 |
| 1313125 | 25 G 0.75 | 16,6 | 277 | 463 |
| 1313134 | 34 G 0.75 | 18,9 | 420 | 598 |
| 1313141 | 41 G 0.75 | 20,6 | 500 | 725 |
| 1313902 | 2 X 1.0 | 7,9 | 50 | 97 |
| 1313203 | 3 G 1.0 | 8,2 | 77 | 111 |
| 1313903 | 3 X 1.0 | 8,2 | 77 | 111 |
| 1313204 | 4 G 1.0 | 8,7 | 87 | 129 |
| 1313904 | 4 X 1.0 | 8,7 | 87 | 129 |
| 1313205 | 5 G 1.0 | 9,5 | 90 | 152 |
| 1313207 | 7 G 1.0 | 10,2 | 110 | 184 |
| 1313212 | 12 G 1.0 | 13,3 | 194 | 306 |
| 1313218 | 18 G 1.0 | 15,5 | 267 | 417 |
| 1313225 | 25 G 1.0 | 17,5 | 379 | 541 |
| 1313234 | 34 G 1.0 | 20,3 | 516 | 735 |
| 1313241 | 41 G 1.0 | 22 | 610 | 860 |
| 1313952 | 2 X 1.5 | 8,5 | 77 | 116 |
| 1313303 | 3 G 1.5 | 8,9 | 85 | 135 |
| 1313953 | 3 X 1.5 | 8,9 | 85 | 135 |
| 1313304 | 4 G 1.5 | 9,6 | 100 | 162 |
| 1313954 | 4 X 1.5 | 9,6 | 100 | 162 |
| 1313305 | 5 G 1.5 | 10,3 | 120 | 187 |
| 1313955 | 5 X 1.5 | 10,3 | 120 | 187 |
| 1313307 | 7 G 1.5 | 11,3 | 152 | 236 |
| 1313957 | 7 X 1.5 | 11,3 | 152 | 236 |
| 1313312 | 12 G 1.5 | 14,8 | 267 | 392 |
| 1313318 | 18 G 1.5 | 17,2 | 400 | 536 |
| 1313325 | 25 G 1.5 | 20,1 | 572 | 742 |
| 1313334 | 34 G 1.5 | 21,9 | 754 | 960 |
| 1313341 | 41 G 1.5 | 24,7 | 874 | 1118 |
| 1313403 | 3 G 2.5 | 10,3 | 121 | 191 |
| 1313404 | 4 G 2.5 | 11,3 | 163 | 232 |
| 1313405 | 5 G 2.5 | 12,6 | 199 | 282 |
| 1313407 | 7 G 2.5 | 13,9 | 261 | 370 |
| 1313412 | 12 G 2.5 | 17,2 | 470 | 580 |
| 1313504 | 4 G 4 | 13,4 | 238 | 345 |
| 1313505 | 5 G 4 | 14,7 | 279 | 412 |
| 1313604 | 4 G 6 | 15,8 | 318 | 483 |
| 1313605 | 5 G 6 | 17,3 | 370 | 576 |
| 1313614 | 4 G 10 | 19 | 558 | 733 |
| 1313624 | 4 G 16 | 22,2 | 804 | 1340 |
■ Similar products
▯ ÖLFLEX® CLASSIC 415 CP
▯ ÖLFLEX® 440 CP
▯ ÖLFLEX® CLASSIC 415 CP
▯ ÖLFLEX® 440 CP
■ Accessories
▯ Conductor end sleeves
▯ SKINTOP® MS-SC-M
NOTE:
Unless otherwise specified, the product values shown are nominal values. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
Copper price basis: EUR 150/100 kg; see catalogue appendix T17 for the application and definition of “Metal price basis” and “Metal index”
Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
Packaging: Ring ≤ 30 kg or ≤ 250 m, otherwise drum
Please specify the preferred packaging (e.g. 1 x 500 m drum or 5 x 100 m rings)
Photographs are not to scale and do not represent detailed images of the respective products.
