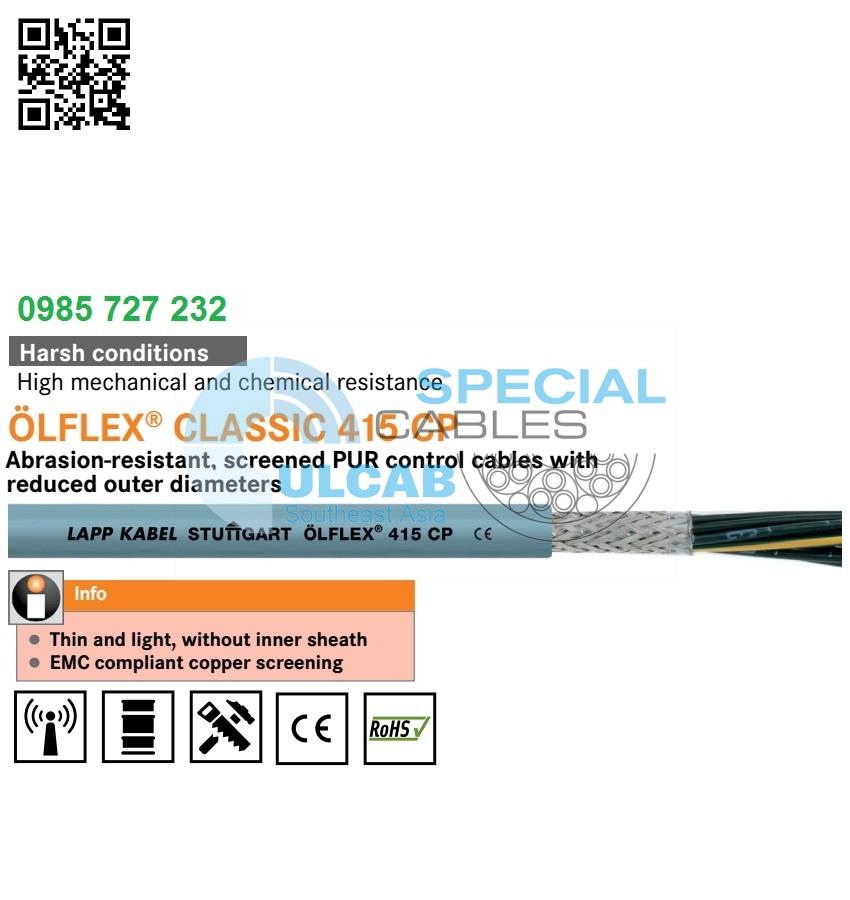

LAPP KABEL ÖLFLEX® CLASSIC 415 CP
Shielded, abrasion- and oil-resistant PUR control cable with reduced outer diameter
ÖLFLEX® 415 CP – PUR control cable, shielded, for space-saving, oil-, notch- and abrasion-resistant application in industrial machinery as well as in measuring and regulation technology.
- Thin and light, without inner sheath
- EMC-compliant copper shielding
Benefits
- Space and weight-saving installation due to small cable diameters
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
Application range
- Industrial machinery and machine tools
- Measurement, regulation and electrical applications
- Very suitable for oily wet areas within machine tools and transfer lines that are subject to normal mechanical stress
- Outdoor use is possible within the indicated temperature range
Product features
- High oil resistance
- Abrasion-resistant and notch-resistant
- EMC-compliant
- Low-adhesive surface
- Resistant to hydrolysis and microbes
Norm references / approvals
- Core based on VDE 0812/0285
- Sheath based on VDE 0250/0285
Design
- Fine-wire, bare copper conductor
- Core insulation: Special PVC
- Cores twisted in layers
- Plastic film wrapping
- Tin-plated copper braiding
- Special polyurethane sheath (PUR)
- Sheath colour: Silver grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- Core/Core: 4000 V
- Core/Shield: 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 415 CP | ||||
| 1314000 | 2 X 0.5 | 5,8 | 36 | 45 |
| 1314001 | 3 G 0.5 | 6,1 | 43 | 59 |
| 1314002 | 3 X 0.5 | 6,1 | 43 | 59 |
| 1314003 | 4 G 0.5 | 6,5 | 49 | 83 |
| 1314004 | 4 X 0.5 | 6,5 | 49 | 83 |
| 1314005 | 5 G 0.5 | 7 | 57 | 96 |
| 1314006 | 5 X 0.5 | 7 | 57 | 96 |
| 1314007 | 7 G 0.5 | 7,5 | 69 | 136 |
| 1314008 | 7 X 0.5 | 7,5 | 69 | 136 |
| 1314010 | 12 G 0.5 | 9,9 | 104 | 200 |
| 1314011 | 12 X 0.5 | 9,9 | 104 | 200 |
| 1314012 | 18 G 0.5 | 11,5 | 141 | 275 |
| 1314013 | 18 X 0.5 | 11,5 | 141 | 275 |
| 1314014 | 25 G 0.5 | 13,4 | 211 | 350 |
| 1314015 | 25 X 0.5 | 13,4 | 211 | 350 |
| 1314017 | 2 X 0.75 | 6,2 | 43 | 56 |
| 1314018 | 3 G 0.75 | 6,5 | 52 | 70 |
| 1314019 | 3 X 0.75 | 6,5 | 52 | 70 |
| 1314020 | 4 G 0.75 | 7 | 61 | 95 |
| 1314021 | 4 X 0.75 | 7 | 61 | 95 |
| 1314022 | 5 G 0.75 | 7,7 | 72 | 130 |
| 1314023 | 5 X 0.75 | 7,7 | 72 | 130 |
| 1314024 | 7 G 0.75 | 8,3 | 89 | 168 |
| 1314025 | 7 X 0.75 | 8,3 | 89 | 168 |
| 1314026 | 12 G 0.75 | 10,9 | 138 | 232 |
| 1314027 | 18 G 0.75 | 12,7 | 211 | 315 |
| 1314028 | 25 G 0.75 | 14,8 | 280 | 435 |
| 1314029 | 25 X 0.75 | 14,8 | 280 | 435 |
| 1314032 | 2 X 1.0 | 6,5 | 51 | 84 |
| 1314033 | 3 G 1.0 | 6,8 | 62 | 110 |
| 1314034 | 3 X 1.0 | 6,8 | 62 | 110 |
| 1314035 | 4 G 1.0 | 7,3 | 74 | 130 |
| 1314036 | 4 X 1.0 | 7,3 | 74 | 130 |
| 1314037 | 5 G 1.0 | 8,1 | 88 | 156 |
| 1314038 | 5 X 1.0 | 8,1 | 88 | 156 |
| 1314039 | 7 G 1.0 | 8,8 | 112 | 192 |
| 1314040 | 7 X 1.0 | 8,8 | 112 | 192 |
| 1314041 | 12 G 1.0 | 11,5 | 185 | 285 |
| 1314042 | 18 G 1.0 | 13,9 | 268 | 395 |
| 1314043 | 25 G 1.0 | 15,9 | 354 | 656 |
| 1314046 | 2 X 1.5 | 7,1 | 65 | 97 |
| 1314047 | 3 G 1.5 | 7,5 | 82 | 125 |
| 1314048 | 3 X 1.5 | 7,5 | 82 | 125 |
| 1314049 | 4 G 1.5 | 8,2 | 100 | 165 |
| 1314050 | 4 X 1.5 | 8,2 | 100 | 165 |
| 1314051 | 5 G 1.5 | 8,9 | 119 | 193 |
| 1314052 | 5 X 1.5 | 8,9 | 119 | 193 |
| 1314053 | 7 G 1.5 | 9,9 | 154 | 245 |
| 1314054 | 7 X 1.5 | 9,9 | 154 | 245 |
| 1314055 | 12 G 1.5 | 13 | 268 | 365 |
| 1314056 | 18 G 1.5 | 15,6 | 373 | 553 |
| 1314057 | 25 G 1.5 | 17,9 | 530 | 734 |
| 1314058 | 34 G 1.5 | 20,8 | 683 | 944 |
| 1314061 | 3 G 2.5 | 8,9 | 118 | 188 |
| 1314062 | 4 G 2.5 | 9,9 | 147 | 236 |
| 1314063 | 5 G 2.5 | 11 | 176 | 270 |
| 1314064 | 7 G 2.5 | 11,9 | 253 | 340 |
| 1314065 | 12 G 2.5 | 16 | 355 | 589 |
| 1314066 | 18 G 2.5 | 19 | 569 | 978 |
| 1314067 | 25 G 2.5 | 22,2 | 827 | 1358 |
| 1314068 | 4 G 4 | 11,6 | 248 | 305 |
| 1314070 | 7 G 4 | 14,4 | 355 | 500 |
| 1314071 | 4 G 6 | 14,2 | 343 | 440 |
| 1314073 | 7 G 6 | 17 | 505 | 672 |
| 1314074 | 4 G 10 | 17,2 | 535 | 710 |
| 1314075 | 4 G 16 | 20,2 | 800 | 1050 |
| 1314076 | 4 G 25 | 25,1 | 1,075.0 | 1570 |
| 1314077 | 4 G 35 | 28 | 1,576.0 | 2070 |
■ Similar products
▯ ÖLFLEX® ROBUST 215 C
▯ ÖLFLEX® CLASSIC 400 CP
■ Accessories
▯ Conductor end sleeves
▯ SKINTOP® MS-SC-M
NOTE:
Unless otherwise specified, the product values shown are nominal values. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
Copper price basis: EUR 150/100 kg; see catalogue appendix T17 for the application and definition of “Metal price basis” and “Metal index”
Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
Packaging: Ring ≤ 30 kg or ≤ 250 m, otherwise drum
Please specify the preferred packaging (e.g. 1 x 500 m drum or 5 x 100 m rings)
Photographs are not to scale and do not represent detailed images of the respective products.
