UNITRONIC® BUS CAN TRAY

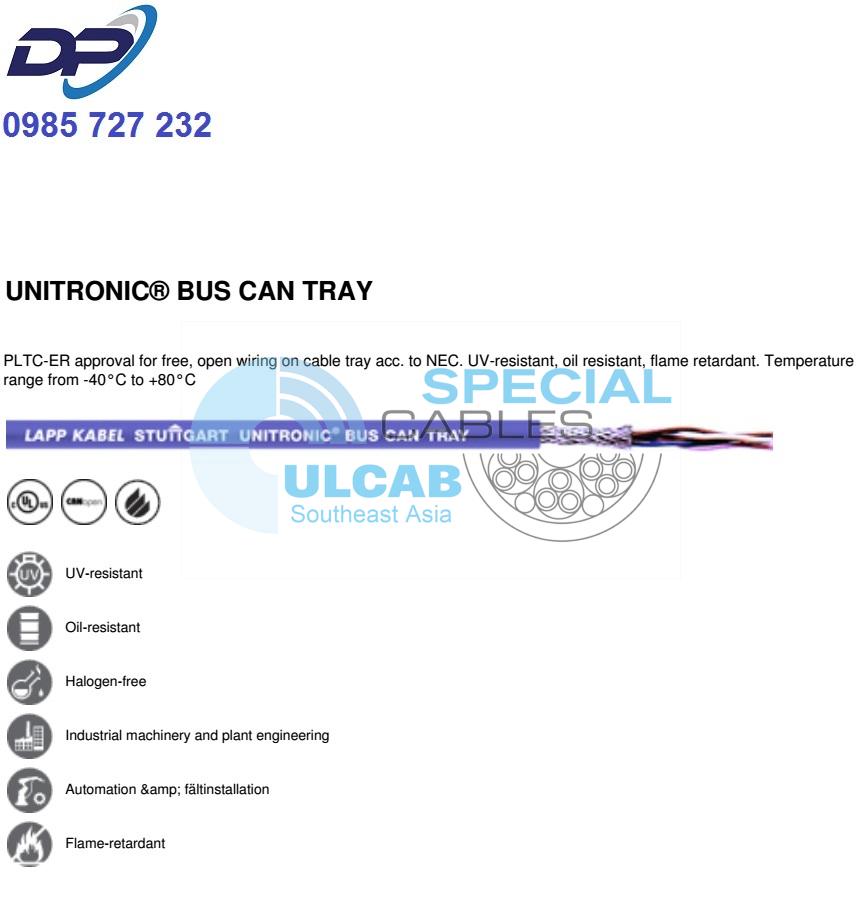

PLTC-ER approval for free, open cabling on cable tray according to NEC. UV-resistant UL SUN RES, oil-resistant according to UL OIL RES I, flame-retardant according to CSA FT4
CAN = Controller Area Network
Benefits
- PLTC-ER approval for open wiring between cable tray and industrial machine/plant according to NEC article 725.154 (D)
- No additional protection of the cable needed
Application range
- Fixed installation
Product features
- Maximum bit rate: 1 Mbit/s for 40 m
Bus length - ISO 11898 makes recommendations for the segment length, cable cross-section and bit rate
- UV-resistant UL SUN RES
- Oil-resistant according to UL OIL RES I
- Flame-retardant according to CSA FT4
UL Vertical-Tray Flame Test
Norm references / Approvals
- Standardised internationally in ISO 11898
- c(UL)us type CMG (75°C) according to UL 444 / CSA 22.2
- UL type PLTC-ER according to UL 13
Product Make-up
- 7-wire strand made of bare copper wires
- Colour code in accordance with DIN 47100
- Copper braiding
- PVC inner sheath and outer sheath
- Colour: violet (RAL 4001)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Mutual capacitance
- (800 Hz) max. 40 nF/km
Peak operating voltage
- (not for power applications)
250 V - Nominal voltage: 600 V (UL)
Conductor resistance
- (loop): max. 110.8 ohm/km
Minimum bending radius
- Fixed installation: 8 x outer diameter
- Flexing: 15 x outer diameter
Test voltage
- Core/Core: 2000 V
Characteristic impedance
- 120 ohm
Temperature range
- Fixed installation: -40°C to +80°C
- Flexing: -10°C to +70°C
| Article number | Article designation | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index [kg/km] | Weight [kg/km] |
| 2170857 | UNITRONIC® BUS CAN TRAY | 2 x 2 x 0.34 | 7,5 | 35 | 81 |
