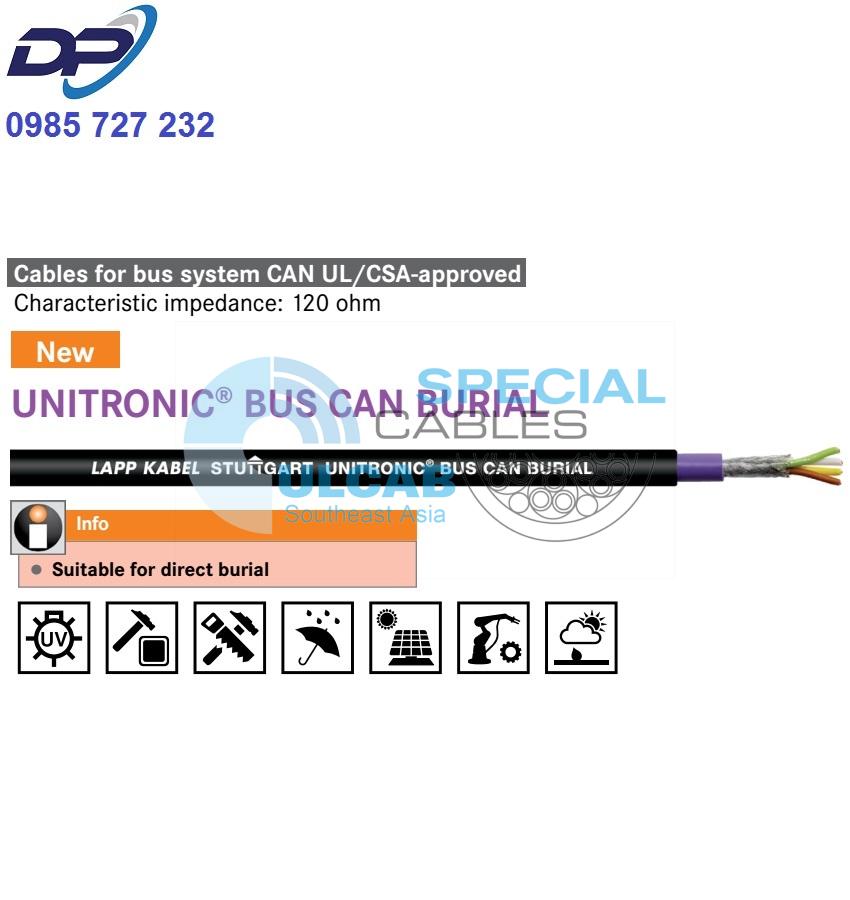

UNITRONIC® BUS CAN BURIAL
Suitable for CAN communication according to ISO 11898, for direct burial and outdoor applications. Robust, UV-resistant and weatherproof. Temp. range from -40°C to +80°C
Suitable for direct burial
Benefits
- Suitable for CAN communication according to ISO 11898
- Double-sheathed, very robust and therefore for installation without corrugated pipe
- Rugged, UV-resistant and weatherproof
- Diameter of inner sheath suitable for common connectors
Application range
- Can be used for CAN-based communication systems such as CANopen
- Suitable for direct burial
- For outdoor applications
- For fixed installation and applications with occasional movements
Product Make-up
- Bare stranded copper wire 7×0.32
- Core insulation made of polyethylene (PE)
- Colour code in accordance with DIN 47100
- Overall shielding of tin-plated copper wires
- Sheath 1: PVC violet, OD 7.1 mm
Sheath 2: PE black, OD approx. 9 mm
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Mutual capacitance
- (1 kHz): max. 40 nF/km
Peak operating voltage
- 300 V (not for power applications)
Conductor resistance
- (loop): max. 74 ohm/km
Minimum bending radius
- Repeatedly: 8xOD
Once: 4xAD
Test voltage
- Core/Core: 1500 V eff.
Characteristic impedance
- 120 ohm
Temperature range
- Fixed installation: -40°C to +80°C
| Article number | Number of pairs/conductor cross section (mm²) | Outer diameter [mm] | Copper index [kg/km] | Weight [kg/km] |
| 2170500 | 4 x 1 x 0.5 | 9 | 41,8 | 91 |
