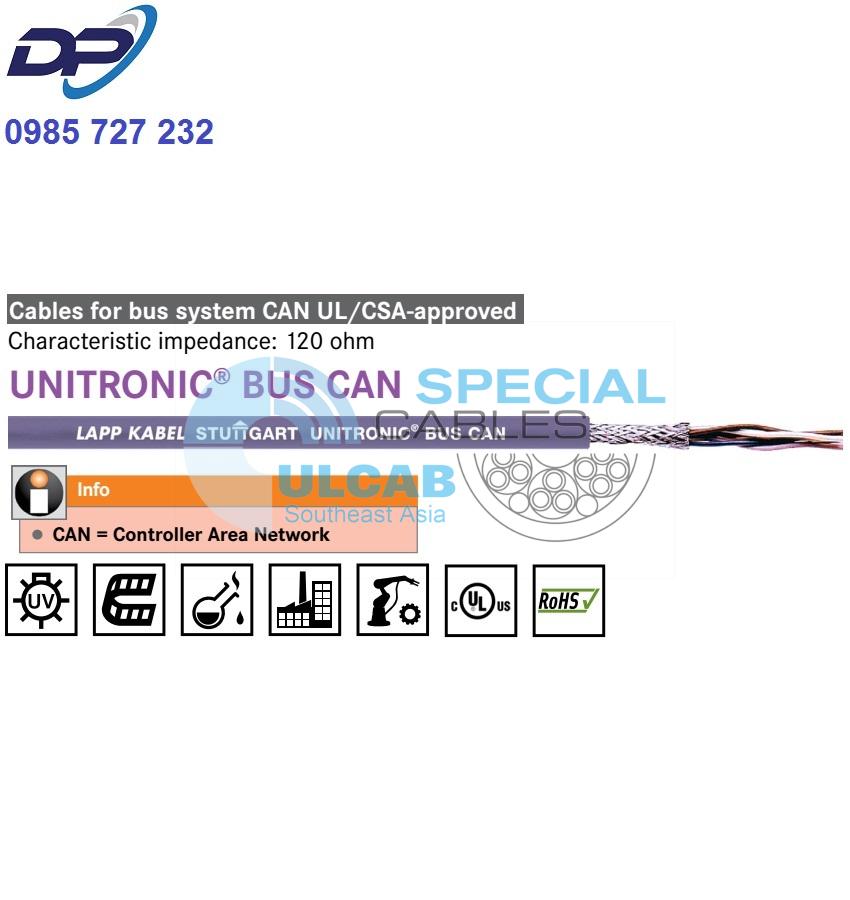

UNITRONIC® BUS CAN
For CAN-based communication systems like CANopen. Flame-retardant according to IEC 60332-1-2, temperature range from -40°C to +80°C
CAN = Controller Area Network
Application range
- Fixed installation
Product features
- Maximum bit rate: 1 Mbit/s for 40 m
Bus length - A larger conductor cross-section is required as the length increases
- ISO 11898 makes recommendations for the segment length, cable cross-section and bit rate
- Flame-retardant according IEC 60332-1-2
Norm references / Approvals
- Standardised internationally in ISO 11898
- UL/CSA type CMX (UL 444)
Product Make-up
- 0.22+0.34+0.5: Stranded wire, bare, 7-wire
0.75: Stranded wire, bare, fine-wire - Colour code in accordance with DIN 47100
- Copper braiding
- PVC sheath
- Colour: violet (RAL 4001)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Mutual capacitance
- (800 Hz) max. 40 nF/km
Peak operating voltage
- (not for power applications)
250 V
Conductor resistance
- (loop): max. 186 ohm/km
Minimum bending radius
- Fixed installation: 8 x outer diameter
Test voltage
- Core/Core: 1500 V eff.
Characteristic impedance
- 120 ohm
Temperature range
- Fixed installation:
-30°C to +80°C - Flexing: -5°C to +70°C
| Article number | Article designation | Number of pairs/conductor cross section (mm²) | Outer diameter [mm] | Conductor resistance | Copper index [kg/km] | Weight [kg/km] |
| for fxed installation | ||||||
| 2170260 | UNITRONIC® BUS CAN | 1 x 2 x 0,22 | 5,7 | 186 | 16,7 | 42 |
| 2170261 | UNITRONIC® BUS CAN | 2 x 2 x 0,22 | 7,6 | 186 | 34,8 | 68 |
| 2170263 | UNITRONIC® BUS CAN | 1 x 2 x 0,34 | 6,8 | 115 | 25 | 55 |
| 2170264 | UNITRONIC® BUS CAN | 2 x 2 x 0,34 | 8,5 | 115 | 46,4 | 88 |
| 2170266 | UNITRONIC® BUS CAN | 1 x 2 x 0,5 | 7,5 | 78 | 41,6 | 90 |
| 2170267 | UNITRONIC® BUS CAN | 2 x 2 x 0,5 | 9,6 | 78 | 59,4 | 106 |
| 2170269 | UNITRONIC® BUS CAN | 1 x 2 x 0,75 | 8,7 | 52 | 52,7 | 108 |
| 2170270 | UNITRONIC® BUS CAN | 2 x 2 x 0,75 | 11,5 | 52 | 80,6 | 142 |
