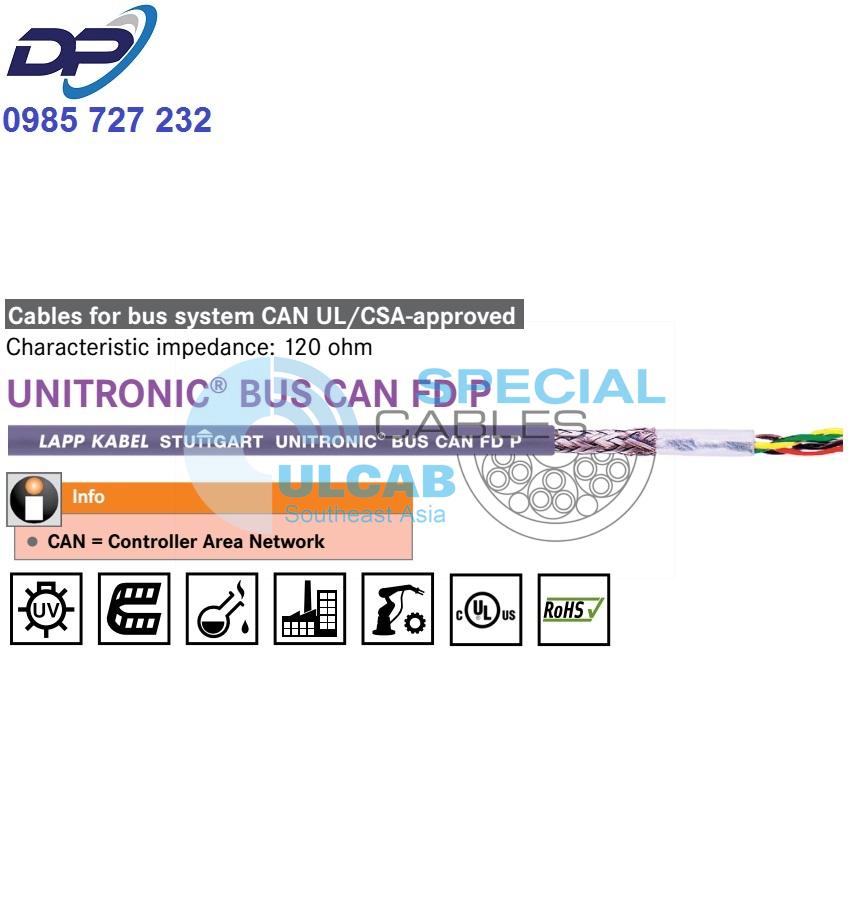

UNITRONIC® BUS CAN FD P
For CAN-based communication systems like CANopen. Halogen-free, flame-retardant according to IEC 60332-1-2, temperature range from -40°C to +80°C
Application range
- For highly flexible applications
Product features
- Halogen-free outer sheath
- Maximum bit rate: 1 Mbit/s for 40 m
Bus length - A larger conductor cross-section is required as the length increases
- ISO 11898 makes recommendations for the segment length, cable cross-section and bit rate
- Flame-retardant according IEC 60332-1-2
Norm references / Approvals
- Standardised internationally in ISO 11898
- UL/CSA type CMX (UL 444)
Product Make-up
- Bare stranded wire
- Screening: wrapped with braided copper wires
- PUR outer sheath
- Colour: violet (RAL 4001)
- UV-resistant (colour may change over time)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Mutual capacitance
- Flexible use: 10 x outer diameter
Peak operating voltage
- 250 V (not for power transmission)
Conductor resistance
- (loop): max. 159.8 ohm/km
Minimum bending radius
- Flexing: 15 x outer diameter
Test voltage
- Core/Core: 1500 V eff.
Characteristic impedance
- 120 ohm
Temperature range
- Fixed installation: -40°C to +80°C
- Flexing: -30°C to +70°C
| Article number | Article designation | Number of pairs/conductor cross section (mm²) | Outer diameter [mm] | Conductor resistance | Copper index [kg/km] | Weight [kg/km] |
| For highly flexible applications (power chains, moving machine parts) | ||||||
| 2170272 | UNITRONIC® BUS CAN FD P | 1 x 2 x 0,25 | 6,4 | 159,8 | 24 | 40 |
| 2170273 | UNITRONIC® BUS CAN FD P | 2 x 2 x 0,25 | 8,4 | 159,8 | 33 | 65 |
| 2170275 | UNITRONIC® BUS CAN FD P | 1 x 2 x 0,34 | 6,8 | 122 | 32,8 | 60 |
| 2170276 | UNITRONIC® BUS CAN FD P | 2 x 2 x 0,34 | 9,6 | 122 | 52,4 | 88 |
| 2170278 | UNITRONIC® BUS CAN FD P | 1 x 2 x 0,5 | 8 | 72,8 | 41,9 | 74 |
| 2170279 | UNITRONIC® BUS CAN FD P | 2 x 2 x 0,5 | 10,8 | 72,8 | 59,4 | 100 |
