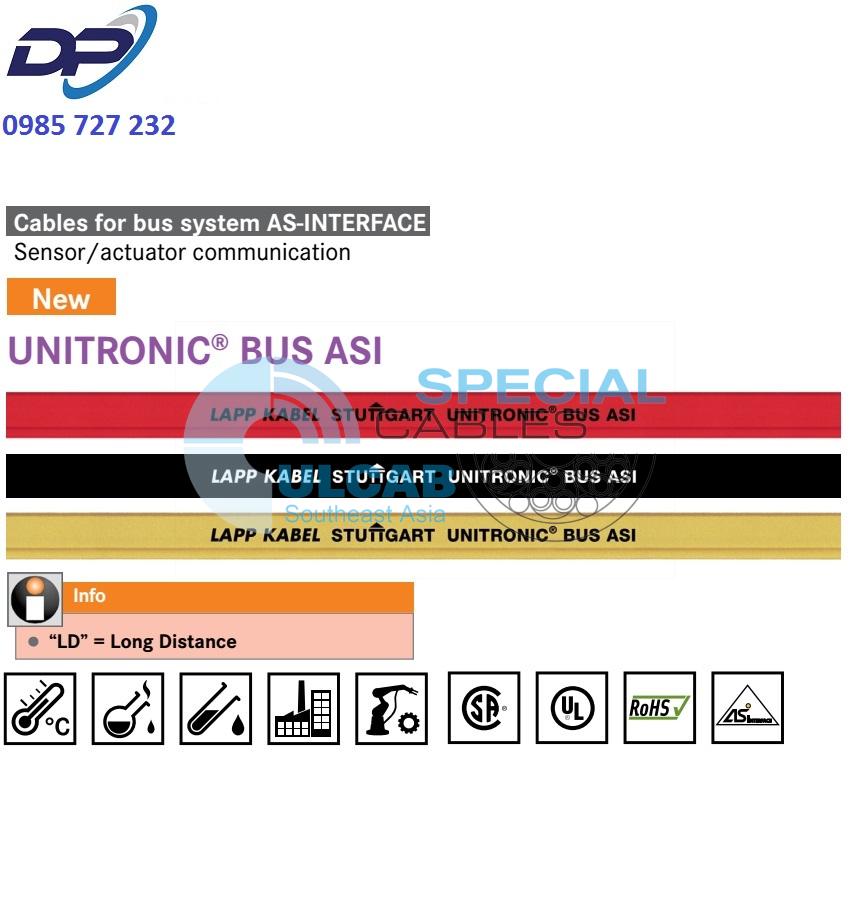

UNITRONIC® BUS ASI

Communication at sensor/actuator level. Halogen-free (rubber), UL-approval, oil-resistant (TPE version). Temperature range from -40°C to +90°C

“LD” = Long Distance

Temperature-resistant Halogen-free Good chemical resistance Industrial machinery and plant engineering Automation & fältinstallation

Benefits

  • The new BUS ASI LD 2 x 2.5 (long distance) now allows modules located even further away to be connected. Additional AS-I supplies can be reduced.
    BUS ASI LD is downwards-compatible with version 1.5.
  • The rubber versions are halogen-free.

Application range

  • Communication at sensor/actuator level
  • Sensor/actuator wiring
  • For fixed installation as well as occasional flexing with free, non-continuously recurring movement without tensile load
  • The TPE version has an oil-resistant outer sheath. It is suitable for wet areas, in particular in conjunction with water-soluble cooling lubricants.

Product features

  • Data and power are transmitted via an unshielded, geometrically coded two-wire flat cable (protection against polarity reversal).
  • The conductor is contacted by “piercing technology” within the ASI modules.
  • The sensors are connected to the ASI modules (coupling modules) using round cables (connection cables).

Norm references / approvals

  • ASI is standardised Europe-wide in EN 50295 and internationally in IEC 62026-2
  • PVC version with UL/CSA (CMX) certification
  • UL/CSA version: CMG c(UL)us or (UL)CL2 or AWM 300V FT4 certified

Design

  • Extra-fine wire, tin-plated copper strands
  • Core insulation (blue and brown)
  • Profiled outer sheath made of rubber (G), thermoplastic elastomers (TPE) or PVC
  • Colour: yellow (RAL 1023) or black (RAL 9005)
  • Colour: red (RAL 3000)

Classification

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Peak operating voltage

  • yellow: 300 V (not for power applications)
    black: 300 V (not for power applications)
    red: 300 V

Conductor resistance

  • 1.5 mm²: max. 13.7 ohm/km
  • 2.5 mm²: max. 8.21 ohm/km

Minimum bending radius

  • Fixed installation: 12 mm
  • flexible 24 mm

Test voltage

  • Core/Core: 2000 V

Temperature range

  • Dependent on outer sheath material:
    PVC: -30°C to +90°C
    Other materials:
    -40°C to +85°C
  • During laying:
    PVC -20°C to +90°C
    Other materials:
    -30°C to +85°C
Article number Article designation Outer sheath
material		 Outer sheath colour Application Number of cores and mm² per conductor Copper index [kg/km] Weight [kg/km]
For fxed and flexible applications (19-wire stranded conductor)
2170228 UNITRONIC® BUS ASI (G) EPDM (rubber) yellow Data and power transmission 2 x 1,5 29 85
2170229 UNITRONIC® BUS ASI (G) EPDM (rubber) black Transmission of 30 V DC auxiliary power 2 x 1,5 29 85
2170371 UNITRONIC® BUS ASI LD (G) EPDM (rubber) yellow Data and power transmission 2 x 2,5 48 85
2170372 UNITRONIC® BUS ASI LD (G) EPDM (rubber) black Transmission of 30 V DC auxiliary power 2 x 2,5 48 85
2170230 UNITRONIC® BUS ASI (TPE) TPE yellow Data and power transmission 2 x 1,5 29 64
2170231 UNITRONIC® BUS ASI (TPE) TPE black Transmission of 30 V DC auxiliary power 2 x 1,5 29 64
2170232 UNITRONIC® BUS ASI (TPE) TPE red Transmission of 230 V AC auxiliary power 2 x 1,5 29 64
2170842 UNITRONIC® BUS ASI (PVC) A PVC UL/CSA (CMG) yellow Data and power transmission 2 x 1,5 29 70
2170843 UNITRONIC® BUS ASI (PVC) A PVC UL/CSA (CMG) black Transmission of 30 V DC auxiliary power 2 x 1,5 29 70
2170844 UNITRONIC® BUS ASI (PVC) A PVC UL/CSA (CMG) red Transmission of 230 V AC auxiliary power 2 x 1,5 29 70
