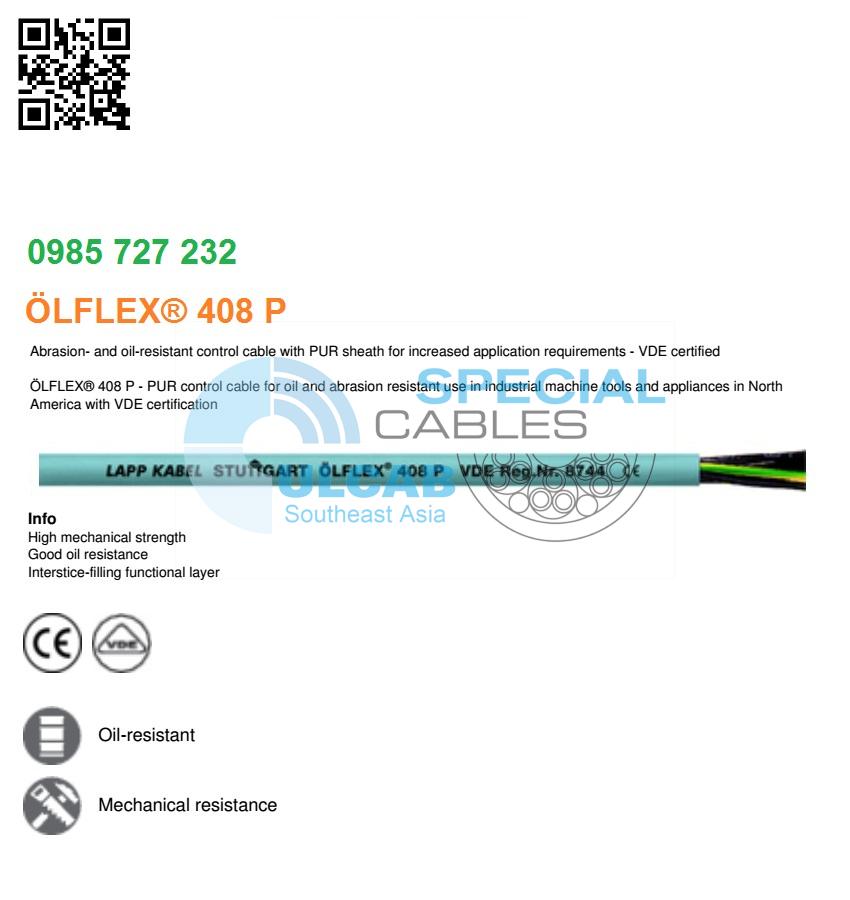

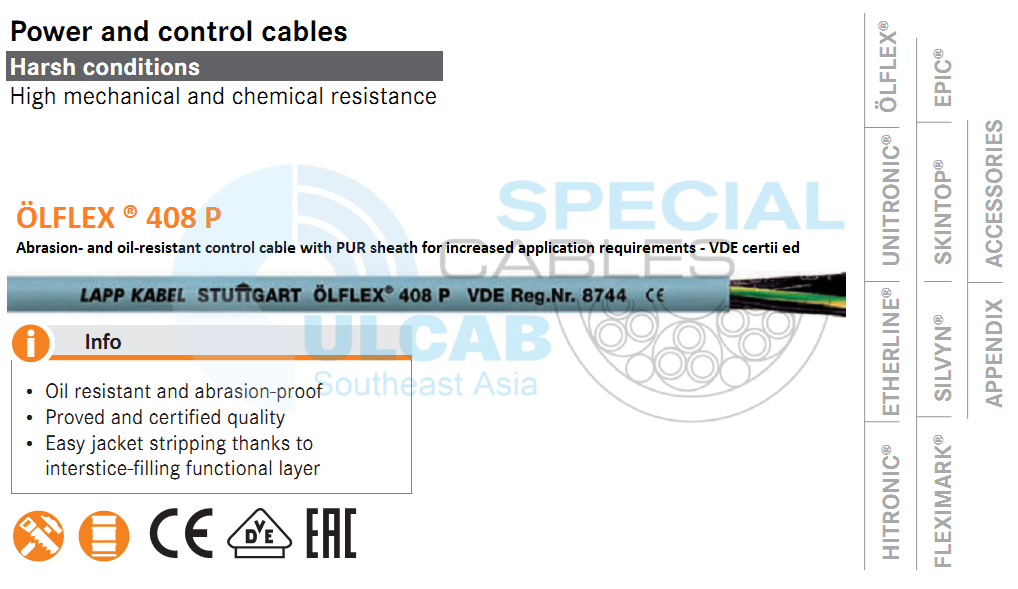

LAPP KABEL ÖLFLEX® 408 P
Abrasion-resistant and oil-resistant control cable with PUR sheath for increased application requirements – VDE certified
ÖLFLEX® 408 P – PUR control cable with VDE certification for oil- and abrasion-resistant use in North America in apparatus construction, in industrial machines and machine tools.
- High mechanical strength
- Good oil resistance
- Interstice-filling functional layer
Benefits
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Interstice-filling functional layer ensures more safety and efficiency during industrial stripping
- VDE-tested characteristics
Application range
- Appliance and apparatus construction
- Industrial machinery and machine tools
- Measurement, regulation and electrical applications
- Outdoor use is possible within the indicated temperature range
- Very suitable for oily wet areas within machine tools and transfer lines that are subject to normal mechanical stress
Product features
- High oil resistance
- Abrasion-resistant and notch-resistant
- Low-adhesive surface
- Resistant to hydrolysis and microbes
Norm references / approvals
- VDE reg. no. 8744
Design
- Fine-wire, bare copper conductor
- Core insulation: Special PVC
- Cores twisted in layers
- Special sheath made of polyurethane with interstice-filling functional layer
- Sheath colour: Silver grey (RAL 7001)
Technical Data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Flexible use: 12.5 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -15°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1308802 | 2 X 0.5 | 4,8 | 9,6 | 32 |
| 1308003 | 3 G 0.5 | 5,1 | 14,4 | 39 |
| 1308803 | 3 X 0.5 | 5,1 | 14,4 | 39 |
| 1308004 | 4 G 0.5 | 5,7 | 19,2 | 49 |
| 1308804 | 4 X 0.5 | 5,7 | 19,2 | 49 |
| 1308005 | 5 G 0.5 | 6,2 | 24 | 59 |
| 1308805 | 5 X 0.5 | 6,2 | 24 | 59 |
| 1308007 | 7 G 0.5 | 6,7 | 33,6 | 73 |
| 1308807 | 7 X 0.5 | 6,7 | 33,6 | 73 |
| 1308010 | 10 G 0.5 | 8,6 | 48 | 116 |
| 1308012 | 12 G 0.5 | 8,9 | 57,6 | 129 |
| 1308018 | 18 G 0.5 | 10,5 | 86,4 | 184 |
| 1308025 | 25 G 0.5 | 12,4 | 120 | 256 |
| 1308852 | 2 X 0.75 | 5,4 | 14,4 | 42 |
| 1308103 | 3 G 0.75 | 5,7 | 21,6 | 51 |
| 1308853 | 3 X 0.75 | 5,7 | 21,6 | 51 |
| 1308104 | 4 G 0.75 | 6,2 | 28,8 | 62 |
| 1308854 | 4 X 0.75 | 6,2 | 28,8 | 62 |
| 1308105 | 5 G 0.75 | 6,7 | 36 | 75 |
| 1308855 | 5 X 0.75 | 6,7 | 36 | 75 |
| 1308107 | 7 G 0.75 | 7,3 | 50,4 | 95 |
| 1308857 | 7 X 0.75 | 7,3 | 50,4 | 95 |
| 1308110 | 10 G 0.75 | 9,6 | 72 | 153 |
| 1308112 | 12 G 0.75 | 9,9 | 86,4 | 170 |
| 1308118 | 18 G 0.75 | 11,7 | 129,6 | 245 |
| 1308125 | 25 G 0.75 | 13,8 | 180 | 340 |
| 1308902 | 2 X 1 | 5,7 | 19,2 | 49 |
| 1308203 | 3 G 1 | 6 | 28,8 | 60 |
| 1308903 | 3 X 1 | 6 | 28,8 | 60 |
| 1308204 | 4 G 1 | 6,5 | 38,4 | 74 |
| 1308904 | 4 X 1 | 6,5 | 38,4 | 74 |
| 1308205 | 5 G 1 | 7,1 | 48 | 90 |
| 1308905 | 5 X 1 | 7,1 | 48 | 90 |
| 1308207 | 7 G 1 | 8 | 67,2 | 118 |
| 1308907 | 7 X 1 | 8 | 67,2 | 118 |
| 1308210 | 10 G 1 | 10,2 | 86 | 184 |
| 1308212 | 12 G 1 | 10,5 | 115,2 | 204 |
| 1308218 | 18 G 1 | 12,7 | 172,8 | 303 |
| 1308225 | 25 G 1 | 14,7 | 240 | 412 |
| 1308952 | 2 X 1.5 | 6,3 | 28,8 | 64 |
| 1308303 | 3 G 1.5 | 6,7 | 43,2 | 81 |
| 1308953 | 3 X 1.5 | 6,7 | 43,2 | 81 |
| 1308304 | 4 G 1.5 | 7,2 | 57,6 | 99 |
| 1308954 | 4 X 1.5 | 7,2 | 57,6 | 99 |
| 1308305 | 5 G 1.5 | 8,1 | 72 | 125 |
| 1308955 | 5 X 1.5 | 8,1 | 72 | 125 |
| 1308307 | 7 G 1.5 | 8,9 | 100,8 | 161 |
| 1308957 | 7 X 1.5 | 8,9 | 100,8 | 161 |
| 1308312 | 12 G 1.5 | 12 | 172,8 | 286 |
| 1308318 | 18 G 1.5 | 14,4 | 259,2 | 419 |
| 1308325 | 25 G 1.5 | 16,9 | 360 | 580 |
| 1308403 | 3 G 2.5 | 8,1 | 72 | 125 |
| 1308404 | 4 G 2.5 | 8,9 | 96 | 158 |
| 1308405 | 5 G 2.5 | 10 | 120 | 198 |
| 1308407 | 7 G 2.5 | 11,1 | 168 | 259 |
| 1308412 | 12 G 2.5 | 14,8 | 288 | 454 |
| 1308504 | 4 G 4 | 10,8 | 153,6 | 241 |
| 1308505 | 5 G 4 | 12,1 | 192 | 302 |
| 1308507 | 7 G 4 | 13,4 | 268,8 | 394 |
| 1308604 | 4 G 6 | 13 | 230,4 | 356 |
| 1308605 | 5 G 6 | 14,5 | 288 | 443 |
| 1308607 | 7 G 6 | 16 | 403,2 | 579 |
| 1308514 | 4 G 10 | 16,2 | 384 | 571 |
| 1308615 | 5 G 10 | 18,1 | 480 | 714 |
| 1308617 | 7 G 10 | 20 | 672 | 935 |
| 1308624 | 4 G 16 | 18,8 | 614,4 | 843 |
NOTE:
Unless otherwise specified, the product values shown are nominal values. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
Copper price basis: EUR 150/100 kg; see catalogue appendix T17 for the application and definition of “Metal price basis” and “Metal index”
Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
Packaging: Ring ≤ 30 kg or ≤ 250 m, otherwise drum
Please specify the preferred packaging (e.g. 1 x 500 m drum or 5 x 100 m rings)
Photographs are not to scale and do not represent detailed images of the respective products.
