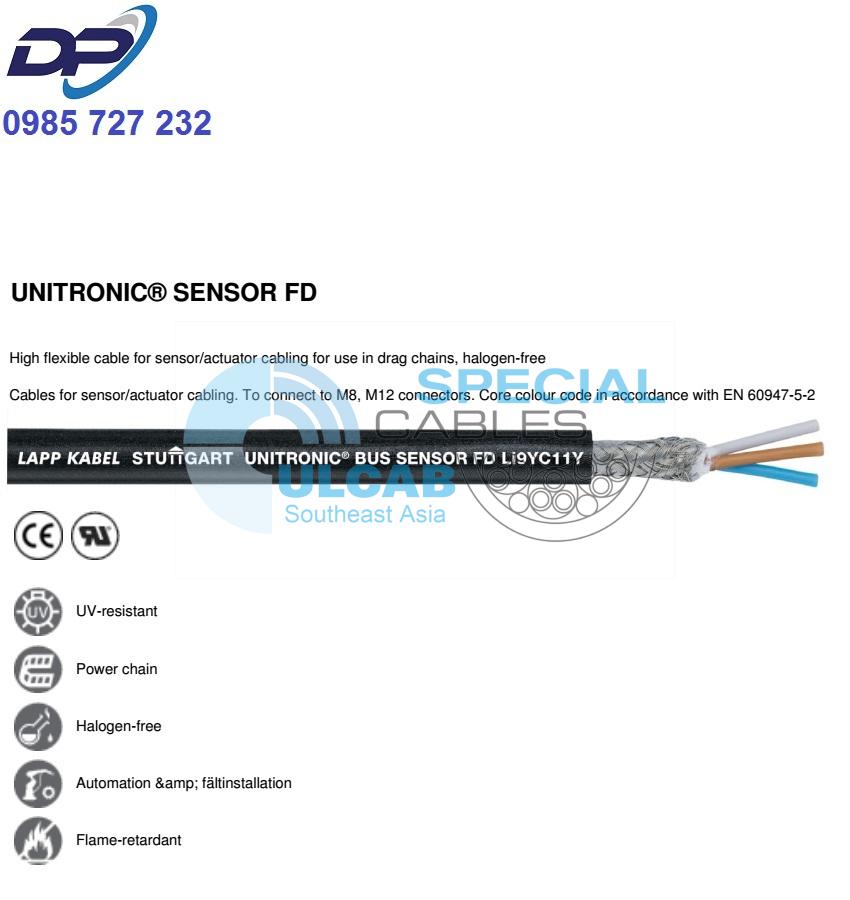

UNITRONIC® SENSOR FD

Highly flexible, halogen-free power chain cable for sensor/actuator cabling

Cables supplied by the metre for sensor/actuator cabling in harsh environments. Suitable for use in drag chains, halogen-free, for connection to M8, M12 connectors.

For increased mechanical stress and harsh operating conditions

UV-resistant Power chain Halogen-free Automation & fältinstallation Flame-retardant

Benefits

  • Designs for highly flexible use
  • Abrasion-resistant
  • Wear-resistant
  • Space-saving due to compact dimensions

Application range

  • Automation technology
  • Sensor/actuator cabling
  • Mechanical and plant engineering
  • Assembly and production lines

Product features

  • UV-resistant
  • Halogen-free according to VDE 0472-815
  • flame-retardant according to IEC UL 1581 FT-2
  • Suitable for drag chains
  • Designed for 4 million alternating bending cycles and travel distances up to 10 m

Norm references / Approvals

  • UL AWM Style 20549

Product Make-up

  • Extra-fine wire strand made of bare copper wires
  • Core insulation: PP
  • Core colours:
    3-pin: bn, bu, bk
    4-pin: bn, wh, bu, bk
    5-pin: bn, wh, bu, bk, gy
    8-pin: bn, wh, gn, ye, gy, pk, bu, rd
  • Outer sheath: PUR, black

Classification

  • ETIM 5.0 Class-ID: EC001578
  • ETIM 5.0 Class-Description: Flexible cable

Peak operating voltage

  • 300 V (not for power applications)

Conductor stranding

  • Extra-fine wire according to VDE 0295, class 6 / IEC 60228 class 6

Minimum bending radius

  • Fixed installation: 5 x outer diameter
  • Flexing: 10 x outer diameter

Temperature range

  • Flexing: -25°C to +80°C
  • Fixed installation: -40°C to +80°C
Article number Article designation Dimensions (mm²) Outer diameter (mm) Core/outer sheath material Colour Copper index (kg/km)
UNITRONIC® SENSOR FD
7038883 Lif9Y11Y 3×0.25 4,4 PP/PUR black 7,5
7038884 Lif9Y11Y 4×0.25 4,7 PP/PUR black 10,2
7038867 Lif9Y11Y 5 x 0.25 4,7 PP/PUR black 12
7038868 Lif9Y11Y 8 x 0.25 5,9 PP/PUR black 19
7038864 Lif9Y11Y 3 x 0.34 4,6 PP/PUR black 9,8
7038865 Lif9Y11Y 4 x 0.34 4,7 PP/PUR black 13
7038866 Lif9Y11Y 5 x 0.34 5,1 PP/PUR black 16
UNITRONIC® SENSOR FD – optimised
7038889 Lif9Y11Y 3×0.25 3,6 PP/PUR black 7,5
7038890 Lif9Y11Y 4×0.25 3,8 PP/PUR black 10,2
7038893 Lif9Y11Y 5 x 0.34 4,5 PP/PUR black 16
UNITRONIC® SENSOR FD shielded
7038885 Lif9YC11Y 3 x 0.34 4,3 PP/PUR black 19,1
7038886 Lif9YC11Y 4 x 0.34 4,6 PP/PUR black 23,5
7038887 Lif9YC11Y 5 x 0.34 5 PP/PUR black 27,5
