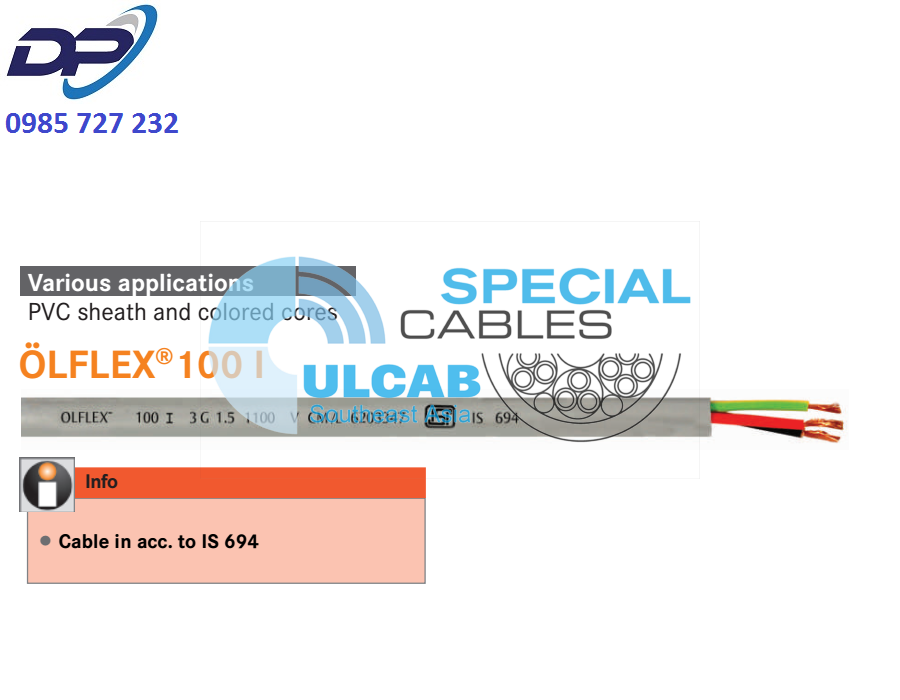

ÖLFLEX® 100 I

• Cable in acc. to IS 694

• product information (PDF)

Application range

• Plant engineering and construction industrial machinery
• Power circuit for air conditioning installation
• Main power circuit from metering room to individual aparments
• Dry or damp interiors under medium mechanical load conditions
• Fixed installation

Design – 100 I

• Bare copper, multi-stranded class 5, in acc. to IS 8130-1984, IEC 60228
• PVC Type A compound as per IS 5831-1984  with additional LAPP special properties
• Color code:
• 2 core: red, black
• 3 core (with gnye): red, black, gnye

• 3 core (w/o gnye): red, yellow, blue

• 4 core (with gnye): red, yellow, blue, gnye

• 4 core (w/o gnye): red, yellow, blue, black

• 5 core: red, yellow, blue, black, grey

• Outer sheath PVC Type ST1 as per IS 5831-1984

• Outer sheath colour, grey

Product Make-up

• Fine strands of bare copper wires

• PVC insulation Type A

• Cores twisted in layers

• PVC outer sheath, grey

■ Technical data

Core identification code
as per IS 694

Based on
in acc. to IS 694

Conductor stranding
fine wire acc. to 8139-1984, IEC 60228

Minimum bending radius
occasional flexing: 15 x cable diameter

Rated voltage
U0/U: 660/1100 V

Test voltage
3000 V

Protective conductor
G = with protective conductor GN/YE
X = without protective conductor

Temperature range
Fixed installation: -5°C to +70°C
