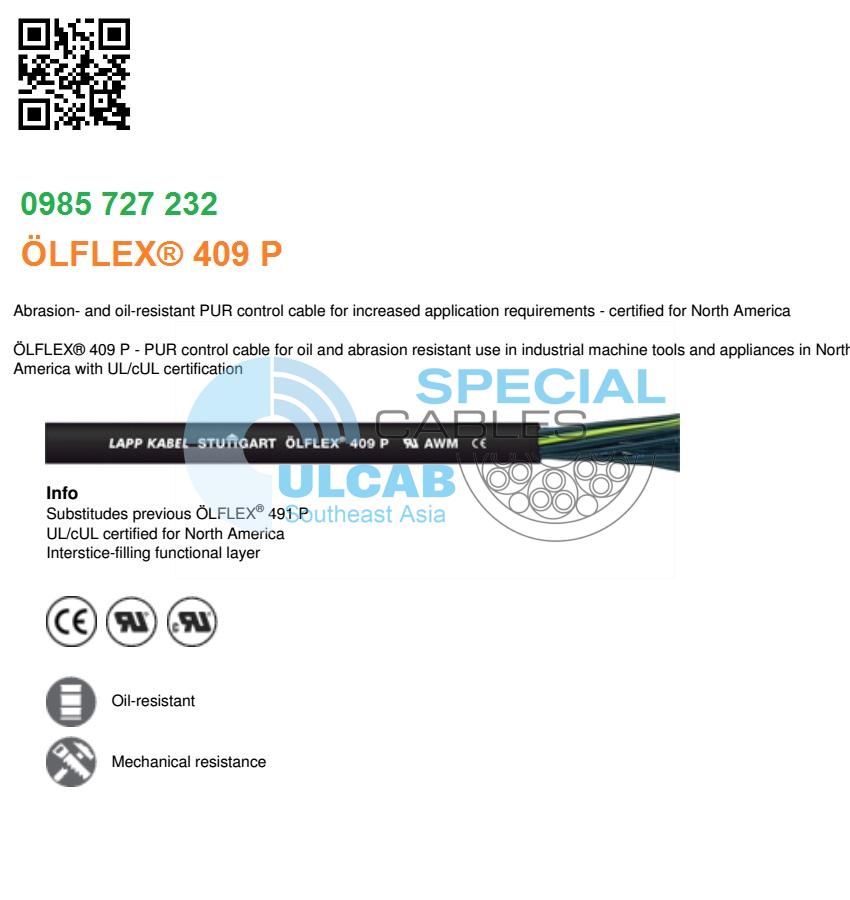

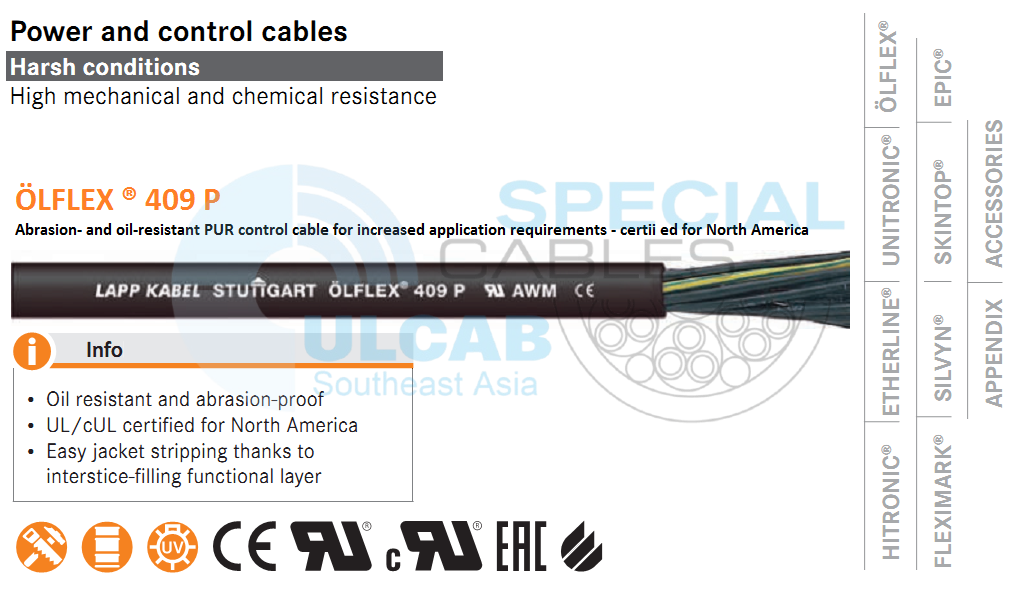

LAPP KABEL ÖLFLEX® 409 P
Abrasion-resistant and oil-resistant PUR control cable for increased application requirements – certified for North America
ÖLFLEX® 409 P – PUR control cable with UL/CSA AWM certification for oil- and abrasion-resistant use in North America in apparatus construction, in industrial machines and machine tools.
- Replaces previous ÖLFLEX® 491 P
- UL/cUL certified for North America
- Interstice-filling functional layer
Benefits
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Interstice-filling functional layer ensures more safety and efficiency during industrial stripping
- Certified for the USA and Canada for export-oriented appliance and apparatus manufacturers
Application range
- Appliance and apparatus construction
- Industrial machinery and machine tools
- Measurement, regulation and electrical applications
- Also suitable for outdoor use due to the temperature range
- Very suitable for oily wet areas within machine tools and transfer lines that are subject to normal mechanical stress
Product features
- High oil resistance
- Flame retardance:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Abrasion-resistant and notch-resistant
- Low-adhesive surface
- Resistant to hydrolysis and microbes
Norm references / approvals
- UL AWM Style 20234
- cUL AWM II A/B FT1
Design
- Fine-wire, bare copper conductor
- Core insulation: Special PVC
- Cores twisted in layers
- Special sheath made of polyurethane with interstice-filling functional layer
- Sheath colour: black (RAL 9005)
Technical Data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Flexible use: 12.5 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
- UL/CSA: 1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C (UL: +80°C)
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1311852 | 2 X 0.75 | 6,9 | 14,4 | 61 |
| 1311103 | 3 G 0.75 | 7,2 | 21,6 | 71 |
| 1311104 | 4 G 0.75 | 7,7 | 28,8 | 84 |
| 1311105 | 5 G 0.75 | 8,3 | 36 | 100 |
| 1311107 | 7 G 0.75 | 8,9 | 50,4 | 122 |
| 1311110 | 10 G 0.75 | 10,8 | 72 | 180 |
| 1311112 | 12 G 0.75 | 11,1 | 86,4 | 198 |
| 1311118 | 18 G 0.75 | 12,8 | 129,6 | 275 |
| 1311125 | 25 G 0.75 | 14,5 | 180 | 364 |
| 1311902 | 2 X 1 | 7,2 | 19,2 | 69 |
| 1311203 | 3 G 1 | 7,5 | 28,8 | 81 |
| 1311204 | 4 G 1 | 8 | 38,4 | 97 |
| 1311205 | 5 G 1 | 8,7 | 48 | 117 |
| 1311207 | 7 G 1 | 9,3 | 67,2 | 142 |
| 1311210 | 10 G 1 | 11,4 | 96 | 212 |
| 1311212 | 12 G 1 | 11,7 | 115,2 | 234 |
| 1311218 | 18 G 1 | 13,5 | 172,8 | 327 |
| 1311225 | 25 G 1 | 15,4 | 240 | 437 |
| 1311952 | 2 X 1.5 | 7,8 | 28,8 | 87 |
| 1311303 | 3 G 1.5 | 8,2 | 43,2 | 104 |
| 1311304 | 4 G 1.5 | 8,8 | 57,6 | 126 |
| 1311305 | 5 G 1.5 | 9,5 | 72 | 151 |
| 1311307 | 7 G 1.5 | 10,2 | 100,8 | 188 |
| 1311312 | 12 G 1.5 | 13 | 172,8 | 314 |
| 1311318 | 18 G 1.5 | 15 | 259,2 | 441 |
| 1311325 | 25 G 1.5 | 17,2 | 360 | 596 |
| 1311403 | 3 G 2.5 | 9,5 | 72 | 151 |
| 1311404 | 4 G 2.5 | 10,2 | 96 | 184 |
| 1311405 | 5 G 2.5 | 11,1 | 120 | 224 |
| 1311407 | 7 G 2.5 | 12 | 168 | 282 |
| 1311412 | 12 G 2.5 | 15,5 | 288 | 480 |
| 1311504 | 4 G 4 | 11,8 | 153,6 | 266 |
| 1311505 | 5 G 4 | 12,9 | 192 | 325 |
| 1311604 | 4 G 6 | 13,1 | 230,4 | 359 |
| 1311605 | 5 G 6 | 14,3 | 288 | 438 |
| 1311704 | 4 G 10 | 16,5 | 384 | 585 |
| 1311705 | 5 G 10 | 18,2 | 480 | 722 |
| 1311804 | 4 G 16 | 19,1 | 614,4 | 861 |
| 1311805 | 5 G 16 | 22,1 | 768 | 1107 |
