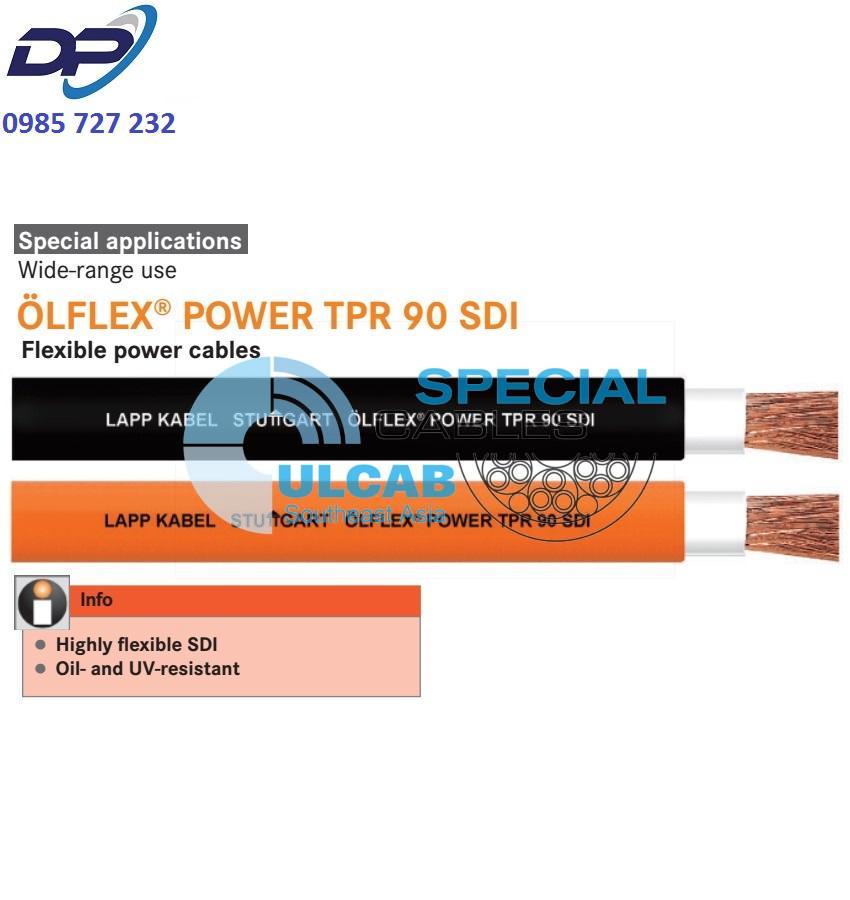

ÖLFLEX® POWER TPR 90 SDI
Flexible power cables

Benefits

  • Ideal alternative for H07RN-F with improve characteristics
  • Highly flexible single core dual insulation

Application range

  • Connection of electrical equipment, drills, boilers, etc.
  • For transportable motors or machines
  • Suitable for power application

Product features

  • Flame retardant acc. to AS/NZS 1660.5.6 resp. to IEC 60332-1-2
  • Oil resistant acc. to IEC 60811-2-1
  • UV-resistant outer sheath for outdoor application
  • Also available in gnye color but in single insulation only

Product Make-up

  • Extra fine strands of bare copper wires
  • TPR core insulation
  • TPR outer sheath, black or orange

Technical data

Core identification code
white
Based on
AS/NZS 5000.1
Specific insulation resistance
> 20 GOhm x cm
Conductor stranding
Extra fine wire acc. to AS/NZS 1125 Cl.6 /
IEC 60228 Cl.6
Minimum bending radius
occasional flexing: 15 x cable diameter
fixed installation: 5 x cable diameter
Nominal voltage
U0/U: 600/1000 V
Test voltage
3500 V
Temperature range
-30°C to +90°C

Article number Conductor cross-section Outer diameter (mm) Colour Copper index (kg/km) Weight (kg/km)
3801449 2,5 7,2 orange 24 75
3801797 2,5 7,2 black 24 75
3801450 4 7,9 orange 38,4 96
3801780 4 7,9 black 38,4 96
3801451 6 8,5 orange 57,6 125
3801781 6 8,5 black 58 125
3801452 10 9,4 orange 96 181
3801782 10 9,4 black 96 181
3801453 16 10,6 orange 153,6 260
3801783 16 10,6 black 154 260
3801454 25 12,5 orange 240 385
3801784 25 12,5 black 240 385
3801455 35 13,8 orange 336 513
3801785 35 13,8 black 336 513
3801456 50 15,4 orange 480 714
3801786 50 15,4 black 480 714
3801457 70 17,2 orange 672 964
3801787 70 17,2 black 672 964
3801458 95 19,5 orange 912 1297
3801788 95 19,5 black 912 1297
3801459 120 21,8 orange 1,152.0 1614
3801789 120 21,8 black 1,152.0 1614
3801460 150 23,9 orange 1,440.0 2000
3801790 150 23,9 black 1,440.0 2000
3801461 185 26,3 orange 1,776.0 2457
3801791 185 26,3 black 1,776.0 2457
3801462 240 29,3 orange 2,301.0 3175
3801792 240 29,3 black 2,301.0 3175
3801463 300 33 orange 2,880.0 3947
3801793 300 33 black 2,880.0 3947
3801464 400 38 orange 3,840.0 5200
3801794 400 38 black 3,840.0 5200
3801465 500 42,1 orange 4,800.0 6494
3801795 500 42,1 black 4,800.0 6494
3801466 630 47,2 orange 6,048.0 8268
3801796 630 47,2 black 6,048.0 8268
