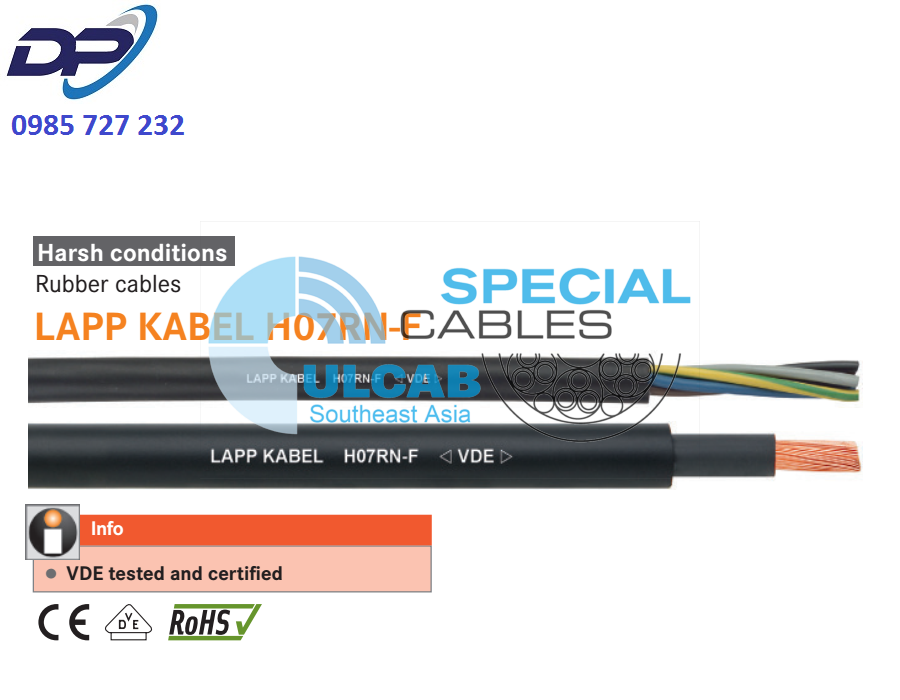

ÖLFLEX® H07RN-F
- VDE tested and certified
- product information (PDF)
■ Application range
- Hand-held and power supply devices
- For dry and damp interiors, as well as for limited outdoor use
- Light & sound technology
- Heavy-duty rubber-sheath cable
- High stresses
■ Product features
- Flame retardant acc. to IEC 60332-1-2
■ Product Make-up
- Fine strands of bare copper wires
- Rubber type EI4 core insulation
- Rubber type EM2 outer sheath, black
■ Technical data
Core identification code
acc. to VDE 0293-308
Approvals
VDE 0282 Part 4
Specific insulation resistance
1 GOhm x cm
Conductor stranding
Fine wire acc. to IEC 60228 / VDE 0295 Cl.5
Minimum bending radius
6 x cable diameter
Nominal voltage
U0/U: 450/750 V
Test voltage
2500 V
Protective conductor
G = with protective conductor GN/YE
X = without protective conductor
Temperature range
-25°C to +60°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 3807100 | 1,5 | 5.7 – 7.1 | 14,4 | 50 |
| 3807101 | 2,5 | 6.3 – 7.9 | 24 | 65 |
| 3807102 | 4 | 7.2 – 9.0 | 38 | 115 |
| 3807103 | 6 | 7.9 – 9.8 | 58 | 142 |
| 3807104 | 10 | 9.5 – 11.9 | 96 | 219 |
| 3807105 | 16 | 10.8 – 13.4 | 154 | 302 |
| 3807106 | 25 | 12.7 – 15.8 | 240 | 436 |
| 3807107 | 35 | 14.3 – 17.9 | 336 | 567 |
| 3807108 | 50 | 16.5 – 20.6 | 480 | 790 |
| 3807109 | 70 | 18.6 – 23.3 | 672 | 1050 |
| 3807110 | 95 | 20.8 – 26.0 | 912 | 1350 |
| 3807111 | 120 | 22.8 – 28.6 | 1,152.0 | 1650 |
| 3807112 | 150 | 25.2 – 31.4 | 1,440.0 | 2050 |
| 3807113 | 185 | 27.6 – 34.4 | 1,776.0 | 2450 |
| 3807114 | 240 | 30.6 – 38.3 | 2,304.0 | 3200 |
| 3807115 | 300 | 33.5 – 41.9 | 2,880.0 | 3900 |
| 3807120 | 2 X 1.0 | 7.7 – 10.0 | 19,2 | 95 |
| 3807121 | 2 X 1.5 | 8.5 – 11.0 | 29 | 115 |
| 3807122 | 2 X 2.5 | 10.2 – 13.1 | 48 | 140 |
| 3807123 | 2 X 4.0 | 11.8 – 15.1 | 77 | 302 |
| 3807124 | 2 X 6.0 | 13.1 – 16.8 | 115,2 | 400 |
| 3807125 | 2 X 10.0 | 17.7 – 22.6 | 205 | 750 |
| 3807126 | 2 X 16.0 | 20.2 – 25.7 | 307,2 | 990 |
| 3807127 | 2 X 25.0 | 24.3 – 30.7 | 504 | 1400 |
| 3807140 | 3 G 1.0 | 8.3 – 10.7 | 29 | 115 |
| 3807141 | 3 G 1.5 | 9.2 – 11.9 | 43 | 140 |
| 3807142 | 3 G 2.5 | 10.9 – 14.0 | 72 | 200 |
| 3807143 | 3 G 4.0 | 12.7 – 16.2 | 115 | 360 |
| 3807144 | 3 G 6.0 | 14.1 – 18.0 | 173 | 490 |
| 3807145 | 3 G 10.0 | 19.1 – 24.2 | 288 | 900 |
| 3807146 | 3 G 16.0 | 21.8 – 27.6 | 461 | 1200 |
| 3807147 | 3 G 25.0 | 26.1 – 33.0 | 757 | 1700 |
| 3807148 | 3 G 35.0 | 29.3 – 37.1 | 1,008.0 | 2200 |
| 3807149 | 3 G 50.0 | 34.1 – 42.9 | 1,440.0 | 3100 |
| 3807150 | 3 G 70.0 | 38.4 – 48.3 | 2,016.0 | 4130 |
| 3807151 | 3 G 95.0 | 43.3 – 54.0 | 2,736.0 | 5300 |
| 3807152 | 3 G 120.0 | 47.4 – 60.0 | 3,456.0 | 6200 |
| 3807160 | 4 G 1.0 | 9.2 – 11.9 | 38,4 | 140 |
| 3807161 | 4 G 1.5 | 10.2 – 13.1 | 58 | 170 |
| 3807162 | 4 G 2.5 | 12.1 – 15.5 | 96 | 245 |
| 3807163 | 4 G 4.0 | 14.0 – 17.9 | 154 | 460 |
| 3807164 | 4 G 6.0 | 15.7 – 20.0 | 230 | 610 |
| 3807165 | 4 G 10.0 | 20.9 – 26.5 | 384 | 1100 |
| 3807166 | 4 G 16.0 | 23.8 – 30.1 | 614 | 1500 |
| 3807167 | 4 G 25.0 | 28.9 – 36.6 | 960 | 2310 |
| 3807168 | 4 G 35.0 | 32.5 – 41.1 | 1,344.0 | 2800 |
| 3807169 | 4 G 50.0 | 37.7 – 47.5 | 1,920.0 | 3910 |
| 3807170 | 4 G 70.0 | 42.7 – 54.0 | 2,688.0 | 5200 |
| 3807171 | 4 G 95.0 | 48.4 – 61.0 | 3,648.0 | 6320 |
| 3807172 | 4 G 120.0 | 53.0 – 66.0 | 4,608.0 | 6830 |
| 3807173 | 4 G 150.0 | 58.0 – 73.0 | 5,760.0 | 8320 |
| 3807174 | 4 G 185.0 | 64.0 – 80.0 | 7,104.0 | 9800 |
| 3807175 | 4 G 240.0 | 72.0 – 91.0 | 9,216.0 | 12000 |
| 3807180 | 5 G 1.0 | 10.2 – 13.1 | 48 | 158 |
| 3807181 | 5 G 1.5 | 11.2 – 14.4 | 72 | 210 |
| 3807182 | 5 G 2.5 | 13.3 – 17.0 | 120 | 305 |
| 3807183 | 5 G 4.0 | 15.6 – 19.9 | 192 | 560 |
| 3807184 | 5 G 6.0 | 17.5 – 22.2 | 288 | 750 |
| 3807185 | 5 G 10.0 | 22.9 – 29.1 | 480 | 1300 |
| 3807186 | 5 G 16.0 | 26.4 – 33.3 | 768 | 1800 |
| 3807187 | 5 G 25.0 | 32.0 – 40.4 | 1,200.0 | 2600 |
| 3807190 | 7 G 1.5 | 14.0 – 17.5 | 101 | 335 |
| 3807191 | 7 G 2.5 | 16.5 – 20.0 | 168 | 475 |
| 3807192 | 12 G 1.5 | 17.6 – 22.4 | 173 | 495 |
| 3807193 | 12 G 2.5 | 20.6 – 26.2 | 288 | 710 |
| 3807194 | 18 G 1.5 | 20.7 – 26.3 | 259,2 | 700 |
| 3807195 | 18 G 2.5 | 24.4 – 30.9 | 432 | 1100 |
| 3807196 | 24 G 1.5 | 24.3 – 30.7 | 346 | 882 |
| 3807197 | 24 G 2.5 | 28.8 – 36.4 | 576 | 1650 |
| 3807198 | 36 G 1.5 | 27.8 – 35.2 | 504 | 1055 |
| 3807199 | 36 G 2.5 | 33.2 – 41.8 | 823 | 1940 |
