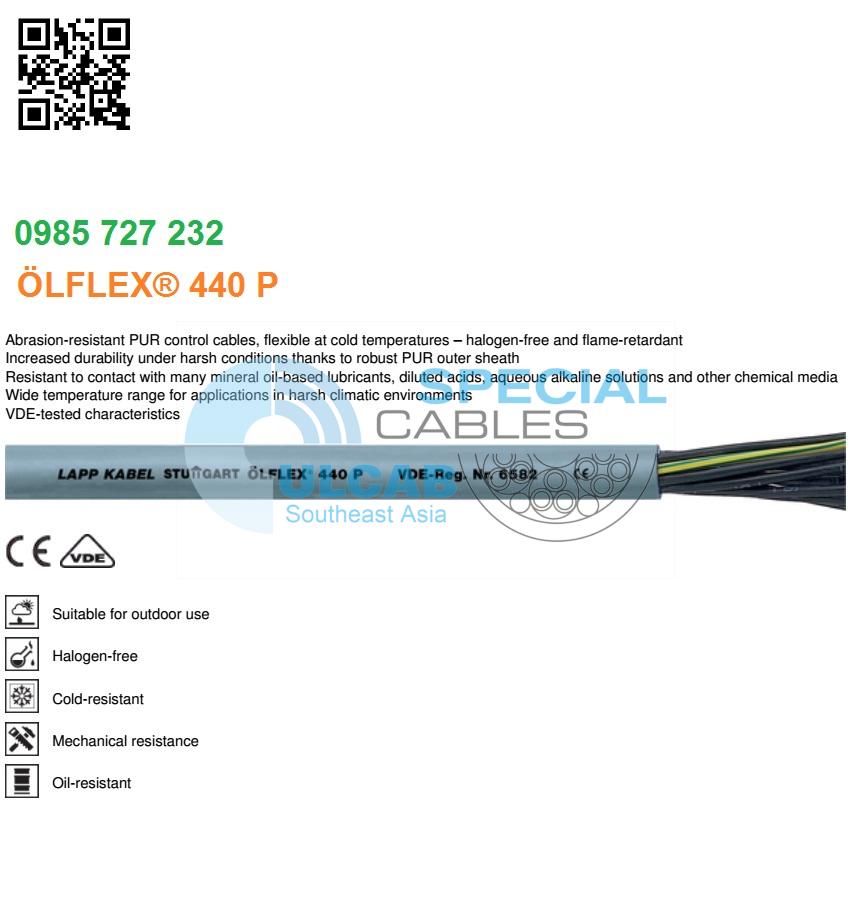

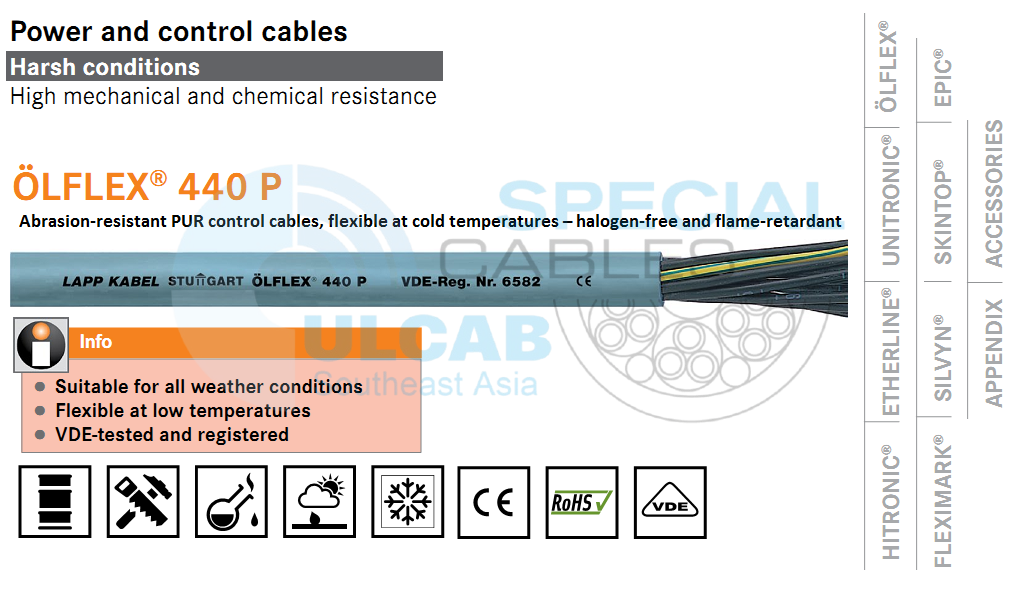

LAPP KABEL ÖLFLEX® 440 P
Abrasion-resistant, oil-resistant all-weather control cable with TPE core insulation and PUR sheath – VDE certified
ÖLFLEX® 440 P – PUR control cables, VDE registered for indoor and outdoor use in harsh conditions – flexible at cold temperatures, abrasion-resistant, flame-retardant and halogen-free.
- Flexible at temperatures down to -40 °C
- Halogen-free and flame-retardant
- VDE-tested and registered
Benefits
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- VDE-tested characteristics
Application range
- Industrial machinery and machine tools
- Very suitable for oily wet areas within machine tools and transfer lines that are subject to normal mechanical stress
- Construction machinery
- Agricultural equipment
- For indoor and outdoor use
Product features
- Resistant to oil and drilling fluids according to IEC 61892-4, appendix D
- Abrasion-resistant and notch-resistant
- Halogen-free and flame-retardant (IEC 60332-1-2)
- Resistant to hydrolysis and microbes
- Flexible at temperatures down to -40 °C
Norm references / approvals
- VDE reg. no. 6582
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of TPE
- Cores twisted in layers
- Special polyurethane sheath (PUR)
- Sheath colour: Silver grey (RAL 7001)
Technical Data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 12.5 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -40°C to +90°C
- Fixed installation: -50°C to +90°C
| Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® 440 P | ||||
| 0012800 | 2 X 0.5 | 5,8 | 10 | 39 |
| 0012801 | 3 G 0.5 | 6,1 | 14 | 46 |
| 0012802 | 4 G 0.5 | 6,6 | 19 | 53 |
| 0012803 | 5 G 0.5 | 7,3 | 24 | 65 |
| 0012804 | 7 G 0.5 | 8,8 | 34 | 92 |
| 0012805 | 12 G 0.5 | 10,9 | 58 | 149 |
| 0012806 | 18 G 0.5 | 12,9 | 86 | 207 |
| 0012807 | 25 G 0.5 | 15,7 | 120 | 274 |
| 0012813 | 2 X 0.75 | 6,2 | 14 | 48 |
| 0012814 | 3 G 0.75 | 6,5 | 22 | 53 |
| 0012815 | 4 G 0.75 | 7,1 | 29 | 67 |
| 0012816 | 5 G 0.75 | 8 | 36 | 81 |
| 0012817 | 7 G 0.75 | 9,7 | 50 | 119 |
| 0012818 | 12 G 0.75 | 11,7 | 86 | 193 |
| 0012819 | 18 G 0.75 | 14,1 | 130 | 269 |
| 0012820 | 25 G 0.75 | 17,1 | 180 | 378 |
| 0012825 | 2 X 1 | 6,5 | 19 | 57 |
| 0012826 | 3 G 1 | 6,9 | 29 | 61 |
| 0012827 | 4 G 1 | 7,7 | 38 | 82 |
| 0012828 | 5 G 1 | 8,4 | 48 | 107 |
| 0012829 | 7 G 1 | 10,2 | 67 | 138 |
| 0012830 | 12 G 1 | 12,6 | 115 | 215 |
| 0012831 | 18 G 1 | 14,9 | 173 | 328 |
| 0012832 | 25 G 1 | 18,1 | 240 | 479 |
| 0012833 | 34 G 1 | 20,6 | 326 | 616 |
| 0012834 | 41 G 1 | 22,4 | 394 | 727 |
| 0012837 | 2 X 1.5 | 7,1 | 29 | 73 |
| 0012838 | 3 G 1.5 | 7,5 | 43 | 96 |
| 0012839 | 4 G 1.5 | 8,4 | 58 | 105 |
| 0012840 | 5 G 1.5 | 9,4 | 72 | 133 |
| 0012841 | 7 G 1.5 | 11,4 | 101 | 175 |
| 0012842 | 12 G 1.5 | 14 | 173 | 309 |
| 0012843 | 18 G 1.5 | 16,6 | 259 | 458 |
| 0012844 | 25 G 1.5 | 20,1 | 360 | 635 |
| 0012846 | 41 G 1.5 | 25,1 | 590 | 1003 |
| 0012850 | 3 G 2.5 | 9,2 | 72 | 142 |
| 0012851 | 4 G 2.5 | 10 | 96 | 184 |
| 0012852 | 5 G 2.5 | 11,2 | 120 | 220 |
| 0012853 | 7 G 2.5 | 13,8 | 168 | 294 |
| 0012854 | 12 G 2.5 | 16,9 | 288 | 489 |
