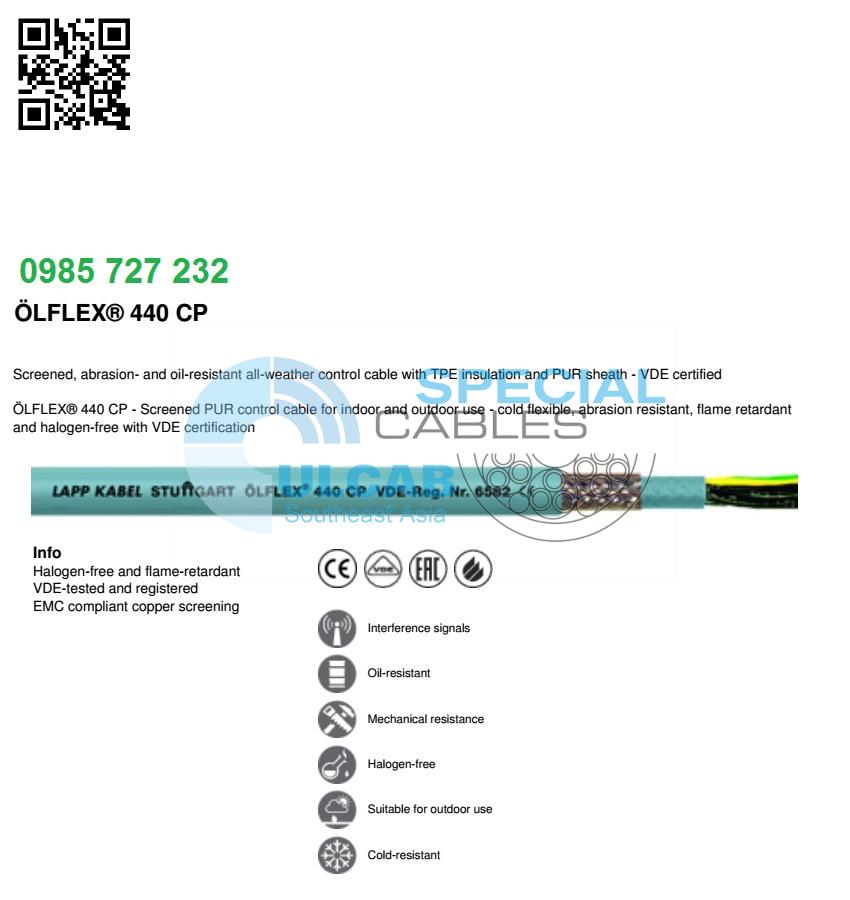

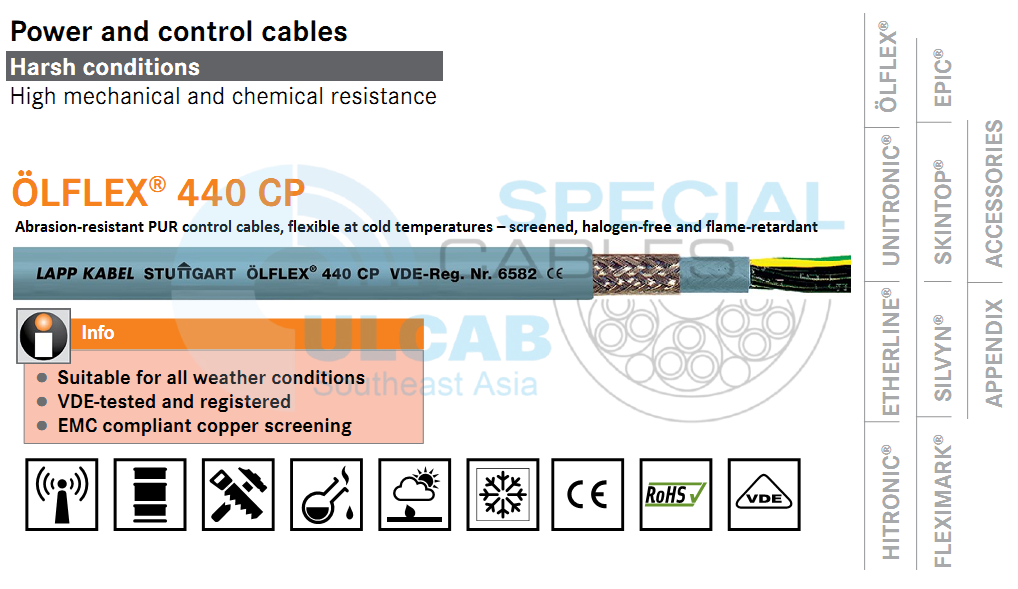

LAPP KABEL ÖLFLEX® 440 CP
Shielded, abrasion- and oil-resistant all-weather control cable with TPE insulation and PUR sheath – VDE certified
ÖLFLEX® 440 CP – shielded PUR control cables, VDE reg. for indoor and outdoor use in harsh conditions – flexible at cold temperatures, abrasion-resistant, flame-retardant and halogen-free.
- Halogen-free and flame-retardant
- VDE-tested and registered
- EMC-compliant copper shielding
Benefits
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- Additional robustness thanks to inner sheath
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
Application range
- Industrial machinery and machine tools
- Very suitable for oily wet areas within machine tools and transfer lines that are subject to normal mechanical stress
- Construction machinery
- Agricultural equipment
- For indoor and outdoor use
Product features
- Resistant to oil and drilling fluids according to IEC 61892-4, appendix D
- Abrasion-resistant and notch-resistant
- Halogen-free and flame-retardant (IEC 60332-1-2)
- Resistant to hydrolysis and microbes
- Flexible at cold temperatures
Norm references / approvals
- VDE reg. no. 6582
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of TPE
- Cores twisted in layers
- Inner sheath made of TPE
- Tin-plated copper braiding
- Special polyurethane sheath (PUR)
- Sheath colour: Silver grey (RAL 7001)
Technical Data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x cable diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -40°C to +90°C
- Fixed installation: -50°C to +90°C
| Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® 440 CP | ||||
| 0012901 | 3 G 0.5 | 8,3 | 44 | 100 |
| 0012902 | 4 G 0.5 | 8,8 | 52 | 120 |
| 0012903 | 5 G 0.5 | 9,7 | 61 | 139 |
| 0012904 | 7 G 0.5 | 11,2 | 75 | 175 |
| 0012906 | 12 G 0.5 | 13,7 | 131 | 276 |
| 0012907 | 18 G 0.5 | 15,7 | 168 | 376 |
| 0012908 | 25 G 0.5 | 18,5 | 212 | 485 |
| 0012911 | 2 X 0.75 | 8,4 | 45 | 104 |
| 0012912 | 3 G 0.75 | 8,7 | 52 | 119 |
| 0012913 | 4 G 0.75 | 9,5 | 67 | 126 |
| 0012914 | 5 G 0.75 | 10,2 | 75 | 165 |
| 0012915 | 7 G 0.75 | 11,9 | 96 | 210 |
| 0012917 | 12 G 0.75 | 14,5 | 160 | 331 |
| 0012919 | 25 G 0.75 | 20,3 | 283 | 596 |
| 0012925 | 2 X 1 | 8,7 | 49 | 117 |
| 0012926 | 3 G 1 | 9,3 | 60 | 132 |
| 0012927 | 4 G 1 | 9,9 | 78 | 163 |
| 0012928 | 5 G 1 | 10,8 | 88 | 187 |
| 0012929 | 7 G 1 | 12,8 | 115 | 255 |
| 0012931 | 12 G 1 | 15,4 | 201 | 419 |
| 0012932 | 18 G 1 | 17,7 | 267 | 546 |
| 0012933 | 25 G 1 | 21,5 | 351 | 738 |
| 0012934 | 34 G 1 | 23,8 | 498 | 972 |
| 0012940 | 2 X 1.5 | 9,5 | 68 | 122 |
| 0012941 | 3 G 1.5 | 9,9 | 83 | 140 |
| 0012942 | 4 G 1.5 | 10,8 | 102 | 170 |
| 0012943 | 5 G 1.5 | 11,6 | 119 | 200 |
| 0012944 | 7 G 1.5 | 14,2 | 186 | 290 |
| 0012945 | 12 G 1.5 | 16,8 | 264 | 423 |
| 0012946 | 18 G 1.5 | 20 | 379 | 616 |
| 0012947 | 25 G 1.5 | 23,5 | 534 | 804 |
| 0012949 | 41 G 1.5 | 28,9 | 803 | 1360 |
| 0012950 | 3 G 2.5 | 11,4 | 121 | 194 |
| 0012951 | 4 G 2.5 | 12,6 | 145 | 307 |
| 0012952 | 5 G 2.5 | 14 | 205 | 413 |
| 0012953 | 7 G 2.5 | 16,4 | 259 | 533 |
| 0012954 | 12 G 2.5 | 20,1 | 407 | 795 |
