New

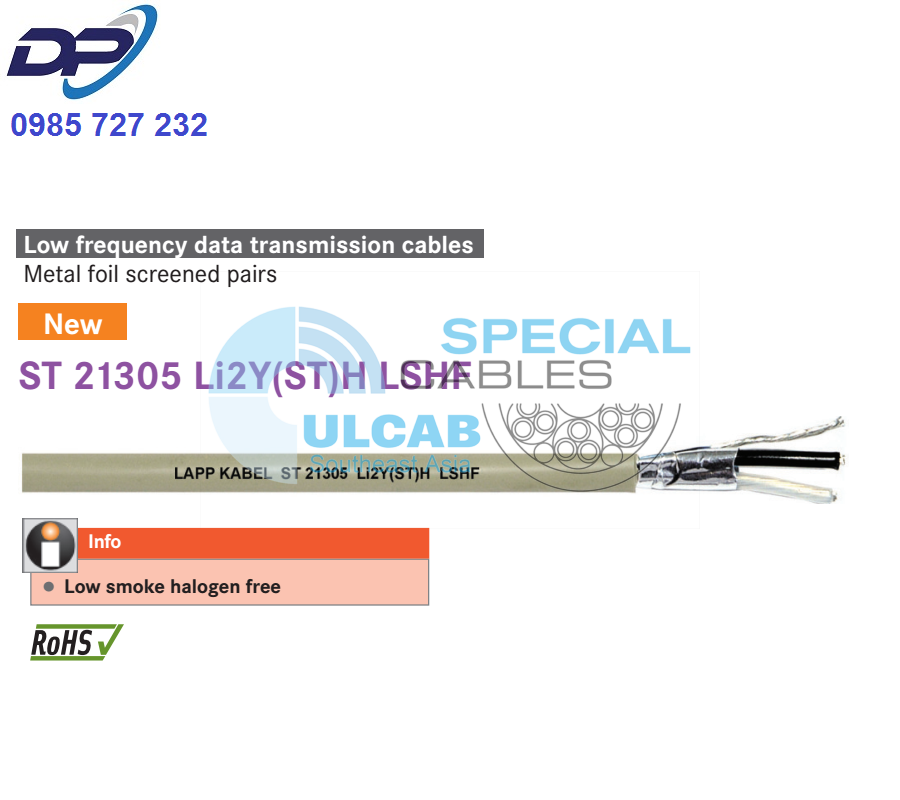

UNITRONIC® ST 21305 Li2Y(ST)H LSHF
- Low smoke halogen free
- product information (PDF)
■ Application range
- Internal wiring for audio, control signal and instrument measurement
- For static laying in dry and damp environment
- Where in any case of fire, minimum formation of toxic gas is formed as protection of human life is vital
■ Product features
- 100% screen coverage, offers optimum protection against external interference at medium and high frequencies
- Low smoke halogen free outer sheath
- Flame retardant in acc. to IEC 60332-1-2
■ Approvals (Norm references)
- Based on UL AWM Style 21305
■ Product Make-up
- Stranded tinned copper wires
- PE core insulation
- Cores twisted together
- Aluminium foil screening
- Tinned copper drain wire
- LSHF outer sheath
- Colour: pebble grey, RAL 7032
■ Technical data
Core identification code
Black/Natural
Mutual capacitance
C/C: nom. 79 pF/m (1 kHz)
C/C: nom. 154 pF/m (1 kHz)
Peak operating voltage
300 V (not for power applications)
Specific insulation resistance
> 2 GOhm x km
Inductivity
nom. 0.65 mH/km
Minimum bending radius
10 x cable diameter
Test voltage
1000 V
Characteristic impedance
100 Ohm
Temperature range
-30°C to +60°C
| Article number | Number of pairs and AWG per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ST 21305 Li2Y(ST)H LSHF | ||||
| 3803115 | 1 x 2 x 22 AWG | 4,5 | 10,3 | 29 |
| 3803116 | 1 x 2 x 20 AWG | 5,2 | 16,2 | 38,8 |
| 3803117 | 1 x 2 x 18 AWG | 5,65 | 20,7 | 46,2 |
| 3803118 | 1 x 2 x 16 AWG | 6,7 | 34,5 | 67,7 |
