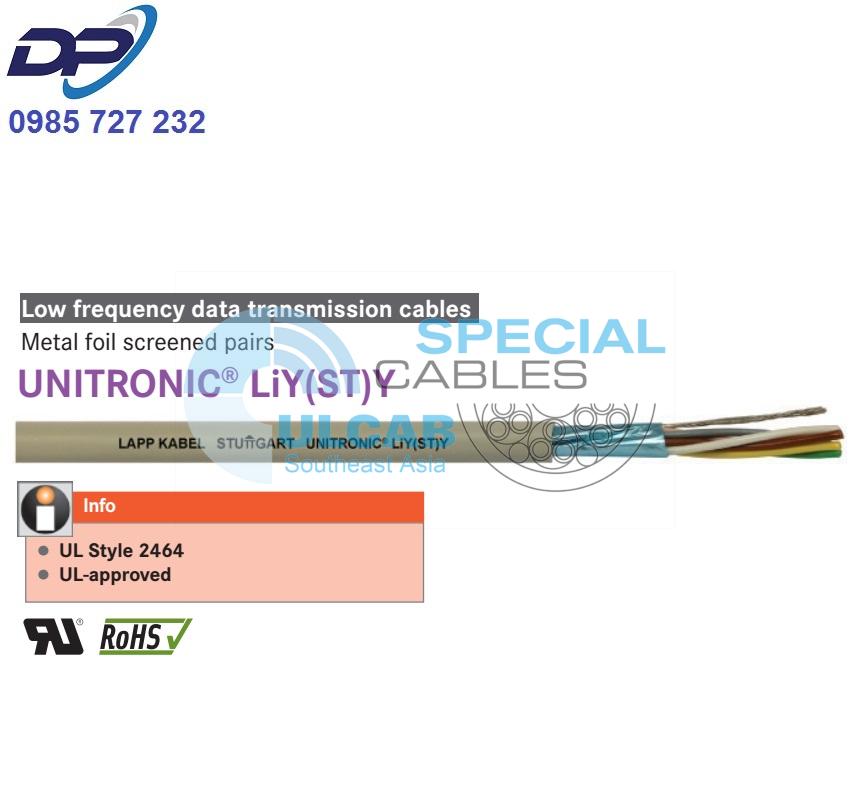

UNITRONIC® LiY(ST)Y

• UL Style 2464

• UL-approved
• product information (PDF)

■ Application range

• Suitable for use in data transmission and control measurement

• For use in dry and damp environment


■ Product features

• 100% screen coverage, offers optimum protection against external interference at medium and high frequencies

• UL-approved

• Flame retardant in acc. to IEC 60332-1-2


■ Product Make-up

• Multi-wire strands of tinned annealed copper

• Semi-Rigid PVC core insulation

• Aluminium foil screening

• Tinned copper drain wire

• PVC outer sheath pebble grey, RAL 7032

■ Technical data

Core identification code
acc. to DIN 47100
Mutual capacitance
C/C: approx. 110 pF/m
C/S: approx. 215 pF/m
Peak operating voltage
300 V (not for power applications)
Minimum bending radius
10 x cable diameter
Test voltage
1500 V
Temperature range
-30°C to +80°C
