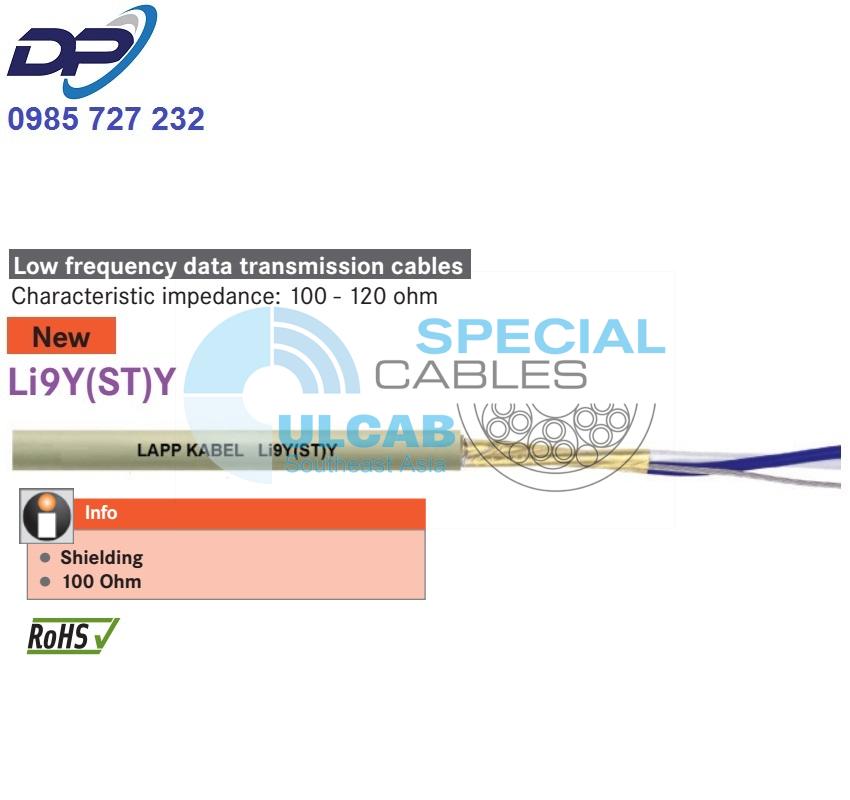

UNITRONIC® Li9Y(ST)Y

• Shielding

• 100 Ohm
• product information (PDF)

■ Application range

• Suitable for audio, control and instrumentation measurements in environments immune to noise

• For use in dry and damp environment


■ Product features

• Flame retardant in acc. to IEC 60332-1-2


■ Product Make-up

• Stranded tinned annealed copper wires

• PP core insulation

• Overall screen of Al/My tape + stranded tinned copper drain wire

• PVC outer sheath, pebble grey

■ Technical data

Core identification code
Pair #1: WH/BU Pair #2: WH/OG
Pair #3: WH/GN Pair #4: WH/BN
Pair #5: WH/GY Pair #6: RD/BU
Pair #7: RD/OG Pair #8: RD/GN
Pair #9: RD/BN Pair #10: RD/GY
Pair #11: BK/BU Pair #12: BK/OG
Pair #13: BK/GN Pair #14: BK/BN
Pair #15: BK/GY Pair #16: YE/BU
Pair #17: YE/OG Pair #18: YE/GN
Pair #19: YE/BN Pair #20: YE/GY
Pair #21: VT/BU Pair #22: VT/OG
Pair #23: VT/GN Pair #24: VT/BN
Pair #25: VT/GY
Mutual capacitance
nom. 130 pF/m, at 1 kHz
Test voltage
1000 V
Temperature range
-10°C to +80°C
Characteristic impedance
100 Ohm
